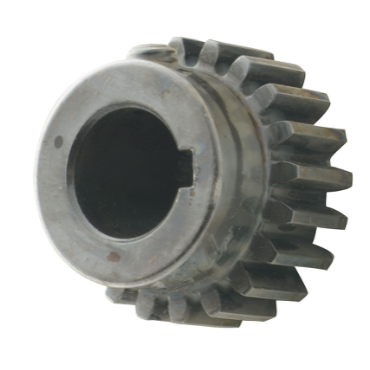

Martin S615BS 1 Steel Spur Gear Power 6 DP

Product Description

The Martin S615BS1 is a steel spur gear designed for effective mechanical power transmission. This gear features a diametral pitch of six, a pressure angle of fourteen point five degrees, and is built with a finished bore to ensure precision in applications. It contains fifteen teeth and is ideal for various industrial uses.

• Constructed from durable steel for long-lasting performance
• Compatible with a range of mechanical systems
• Offers reliable torque output at different RPMs

Product Highlights

This steel spur gear can handle high torque and various RPMs, making it suitable for demanding operational environments.

Product Information

Standard Information

• Product Type: External Tooth Spur Gears
• Origin: United States

Technical Specifications

• MPN: S615BS1
• Material: Steel
• Bore Size: 1.000 inches
• Outside Diameter: 2.83 inches
• Pitch Diameter: 2.5 inches
• Length Through Bore: 2.375 inches
• Teeth Count: 15
• Torque at 200 RPM: 945.375 lb/in
