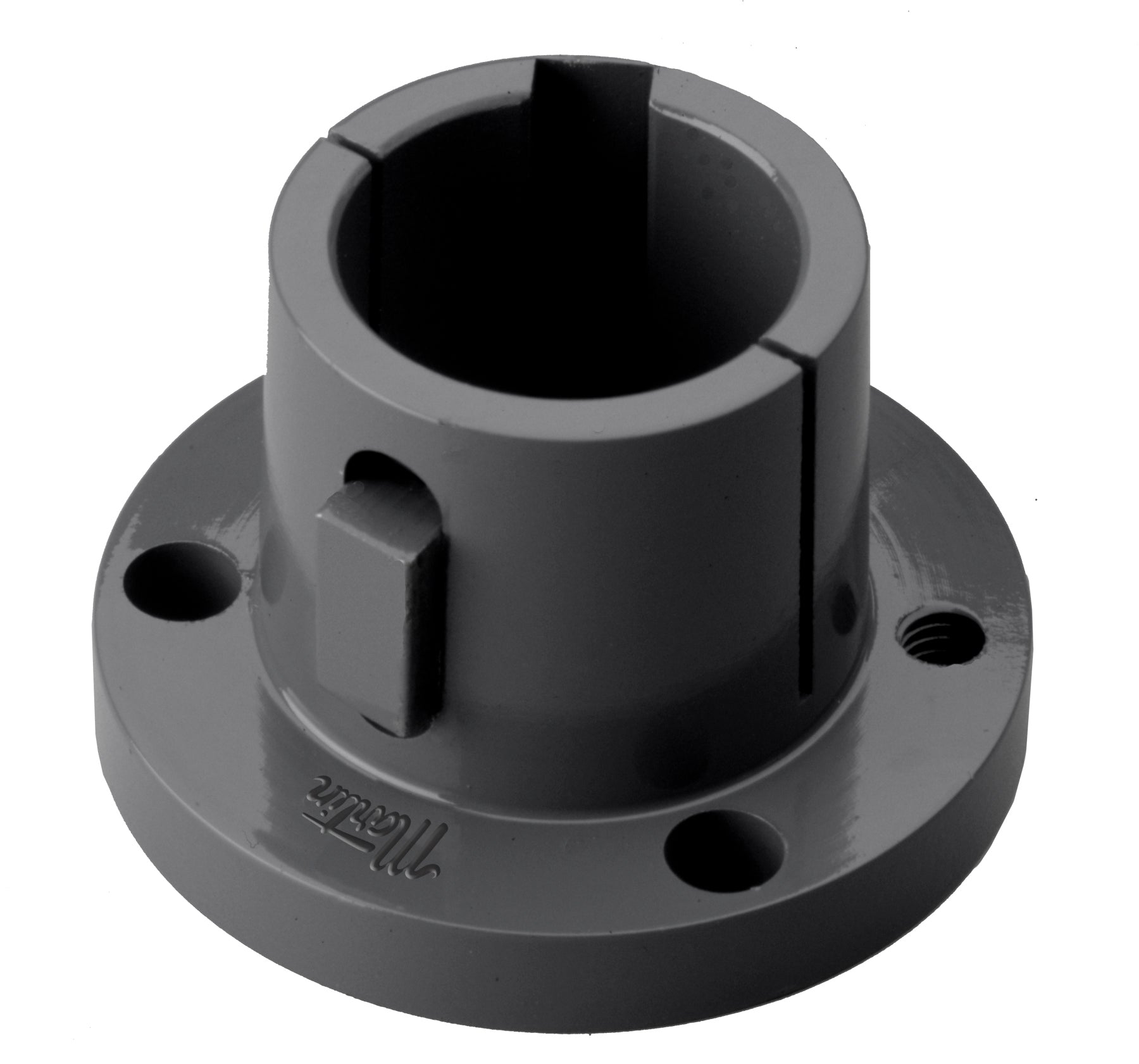

Martin Q117/16 Q1 1 7/16 Standard MST Bushing

Product Description

Martin Q1 1 7/16 MSG is a split tapered bushing used for various power transmission applications. The MPN for this product is Q117/16.

• Easy installation and removal
• Made of steel for durability
• Compatible with MST® sprockets and HQ1/HCQ1 weld-on hubs

Product Highlights

Designed for consistent performance in demanding environments, ensuring reliability in machinery.

Product Information

Standard Information

• Brand: Martin Sprocket & Gear
• Type: Standard

Technical Specifications

• Manufacturer Part Number: Q1 1 7/16
• Bore Diameter: 1-7/16 in
• Barrel Diameter: 2.7657 in Small End / 2.875 in Large End
• Flange Diameter: 4-1/8 in
• Flange Thickness: 0.53 in
• Hub Diameter: 4-1/2 in
• Overall Length: 2-1/2 in
• Keyway Size: 3/8 x 3/16 in
• Screw Size: 3/8-16 x 1-1/4 in
• Number of Bolt Holes: 3
• Bolt Circle Diameter: 3-3/8 in
• Material: Steel
• Standards/Approvals: ANSI B15.1
• Suitable for use with: MST® sprockets and HQ1/HCQ1 weld-on hubs
