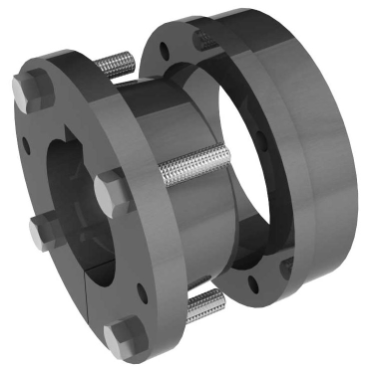

Martin MXT35215/16 Conveyor Bushing 2 15/16 in Bore Size

Product Description

Martin MXT35215/16 is a conveyor bushing designed for efficient operation in mechanical systems. This model features a bore size of two and fifteen-sixteenths inches and is made from durable cast iron. It is essential for connecting pulleys securely and ensuring smooth power transmission.

• Bore size: 2 15/16 inches
• Flange outside diameter: 6.3125 inches
• Length through the bore: 2.46875 inches

Product Highlights

This conveyor bushing is ideal for various pulley sizes. It provides strength and reliability in power transmission applications.

Product Information

Standard Information

• Brand: Martin
• Part Number: 101887877

Technical Specifications

• Bore Range [Max]: 3.5 in
• Length Through Bore: 2.46875 in
• Material: Cast Iron
• Bushing Type: MXT
• Capscrew Size: 1/2 x 1 3/4
• Inch/Metric: Inch
• Cap Screws: 4
• Keyway Size: 3/4 x 3/8
• Wrench Torque: 70 lbf
• Flange Thickness: 25/32 in
• Bore Size: 2.9375 in
• Keyway: 3/4 x 3/8
• Bolt Circle Diameter: 5 7/16 in
• Weight: 9.55 LB
• EAN or UPC: 697950854106
