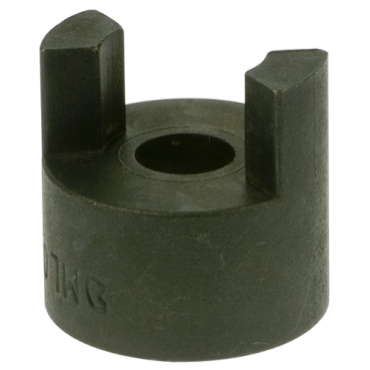

Martin ML090 3/4 Jaw Coupling Hub

Product Description

The Martin ML090 3/4 Jaw Coupling Hub is designed for effective power transmission in various applications. This coupling provides a reliable connection between shafts. The precision design ensures minimal backlash and efficient operation.

• Size: 0.75 inches bore diameter
• Material: Steel
• Type: Jaw coupling

Product Highlights

This coupling is efficient for use in mechanical systems where flexibility of alignment is necessary.

Product Information

Standard Information

• Brand: Martin
• Part Number: ML090/4

Technical Specifications

• Material: Steel
• Set Screw Size: 1/4-20 x 1/4
• Coupling Type: Jaw
• Keyway Size: 3/16 x 3/32
• Spider Material: SUL, SRL, SHL & SBL
• Coupling Size: 090
• Bore Diameter: 0.750 in - 3/4 in
• Bore Range [Max]: 1.125 in
• Lock Type: Setscrew
• Outside Diameter: 2.125 in
• Bore Type: Finished
• RPM [Max]: 9000 rpm
• Connecting Medium: Elastomeric Spider
• Hub O.D.: 2 1/8 in
• Length Through Bore: 0.813 in
• RPM: 1800 rpm
• Weight: 0.69 lb
• EAN or UPC: 697950146331
