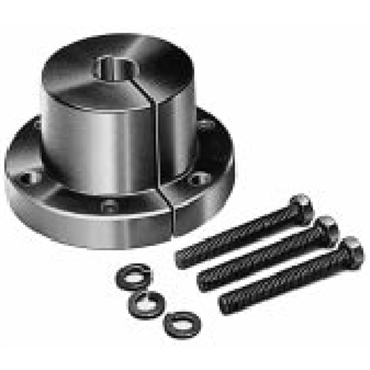

Martin E70MM Quick Disconnect Bushing - 70 mm Bore - 6 in Flg OD - Replacement MPN 120388

Product Description

The Martin E70MM Quick Disconnect Bushing is designed for various mechanical applications. This product features a bore diameter of seventy millimeters and a flange outside diameter of six inches. The cast iron material provides durability and strength.

• 70 mm bore diameter
• 6 in flange OD
• Durable cast iron material

Product Highlights

This bushing is suitable for a wide range of machinery and is easy to install.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• Weight: 6.60 lbs
• Material: Cast Iron
• Bore Type: Finished with Keyway
• Keyway Size: 20 x 12 mm
• Bushing Size: E
• Product Type: QD Bushings
• Screw Length: 2-3/4 in
• Screw Torque: 720 in-lb
• Barrel Length: 1.875 in
• Bore Diameter: 70 mm
• Mounting Type: Reverse
• Barrel Diameter: 3.834 in
• Flange Thickness: 0.75 in
• Screw Thread Size: 1/2-13 in
• Length Through Bore: 2.625 in
• Bolt Circle Diameter: 5 in
• Number Of Bolt Holes: 3
• Flange Outside Diameter: 6 in
• Manufacturer Catalog Number: 120388
