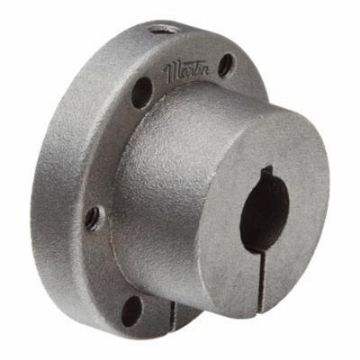

Martin E3 Standard QD Bushing 3 in

Product Description

The Martin E3 Standard QD Bushing is designed for quick and efficient mounting in various applications. This bushing features a three-in bore diameter, making it suitable for numerous configurations that require a strong yet flexible connection. It is made from ductile iron for enhanced durability and performance.

• Size E bushing
• Compatible with conventional and reverse mounting methods
• Interchangeable with other manufacturers' QD bushings

Product Highlights

This bushing offers a precision-machined design for reliability and performance.

Product Information

Standard Information

• Brand: Martin
• Manufacturer: Martin Sprocket & Gear

Technical Specifications

• Material: Ductile Iron
• Bore Diameter: 3 in
• Barrel Diameter: 3.834 in
• Flange Diameter: 6 in
• Hub Diameter: 7-1/2 in
• Overall Length: 2-5/8 in
• Flange Thickness: 3/4 in
• Torque Rating: 20000 in-lb
• Number of Bolt Holes: 3
• Screw Size: 1/2-13 x 2-3/4 in
• Keyway Size: 1/8 x 3/4 in
• Bolt Circle Diameter: 5 in
• Country of Origin: US
