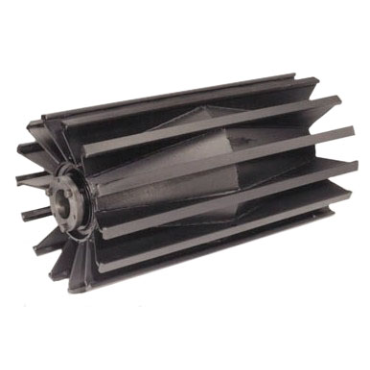

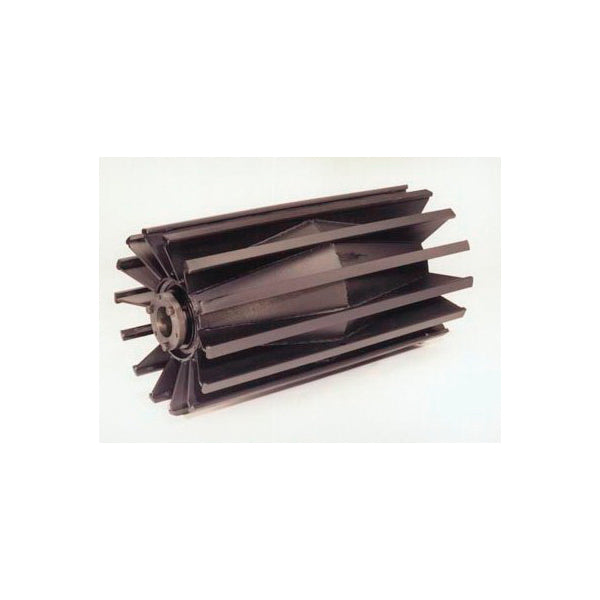

Martin CMW18044X40 Conveyor Pulley (18 in OD x 44 in Face)

Product Description

Martin CMW18044X40 is a Martin conveyor wing pulley for mine-duty conveyor applications with an 18 in outside diameter and 44 in face width and MXT40 bushing compatibility. The steel wing profile sheds material to reduce buildup while the crown face profile assists belt tracking. The pulley accepts a maximum bore/shaft diameter of 4 in, has a 1 in setback, weighs 561 lb, and is built to CEMA/NIBA standards with multiple hub/bushing options.

• Mine-duty wing pulley, 18 in outside diameter and 44 in face width with crown face profile
• MXT40 bushing series / XT40 compatibility; maximum bore or shaft diameter 4 in; 1 in setback
• Steel construction, 561 lb weight, built to CEMA/NIBA standards with multiple hub/bushing options

Product Highlights

Mine-duty steel wing pulley, 18 in OD x 44 in face, MXT40 bushing

Product Information

Standard Information

• Brand: MARTIN
• Manufacturer Part Number: CMW18044X40

Technical Specifications

• Brand: Martin
• Manufacturer Part Number (MPN): CMW18044X40
• Type: Mine Duty Wing Pulley
• Pulley Style: Wing
• Material: Steel
• Outside Diameter: 18 in
• Face Width: 44 in
• Face Type: Crown Face
• Bushing Type: MXT
• Bushing Series: MXT40
• Bushing Part Number: MXT40
• Max Bore Size: 4 in
• Shaft Diameter: 4 in
• Setback: 1 in
• Weight: 561 lb
• Standards/Approvals: CEMA/NIBA Standards
• Duty: Mine
• UPC/EAN: 697950461397
• Manufacturer: Martin Sprocket & Gear
• UNSPSC: 31163002
