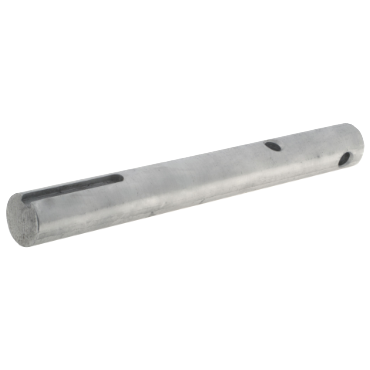

Martin CE4BB-P-H End Shaft

Product Description

The Martin CE4BB-P-H End Shaft is designed to provide support for the end section of conveyors. This end shaft is made from cold rolled steel and has a diameter of two inches with an overall length of nine and three-eighths inches. It is suitable for use with ball bearings and can accommodate product drop out seals.

• Two-inch shaft diameter
• Nine and three-eighths inch length
• Induction hardened to a hardness of RC 45-50

Product Highlights

This end shaft is jig drilled to ensure simple assembly and achieves close diametrical tolerances for optimal bearing performance.

Product Information

Standard Information

• Brand: Martin
• MPN: CE4BB-P-H

Technical Specifications

• Shaft Diameter: 2 inches
• Length: 9.375 inches
• Weight: 8.0 lbs
• Seal Type: Product Drop Out Seal, Plate Seal
• Hardened: Induction Hardened - RC 45-50
• Type: End Shaft
• Bearing Type: Ball Bearing
• EAN or UPC: 697950078885
