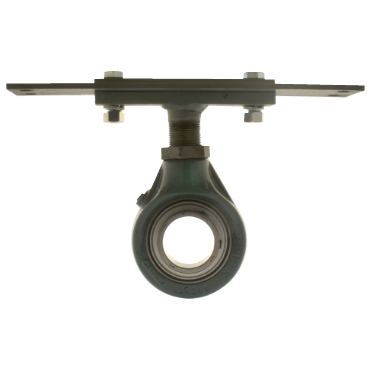

Martin 9CH604 Screw Conveyor Hangers

Product Description

The Martin 9CH604 Screw Conveyor Hangers are designed for efficient performance in conveyor systems. These hangers feature a heavy-duty design that supports a nine inch conveyor diameter and a two inch coupling diameter. They are equipped with a permanently lubricated, self-aligning ball bearing, allowing for a maximum operating temperature of two hundred forty-five degrees Fahrenheit and achieving a shaft misalignment tolerance of up to four degrees.

• Heavy-duty, self-aligning ball bearing
• Supports temperatures up to 245 degrees Fahrenheit
• Accommodates up to 4 degrees of shaft misalignment

Product Highlights

These hangers are essential for maintaining the alignment and stability of screw conveyor systems.

Product Information

Standard Information

• Category: Hangers, Screw Conveyor Hangers
• Brand: Martin

Technical Specifications

• Coupling O.D.: 2 in
• Conveyor Dia.: 9 in
• Hanger Type: 60
• Mounting Distance (Drop): 6 1/8 in
• Bolt Hole Width: 12 1/4 in
• Bolt Hole Length: 2 in
• Weight: 13.0 LB
• EAN or UPC: 697950125107
