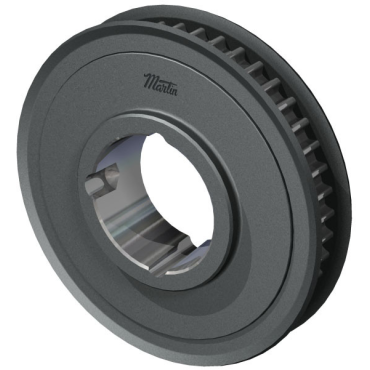

Martin 8MX36S36-1610 Taper Lock Bushed Sprocket

Product Description

The Martin 8MX36S36-1610 is a taper lock bushed sprocket designed for smooth operation in mechanical power transmission systems. This sprocket features thirty-six teeth and is constructed from steel for durability. It is suitable for single strand applications with a taper lock design for easy installation and removal.

• Durable steel construction
• Taper lock design for simple mounting
• Compatible with single strand chains

Product Highlights

This product offers reliable performance in various mechanical applications.

Product Information

Standard Information

• Brand: Martin
• MPN: 8MX36S36-1610

Technical Specifications

• Material: Steel
• Width Across Teeth: 1.86 inches
• No. of Strands Across: 1
• Sprocket Style: A
• Length Through Bore: 2.720 inches
• Belt Pitch: 8.000 mm
• Bushing Series: 1610
• Bore Type: Bushed
• No. of Teeth: 36
• Finish: Protective Coating
• Hardened Teeth: Without Hardened Teeth
• Belt Width: 36.000 mm
• Type: A
• Bushing Type: Taper Lock
• Pitch Diameter: 3.609 inches
• Flange O.D. [Max]: 4.010 inches
• O.D.: 3.5460 inches
• Inch/Metric: Metric
• Bore Range [Max]: 1 5/8 inches
• Weight: 2.7 lbs
• EAN or UPC: 697950720739
