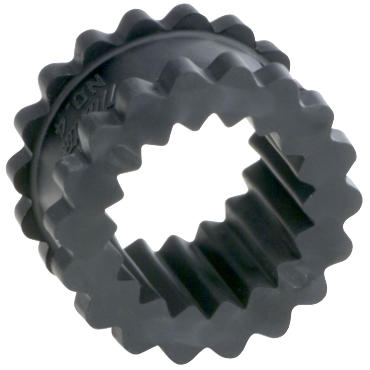

Martin 8JEM QUADRA-FLEX Coupling Sleeve

Product Description

Martin offers the 8JEM QUADRA-FLEX Coupling Sleeve designed for effective vibration dampening. This coupling sleeve features two flanges that engage a flexible elastomeric sleeve, ensuring a robust connection.

• Easy installation with no maintenance required
• Temperature range from -50 °F to 275 °F
• Torque rating of 1,135.0 in lb for durability

Product Highlights

The 8JEM QUADRA-FLEX Coupling Sleeve provides reliable performance in various applications. It is torsionally soft, allowing for double engagement without the need for lubrication. This feature enhances operation by reducing shock and vibration.

Product Information

Standard Information

• Brand: Martin
• Part Number: 100814415
• Availability: Ready To Ship

Technical Specifications

• Coupling Size: 8
• Sleeve Type: JEM
• Material: TPR
• Outside Diameter: 5 1/16 in
• Weight: 0.85 LB
• Torque Rating [Max]: 1,135.0 in lb
• RPM [Max]: 4,500 rpm
• HP @ RPM: 32 hp @ 1800 rpm
• Temperature Range [Min]: -50 °F
• Temperature Range [Max]: 275 °F
• Torsional Stiffness (Inch Pounds/Radian): 4335
• Insert Style: One Piece
• EAN or UPC: 697950277431
