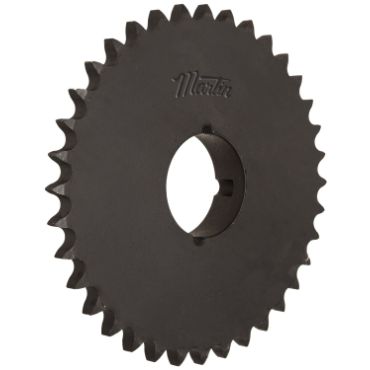

Martin 60BTB54 Bushing Bore Roller Chain Sprocket - Taper Locking, 60 / 3/4 in, 54 Teeth, 2517 Bushing

Product Description

The Martin 60BTB54 is a taper locking bushing bore roller chain sprocket designed for durability and reliability. It features a unique design that includes a tapered bushing for secure mounting on the shaft. The sprocket's construction meets ANSI standards, ensuring compatibility with various chain types.

• Tapered bushing provides a secure fit on the shaft.
• Manufactured of high carbon steel for strength.
• Hardened teeth ensure a longer lifespan.

Product Highlights

This sprocket is ideal for mechanical power transmission in various applications including industrial machinery and conveyor systems.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• Pitch Type: Single
• Tooth Width: 0.459 in
• Hub Diameter: 4-1/4 in
• Overall Width: 1-3/4 in
• Pitch Diameter: 12.8988 in
• Number of Teeth: 54
• Outside Diameter: 13.3270 in
• Bushing Bore Range: 1/2 to 2-1/2 in
