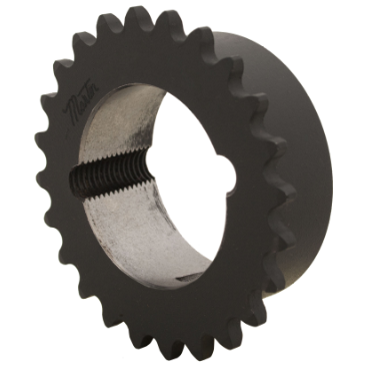

Martin 50BTB14H Bushing Bore Roller Chain Sprocket - Taper Locking, 50 / 5/8 in, 14 Teeth, 1008 Bushing, Steel Material

Product Description

The Martin 50BTB14H is a bushing bore roller chain sprocket designed for durability and precision. Made from high carbon steel, this sprocket features a taper locking mechanism that ensures a secure fit on the shaft.

• High carbon steel construction
• Tapered bushing provides a tight grip
• Meets or exceeds ANSI standards

Product Highlights

The Martin 50BTB14H sprocket offers reliable performance for mechanical power transmission applications.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• Pitch Type: Single
• Tooth Width: 0.875 inches
• Hub Diameter: 1-15/16 inches
• Overall Width: 7/8 inches
• Number Of Hubs: 1
• Pitch Diameter: 2.8087 inches
• Number Of Teeth: 14
• Tooth Thickness: 0.3430 inches
• Caliper Diameter: 2.4087 inches
• Outside Diameter: 3.1130 inches
• Surface Treatment: Protective Coating
• Bushing Bore Range: 1/2 to 1 inch
• Chain Roller Width: 0.3750 inches
• Length Through Bore: 0.8750 inches
• Chain Number & Pitch: 50 / 5/8 inches
• Hub Outside Diameter: 1.9375 inches
• Chain / Sprocket Type: Standard Roller Chain
• Chain Roller Diameter: 0.4000 inches
• Manufacturer UPC Number: 697950043166
• Storage Dimension Width: 3.2500 inches
• Number Of Strands Across: 1
• Storage Dimension Height: 15/16 inches
• Storage Dimension Length: 3.2500 inches
