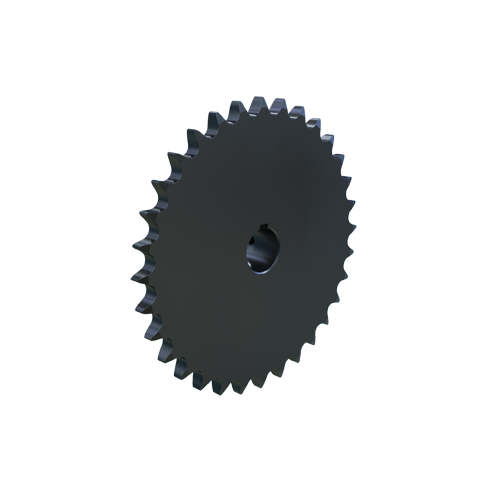

Martin 50BS321 Bored to Size Sprocket - 50 / 5/8 in

Product Description

The Martin 50BS321 is a bored to size sprocket designed for standard roller chain applications. It features a bore diameter of one inch and is made from high carbon steel. This sprocket includes thirty-two teeth and is suitable for various mechanical power transmission tasks.

• Manufactured from high carbon steel for durability
• Concentric bores minimize run-out
• Includes keyways and two setscrews for easy installation

Product Highlights

This sprocket is ideal for use in mechanical systems requiring precise alignment and reliable performance.

Product Information

Standard Information

• Brand: Martin
• MPN: 50BS321

Technical Specifications

• Bore Diameter: 1.0000 inches
• Number of Teeth: 32
• Pitch Diameter: 6.3764 inches
• Chain Number & Pitch: 50 / 5/8 inches
• Outside Diameter: 6.7210 inches
• Length Through Bore: 1.2500 inches
• Tooth Width: 0.343 inches
• Hub Diameter: 3-1/4 inches
• Surface Treatment: Protective Coating
• Storage Dimension Height: 1.25 inches
• Storage Dimension Length: 6.7210 inches
• Storage Dimension Width: 6.7210 inches
