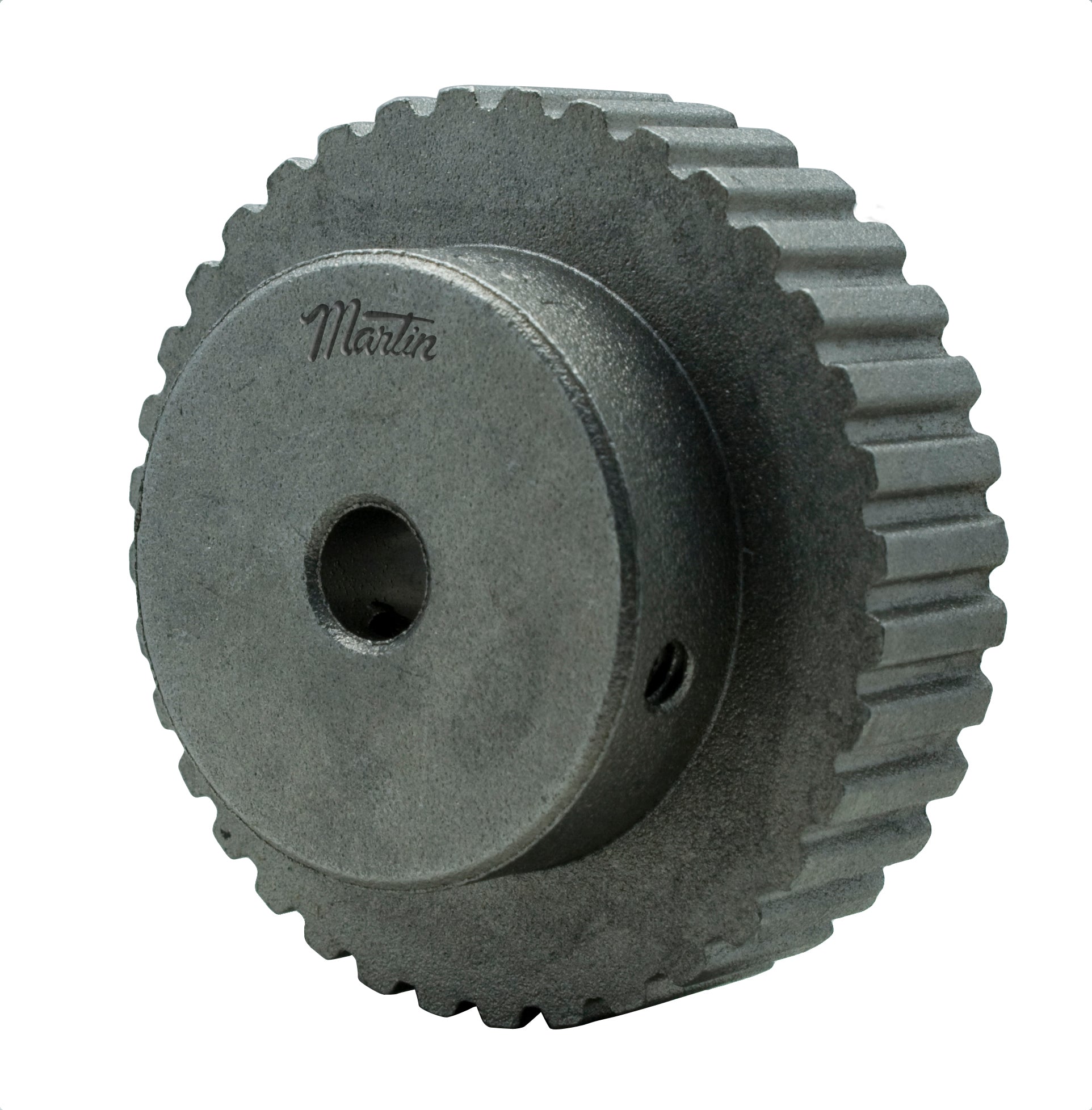

Martin 40XL037 MSG Solid Type DF-1 Timing Pulley

Product Description

Martin 40XL037 is a solid type DF-1 timing pulley designed for precise applications. This pulley features a minimum plain bore that ranges from zero point three one three to one point one eight eight inches, giving versatility in fitting. With an outer diameter of two point five two six inches and forty grooves, it is suitable for use with type XL belts.

• Non-slip toothed drive with no lubrication needed
• Manufactured to close specifications for high efficiency
• Ideal for wide speed range applications

Product Highlights

This Martin timing pulley integrates the best features of both chain and belt drives, offering an efficient and low-noise operation.

Product Information

Standard Information

• Brand: Martin Sprocket & Gear
• Manufacturer Part Number: 40XL037

Technical Specifications

• Bore Diameter: 0.313 to 1.188 inches
• Bore Type: Minimum Plain/Reborable
• Face Width: 0.563 inches
• Hub Diameter: 1.5 inches
• Hub Projection: 0.4375 inches
• Overall Length: 1 inch
• Pitch Diameter: 2.546 inches
• Outside Diameter: 2.526 inches
• Number of Grooves: 40
• Material: Steel
• Suitable For Use With: Type XL Belt
• Country of Origin: US
