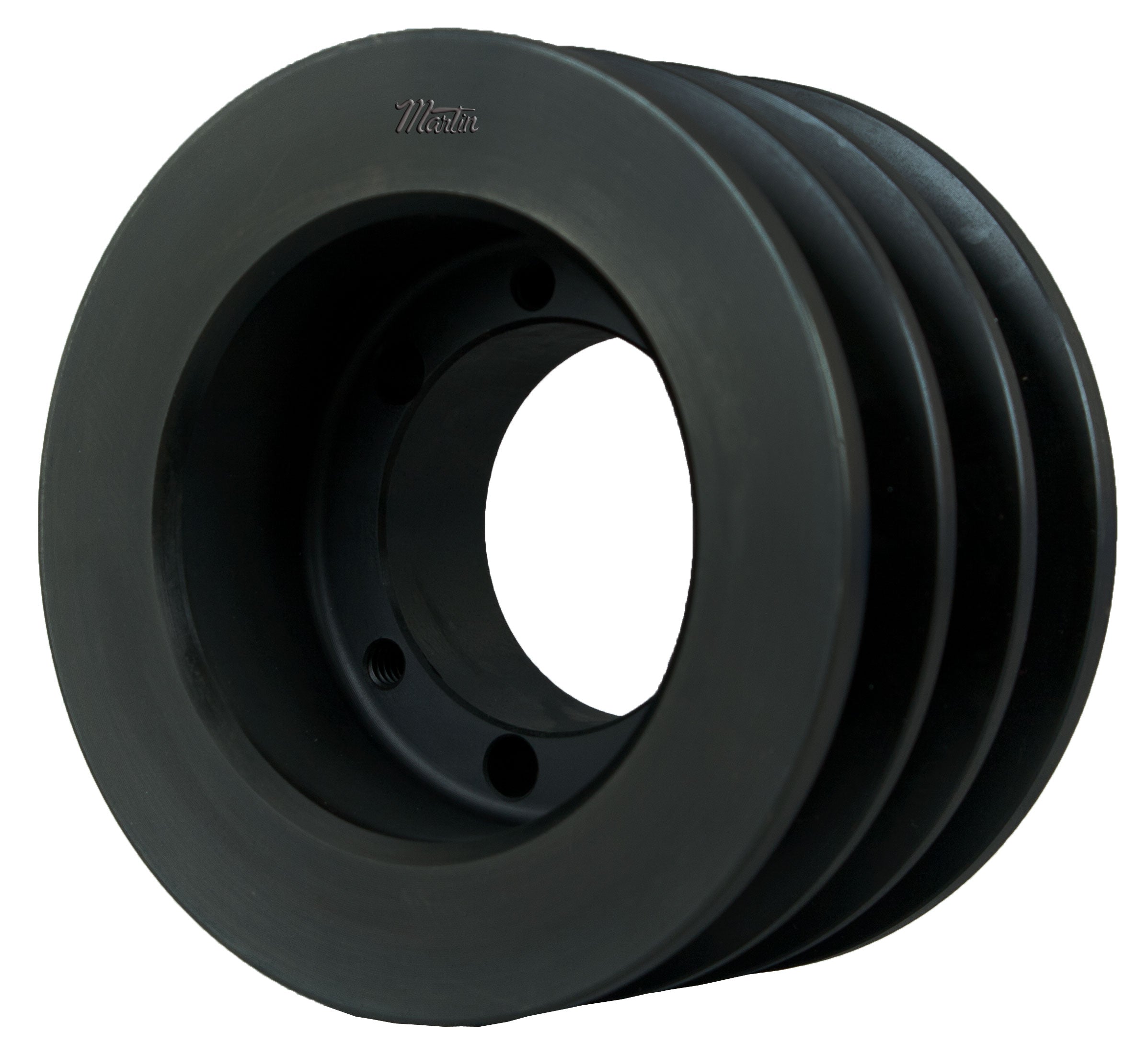

Martin 3B64SD MSG Solid Type A-1 QD Bushed Sheave 1/2 to 2 in

Product Description

The Martin 3 B 64 SD is a solid Type A-1 conventional sheave designed for efficiency and durability. This sheave features a QD® bushed bore with a diameter range of one-half to two inches. It has a six and three-fourths inch outside diameter and includes three grooves, suitable for various belt applications.

• Class 30 gray iron construction
• Maximum speed of six thousand five hundred feet per minute
• Statically balanced for consistent performance

Product Highlights

This sheave is ideal for use with A and B cross-section belts, making it versatile for many power transmission needs.

Product Information

Standard Information

• Brand: Martin Sprocket & Gear
• MPN: 3B64SD

Technical Specifications

• Material: Steel
• Bore Type: QD® Bushed
• Face Width: 2-1/2 in
• Bushing Type: SD
• Bore Diameter: 1/2 to 2 in
• Overall Length: 2-1/2 in
• Pitch Diameter: 6.4 in
• Outside Diameter: 6-3/4 in
• Number of Grooves: 3
• Suitable For Use With: A, B Cross Section Belts
• Country of Origin: US
