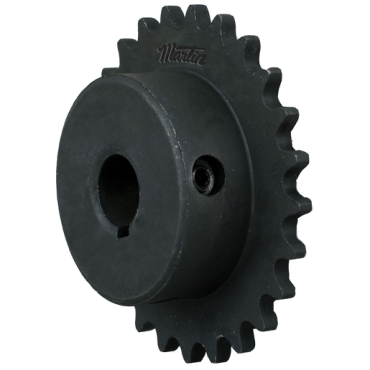

Martin 35BS283/4 Bored to Size Sprocket - 35 / 3/8 in

Product Description

The Martin 35BS283/4 is a bored to size sprocket designed for use in mechanical power transmission systems. This sprocket has a bore diameter of zero point seven five inches and features twenty-eight teeth. It is made from high carbon steel and is ready to install with keyways and setscrews included.

• Manufactured to meet ANSI standards
• Precise machining for high-quality finish
• Concentric bore minimizes run-out

Product Highlights

This product is ideal for various applications in mechanical power transmission.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• MPN: 35BS283/4
• Number of Teeth: 28
• Bore Diameter: 0.7500 in
• Pitch Diameter: 3.3493 in
• Outside Diameter: 3.5530 in
• Surface Treatment: Protective Coating
• Length Through Bore: 0.8750 in
• Tooth Width: 0.168 in
• Hub Diameter: 2 in
• Chain Number & Pitch: 35 / 3/8 in
• Chain/Sprocket Type: Standard Roller Chain
• Storage Dimension Width: 3.8750 in
• Storage Dimension Height: 15/16 in
• Storage Dimension Length: 3.8750 in
• Manufacturer UPC Number: 697950002125
