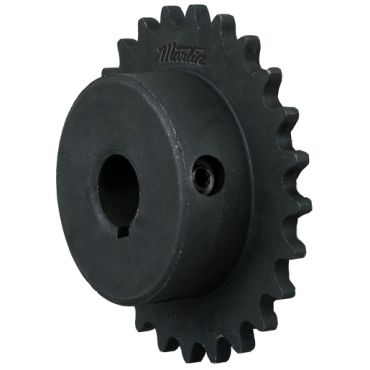

Martin 35BS253/4 Bored to Size Sprocket - 35 / 3/8 in

Product Description

The Martin Bored to Size Sprocket with MPN 35BS253/4 is designed for use in mechanical power transmission systems. This sprocket offers a bore diameter of 0.7500 inches and features 25 teeth, perfect for standard roller chain applications. The sprocket is made from high carbon steel, ensuring durability and reliability in various operations.

• Shaft ready with complete keyways and setscrews included
• Manufactured to meet or exceed ANSI tolerance standards
• Precise machining enhances quality and performance

Product Highlights

This product features enhanced concentricity to minimize run-out and comes equipped with two setscrews keyed on the centerline of the tooth. This makes installation straightforward and reliable.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• Bore Diameter: 0.7500 inches
• Number Of Teeth: 25
• Pitch Diameter: 2.9920 inches
• Outside Diameter: 3.1930 inches
• Hub Diameter: 2 inches
• Length Through Bore: 0.8750 inches
• Chain Number & Pitch: 35 / 3/8 inches
• Surface Treatment: Protective Coating
