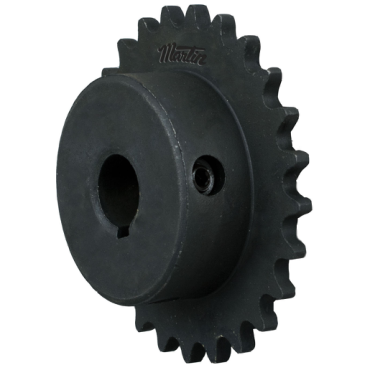

Martin 35BS233/4 Bored to Size Sprocket - 35 / 3/8 in

Product Description

Martin 35BS233/4 is a bored to size sprocket designed for standard roller chain applications. This sprocket features a bore diameter of 0.7500 inches and has 23 teeth. It is made from high carbon steel for durability and reliability.

• Finished bore sprocket with keyways and setscrews
• Manufactured to meet ANSI standards
• Precise machining ensures quality and consistency

Product Highlights

This sprocket is ideal for mechanical power transmission and chain applications. The keyways are aligned with the tooth centerline. The design minimizes runout and ensures effective performance in various setups.

Product Information

Standard Information

• Brand: Martin
• Catalog Number: 00540

Technical Specifications

• Bore Diameter: 0.7500 inches
• Number Of Teeth: 23
• Chain Number & Pitch: 35 / 3/8 inches
• Tooth Width: 0.168 inches
• Hub Diameter: 2 inches
• Pitch Diameter: 2.7540 inches
• Outside Diameter: 2.9530 inches
• Length Through Bore: 0.8750 inches
