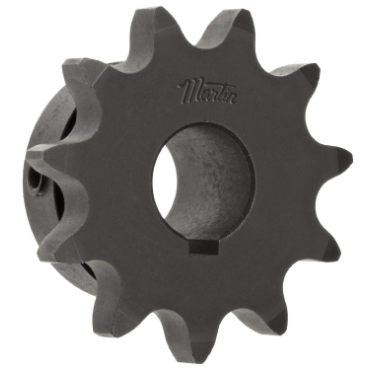

Martin 35BS173/4 Bored to Size Sprocket 35 / 3/8 in Replacement 00540

Product Description

The Martin 35BS173/4 is a bored to size sprocket suitable for various mechanical power transmission applications. This unit is made from high carbon steel and is designed for use with standard roller chains featuring a pitch of three-eighths inch. It comes equipped with two setscrews and a precise keyway aligned with the centerline of the tooth, ensuring a secure fit and effective operation.

• Finished bore for immediate use
• Concentric bore minimizes runout
• Manufactured in the USA

Product Highlights

This product is ideal for applications where precision and reliability are critical. Its construction meets ANSI standards, ensuring quality and performance.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• MPN: 35BS173/4
• Number Of Teeth: 17
• Bore Diameter: 0.7500 in
• Pitch Diameter: 2.0408 in
• Outside Diameter: 2.2310 in
• Hub Diameter: 1.5938 in
• Tooth Width: 0.168 in
• Length Through Bore: 0.7500 in
