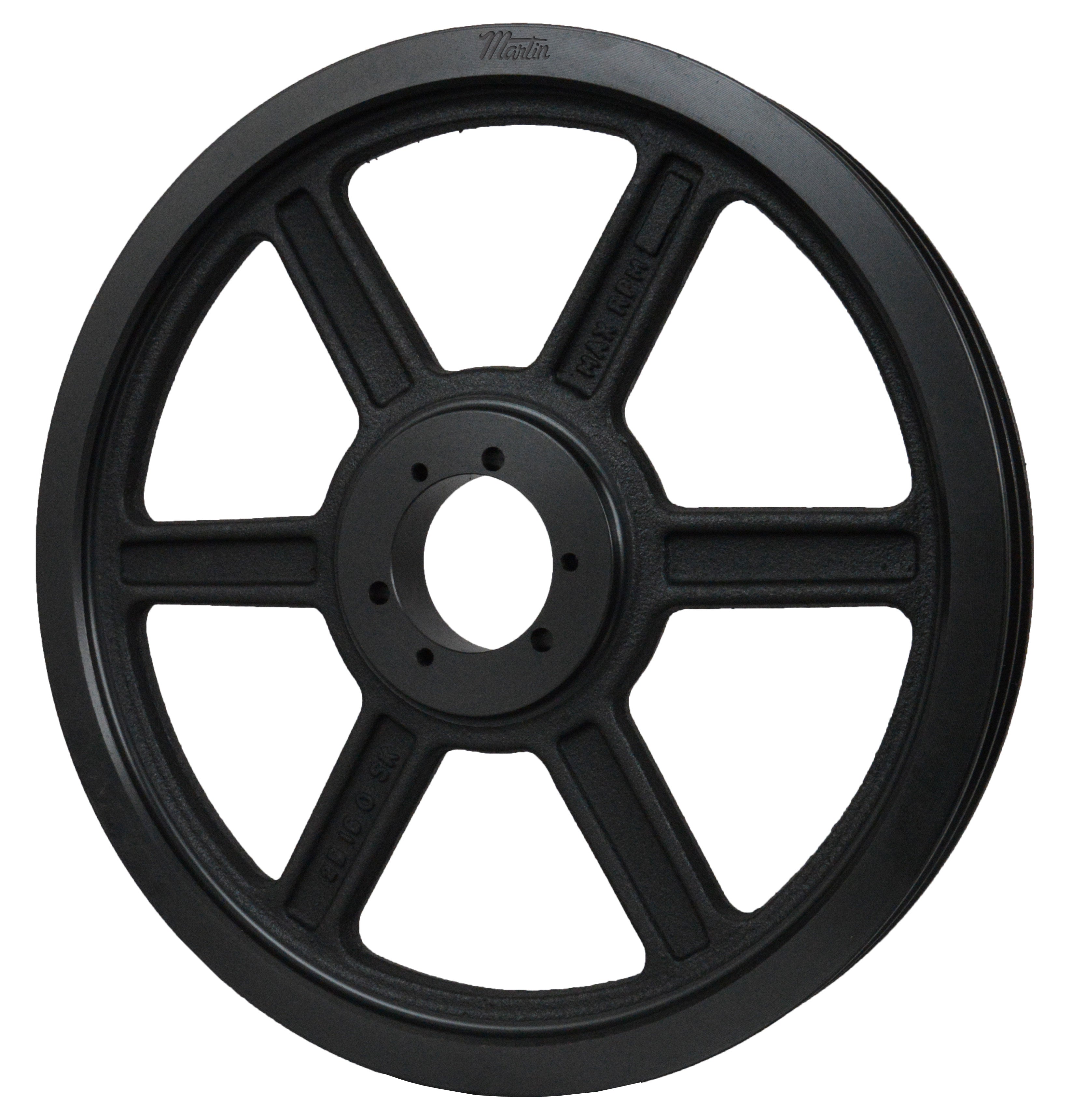

Martin 2B94SK Arm/Spoke Type D-3 Conventional QD Sheave

Product Description

The Martin 2 B 94 SK Arm/Spoke Type D-3 Conventional Sheave features a QD Bushed Bore suitable for various applications. Its dimensions include a bore range from half inch to two and five-eighths inches and an outer diameter of nine and three-fourths inches. This sheave accommodates belts of the AB cross-section making it versatile for several types of machinery.

• Manufactured from class 30 gray iron for durability.
• Dynamic balancing is recommended for high-speed applications over five thousand feet per minute.
• Comes with a two-inch overall length, ensuring proper fitting with compatible equipment.

Product Highlights

This sheave is designed for use with AB Cross Section V-Belts and offers a reliable performance in various mechanical systems.

Product Information

Standard Information

• Brand: Martin Sprocket & Gear
• Type: Arm/Spoke Type D-3

Technical Specifications

• MPN: 2B94SK
• Bore Diameter: 1/2 to 2-5/8 inches
• Bore Type: QD Bushed
• Bushing Type: SK
• Face Width: 1-3/4 inches
• Overall Length: 2 inches
• Outside Diameter: 9-3/4 inches
• Pitch Diameter: 9.4 inches
• Material: Cast Iron
• Number of Grooves: 2
• Suitable for Use With: AB Cross Section V-Belts
