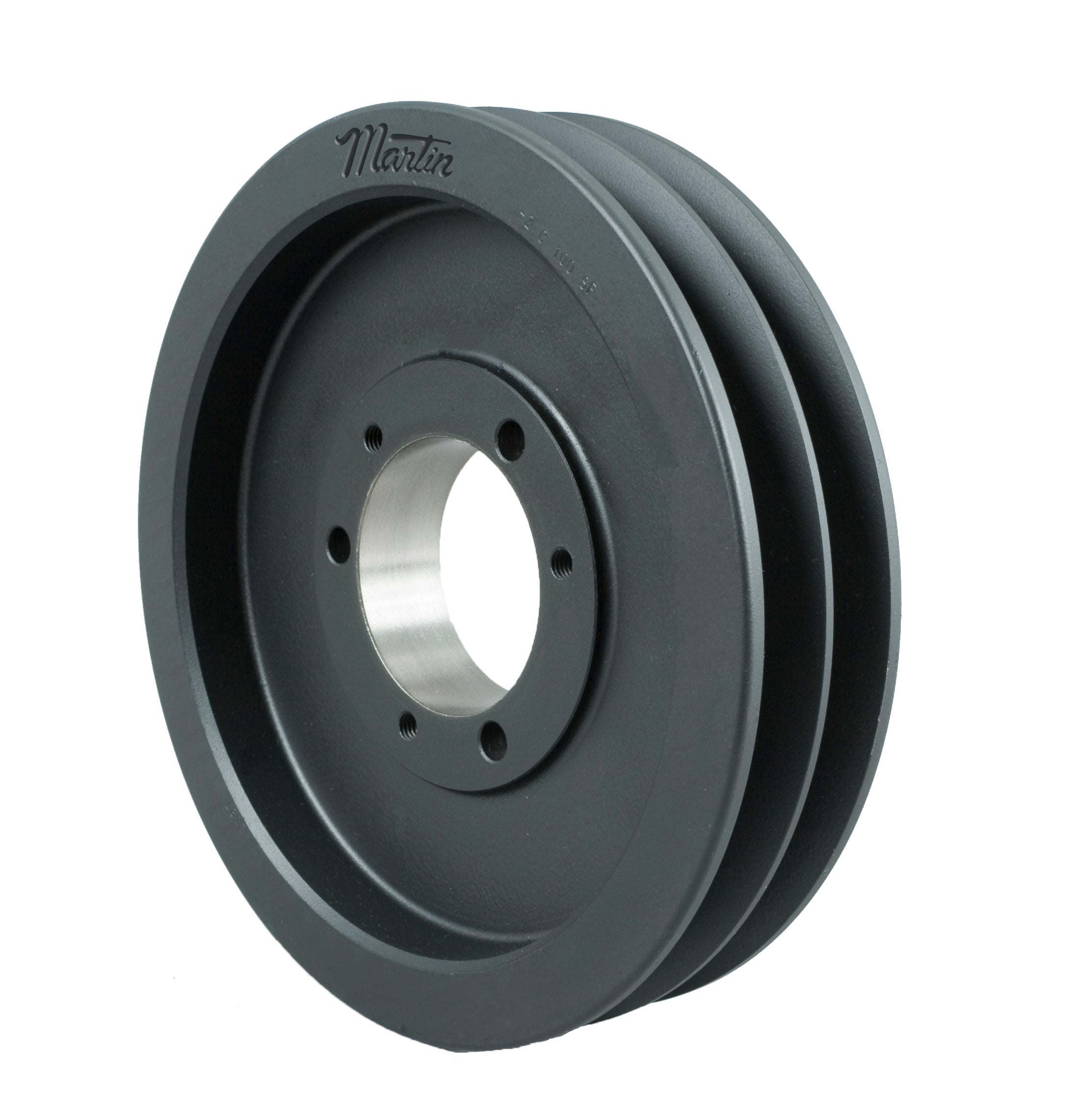

Martin 2B46SDS 2 B 46 SDS Type A-2 Web Conventional Sheave (1/2 to 2 in Bore Diameter)

Product Description

The Martin 2B46SDS is a Type A-2 Web conventional sheave designed for use with A and B cross-section belts. It features a QD® bushed bore that accommodates diameters ranging from one-half inch to two inches. With an outside diameter of four point ninety-five inches and a pitch diameter of four point six inches, it is suitable for various applications in power transmission.

• Class 30 gray iron construction
• Two grooves for enhanced belt traction
• Static and dynamic balancing options available

Product Highlights

This sheave is manufactured to withstand high speeds and is ideal for industries requiring reliable belt drives.

Product Information

Standard Information

• Brand: Martin Sprocket & Gear
• Part Number: 2 B 46 SDS

Technical Specifications

• Material: Steel
• Bore Type: QD® Bushed
• Bore Diameter: 1/2 to 2 in
• Face Width: 1-3/4 in
• Overall Length: 1-3/4 in
• Pitch Diameter: 4.6 in
• Outside Diameter: 4.95 in
• Number of Grooves: 2
• Suitable for Use With: A, B Cross Section Belts
• Country of Origin: US
