Martin 25172 2517 2 MSG Standard Taper Lock Bushing 2 in Dia Bore Replacement MPN

Product Description

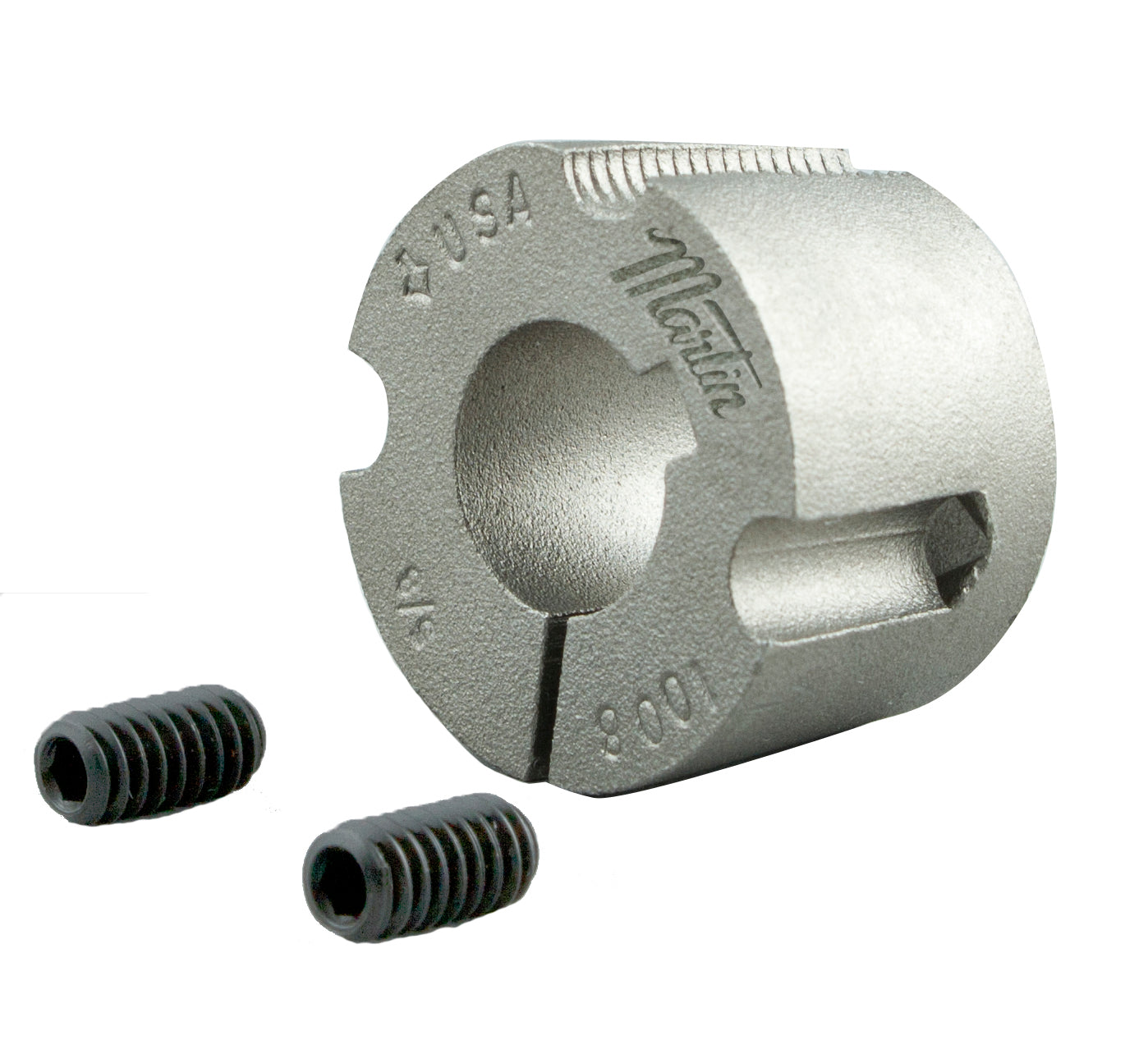

The Martin Sprocket & Gear 25172 is a standard taper lock bushing with a two-inch bore diameter. It has a barrel diameter of three and three-eighths inches and an overall length of one and three-quarter inches. This bushing is built from steel and is designed for durability and precision.

• Compatible with various power transmission applications.
• Features an eight-degree taper for secure fitting.
• Interchangeable with other standard taper bushings.

Product Highlights

This taper lock bushing is ideal for use in mounting pulleys and gears. It meets industry standards for quality and is designed for easy installation in various applications.

Product Information

Standard Information

• Brand: Martin Sprocket & Gear
• MPN: 25172

Technical Specifications

• Bore Diameter: 2 in
• Barrel Diameter: 3-3/8 in
• Hub Diameter: 4-3/8 in
• Overall Length: 1-3/4 in
• Screw Size: 1/2-13 x 1 in
• Taper: 8 deg
• Torque Rating: 11600 in-lb
• Keyway Size: 1/2 x 1/4 in
• Material: Steel
• Standards: ANSI B15.1
• Number of Bolt Holes: 2
• Bolt Circle Diameter: 3-1/4 in
