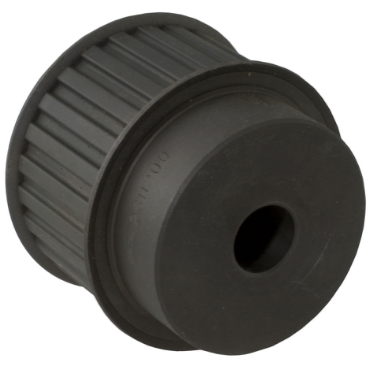

Martin 24L075 Reborable Timing Pulley

Product Description

The Martin 24L075 Reborable Timing Pulley features a design that ensures effective engagement with timing belts. Its grooves are precisely spaced to maximize efficiency with minimized friction during operation.

• Designed for minimal tooth-to-groove clearance
• Compatible with various belt sizes
• Made of durable steel material

Product Highlights

This timing pulley is essential for smooth operation in mechanical systems where timing and precision are critical.

Product Information

Standard Information

• Brand: Martin
• Part Number: 100813376

Technical Specifications

• Bore Range [Min]: 0.625 inches
• Bore Range [Max]: 1.625 inches
• Belt Size: L075
• Outside Diameter: 2.835 inches
• Material: Steel
• Length Through Bore: 1.75 inches
• Type: PB
• Belt Width: 0.75 inches
• Belt Pitch: 0.375 inches
• Number of Teeth: 24
• Hardened Teeth: Without Hardened Teeth
• Hub Type: B
• Hub Projection: 0.75 inches
• Weight: 2.1 lbs
• EAN or UPC: 697950151595
