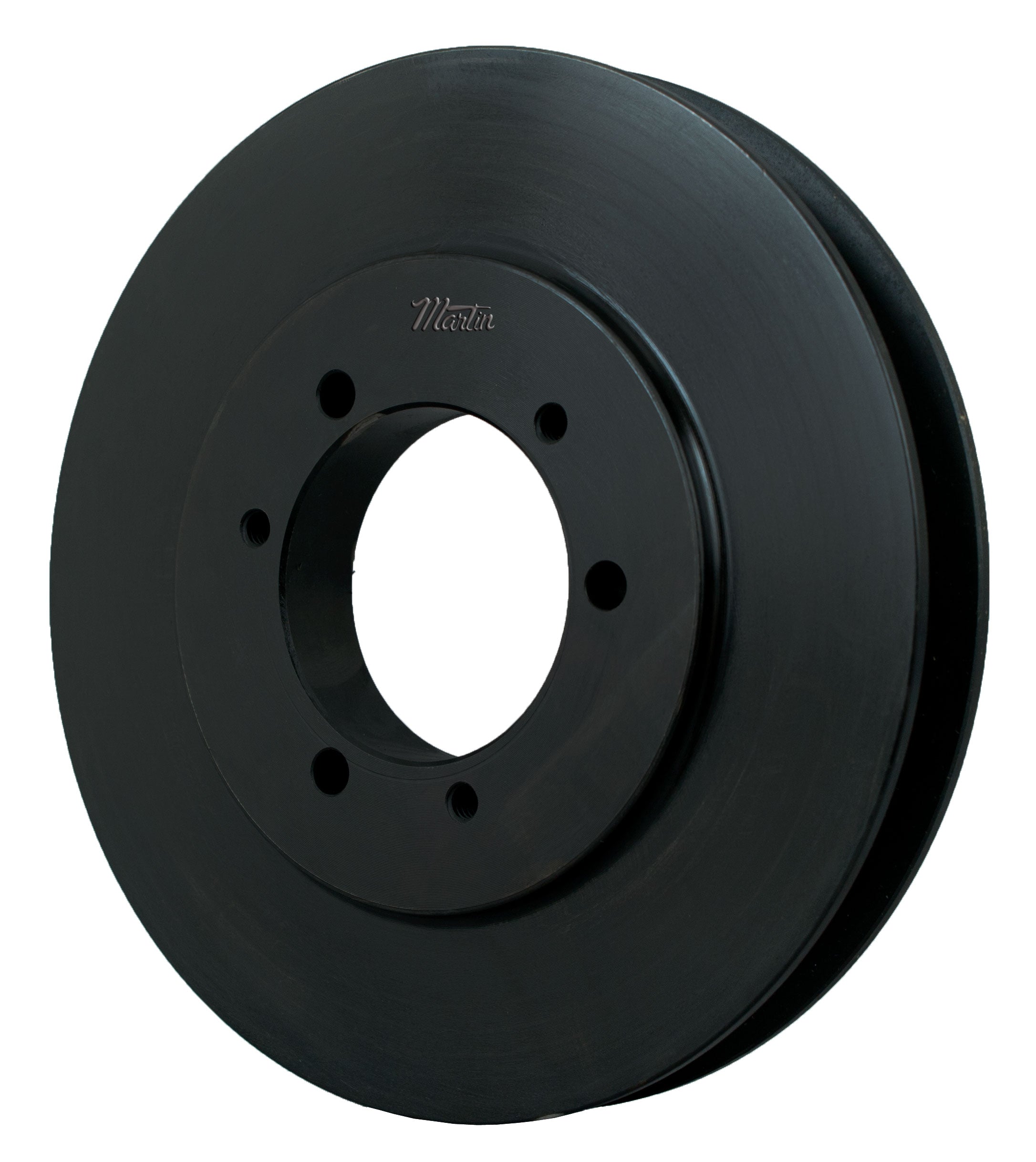

Martin 1B74SDS Type C-2 Web Single Groove Conventional Sheave QD Bushed Bore

Product Description

The Martin 1 B 74 SDS MSG is a single groove conventional sheave made from durable cast iron. This type C-2 web sheave features a QD® bushed bore and accommodates bore sizes from one-half to two inches. With an outer diameter of seven and three-fourths inches and a pitch diameter of seven point four inches, it is designed for use with AB cross-section V-belts.

• Manufactured from class 30 gray iron with a tensile strength of thirty thousand psi
• Statics balancing ensures smooth operation
• Suitable for a maximum speed of six thousand five hundred fpm

Product Highlights

This sheave helps provide reliable performance in power transmission applications.

Product Information

Standard Information

• Brand: Martin Sprocket & Gear
• Part Number: 1 B 74 SDS

Technical Specifications

• Material: Cast Iron
• Bore Type: QD® Bushed
• Face Width: 1 in
• Bushing Type: SDS
• Bore Diameter: 1/2 to 2 in
• Overall Length: 1-3/8 in
• Pitch Diameter: 7.4 in
• Outside Diameter: 7-3/4 in
• Suitable For Use With: AB Cross Section V-Belts
• Type: Type C-2 Web
• Country of Origin: US
