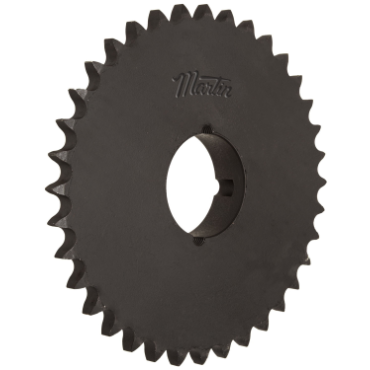

Martin 16BTB27H Taper Lock Bushed Sprocket

Product Description

The Martin 16BTB27H is a taper lock bushed sprocket made for #16B chains. This sprocket features a design with 27 teeth and is suitable for various mechanical power transmission applications. The tapered bushing allows for a strong grip on the shaft, ensuring durability and effective performance during operation.

• Suitable for #16B chains
• Made with high carbon steel
• Interchangeable with other manufacturers' taper bushings

Product Highlights

This sprocket is built to meet or exceed ISO standards, offering precision and quality. The hardened teeth provide additional durability, particularly in high-speed applications.

Product Information

Standard Information

• Brand: Martin
• MPN: 16BTB27H

Technical Specifications

• Overall Length: 44.45 mm
• Outside Diameter: 234.67 mm
• Root Diameter: 202.92 mm
• Bore Type: Bushed
• Sprocket Style: B
• Width Across Teeth: 16.18 mm
• Chain No.: 16B
• Hardened Teeth: With Hardened Teeth
• Pitch Diameter: 218.79 mm
• Hub Projection: 28.58 mm
• Length Through Bore: 44.45 mm
• No. of Teeth: 27
• No. of Strands Across: 1
• Bushing Bore [Min]: 12.7 mm
• Hub Dia.: 107.95 mm
• Bushing Type: Taper Lock
• Material: Steel
• Bushing Bore [Max]: 57.15 mm
• Chain Pitch: 1.000 in, 25.4 mm
• Bushing Series: 2517
• Weight: 12.51 LB
• EAN or UPC: 697950410937
