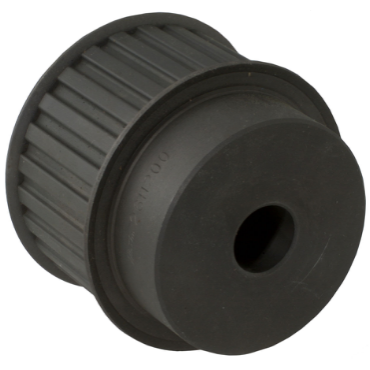

Martin 14L100 Reborable Timing Pulley

Product Description

The Martin 14L100 is a reborable timing pulley designed for precise engagement with timing belts. The pulley has evenly spaced grooves that allow for smooth functioning and minimal friction. This pulley is important in applications where accurate timing and synchronization are necessary.

• 0.375 inches Belt Pitch
• 1 inch Belt Width
• 14 Teeth and 1.641 inches Outside Diameter

Product Highlights

This timing pulley ensures effective power transmission and is suitable for various industrial applications.

Product Information

Standard Information

• Brand: Martin
• Part Number: 14L100

Technical Specifications

• Set Screw Size: 10-24 x 3/16
• Finished Bore: N/A
• Bore Type: Bushed
• Pitch Diameter: 1.671 inches
• Belt Width: 1 inch
• Length Through Bore: 1.75 inches
• Material: Steel
• Bore Range Max: 0.875 inches
• Belt Size: L100
• Bore Range Min: 0.375 inches
• Outside Diameter: 1.641 inches
• Belt Pitch: 0.375 inches
• Hub Type: B
• Bushing Type: None
• Hub Diameter: 1 1/8 inches
• Number of Teeth: 14
• Hub Projection: 1/2 inches
• Bushing Series: N/A
• Hardened Teeth: Without Hardened Teeth
• Type: PB
• Number of Screws: 1
• Weight: 1.0 LB
• EAN or UPC: 697950097930
