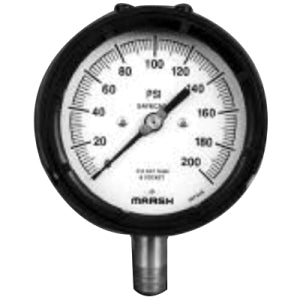

Marsh Bellofram P0154 Process Gauge 0-200 PSI 4-1/2

Product Description

The MARSH BELLOFRAM P0154 is a process pressure gauge, a turret style gauge with a 4-1/2 IN dial. It measures pressure ranging from 0 to 200 PSI, utilizing PSI as the unit of measure. It features SAFECASE solid-front construction and adheres to ASME Grade 2A standards, ensuring reliable and accurate pressure readings in various process applications.

• Turret Style Process Pressure Gauge
• SAFECASE solid-front construction
• Accuracy: Plus/Minus 0.5% Full Scale (ASME Grade 2A)

Product Highlights

Turret style process pressure gauge with SAFECASE design, measuring 0-200 PSI with high accuracy.

Product Information

Standard Information

• Brand: MARSH BELLOFRAM
• Manufacturer Part Number: P0154

Technical Specifications

• Dial Size: 4-1/2 IN
• Measuring Range: 0 - 200 PSI
• Units Of Measure: PSI
• Connection: 1/4 IN NPT Lower
• Accuracy: Plus/Minus 0.5% Full Scale (ASME Grade 2A)
• Graduations: 2 Smallest, 20 Largest
• Dial Face: Black Markings On White
• Case Material: Polypropylene
• Lens Material: Acrylic
• Pointer Material: Black Aluminum
• Movement Material: Stainless Steel
• Tube Material: Copper Alloy
• Socket Material: Copper Alloy
• Length: 5.85 IN
• Width: 5.85 IN
• Depth: 3.13 IN
• Item Name: Process Pressure Gauge
• Type: Turret Style
