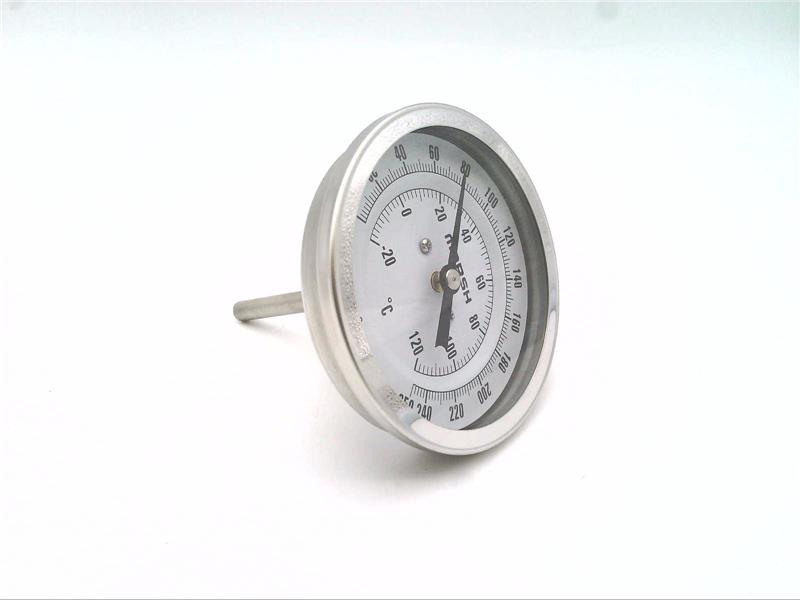

Marsh Bellofram L31105 Bi-Metal Thermometer 3 0-250F 2-1/2 Back Stem

Product Description

The MARSH BELLOFRAM L31105 bi-metal thermometer is a heavy-duty instrument for temperature indication in dual scale ranges from -50 to 1000 DEG F (-40 to 525 DEG C). The Series "L" thermometer features an easy-to-read dual scale, fast response, and accurate temperature indication. The hermetically sealed case resists shock, vibration, dust, and moisture.

• Easy-to-read dual scale
• Fast response
• Accurate temperature indication
• Hermetically sealed case resistant to shock, vibration, dust, and moisture

Product Highlights

This bi-metal thermometer has a bi-metal sensing element that provides accuracy to within 1% of scale. It also features an external adjustment screw for convenient reset and field calibration, and built-in over-range protection.

Product Information

Standard Information

• Brand: MARSH BELLOFRAM
• Manufacturer Part Number: L31105

Technical Specifications

• Dial Size: 3 IN
• Temperature Rating: 0 - 250 DEG F And -20 To 120 DEG C
• Connection Type: 1/2 IN NPT
• Connection Location: Center Back
• Sensing Element: Bi-Metal
• Stem Size: 2-1/2 IN Length X 1/4 IN Diameter
• Accuracy: 1% Full Scale Of Span Throughout Entire Range For 2 IN Immersion In Liquids, 4 IN In Gases
• Case Material: 304 Stainless Steel
• Stem Material: Stainless Steel
• Window: Glass
• Item Name: Bi-Metal Thermometer
• Part #: L31105
• Window Material: Glass
