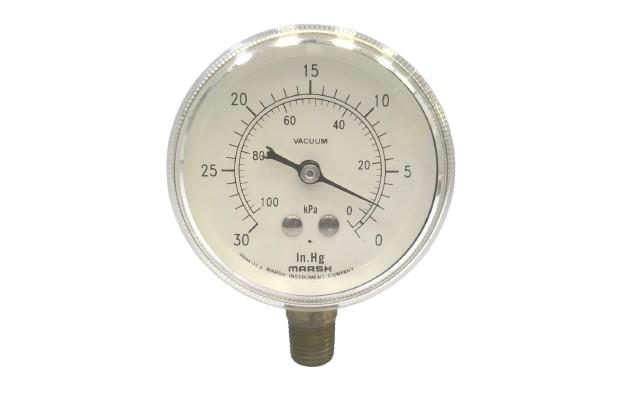

Marsh Bellofram J4605 vacuum gauge 2-1/2

Product Description

The MARSH BELLOFRAM J4605 general service steel case gauge is designed for reliable pressure measurements. It is suitable for use with water, oil, air, gas, or other noncorrosive media from vacuum/compound through 5000 PSI. The gauge features black markings on a white dial face and an acrylic twist-in Clearlok lens.

• Cost-effective
• General purpose
• Reliable pressure measurements

Product Highlights

This gauge offers reliable pressure measurements for various applications, including pumps, machinery, and pressurized vessels.

Product Information

Standard Information

• Brand: MARSH BELLOFRAM
• Manufacturer Part Number: J4605
• Country of Origin: China

Technical Specifications

• Dial Size: 2-1/2 IN
• Measuring Range: 0 - 30 IN Hg
• Connection: 1/4 IN NPT Lower
• Accuracy: Plus/Minus 3-2-3% (ASME Grade B)
• Dial Face: Black Markings On White
• Case: Black Steel
• Lens: Acrylic Twist-In Clearlok
• Pointer Material: Black Aluminum
• Movement: Brass
• Tube Material: Copper Alloy
• Socket: Copper Alloy
• Depth: 1.22 IN
• Other Physical Dimension: 2.73 IN Diameter
• Case Material: Black Steel
• Lens Material: Acrylic Twist-In Clearlok
• Movement Material: Brass
• Socket Material: Copper Alloy
• Filled With: Dry
• Part #: J4605
• Manufacturer: MARSH
• Series: General Service Series
• Model: J4605
• Case Type: Plain
• Primary Range: 0-30 InHg
• Gauge Type: Vacuum
• Connection Location: Bottom
• Connection Size: 1/4" NPT
• Lens Type: Acrylic
• Dry or Filled: Dry
• Wetted Parts: Copper
