Mars X304 See Uh1036 Motor 1/3Hp 115V 1075Rpmt

Product Description

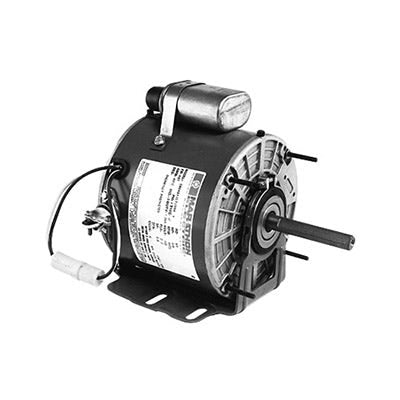

The MARS X304 See Uh1036 motor is a unit heater motor operating at 115V. Designed for unit heater applications, this motor features a single speed and a shaft length of 2.75 inches. It is a PSC ball bearing motor that needs to be mounted within the airstream for proper cooling.

• Totally enclosed, air over
• Horizontal or vertical mount
• 1” extended thru-bolts
• Reversing plug

Product Highlights

This motor is suitable for various fan and blower applications. It has automatic reset thermal overload and 37 inch leads.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: X304
• Country of Origin: Mexico

Technical Specifications

• Brand: Mars
• Country of Origin: Mexico
• UPC: 722856041838
• Motor Enclosure: TEAO
• Frame: 48Y
• Rotation: Reversible
• RPM: 1075
• Horsepower (HP): 1/3
• Supply Voltage: 115V
• Phase: Single Phase
• Hertz: 50/60Hz
• Number of Speeds: 1
• Shaft Diameter: 1/2"
• Class: B insulation
• Frequency: 60 Hz
• Duty: Continuous duty
