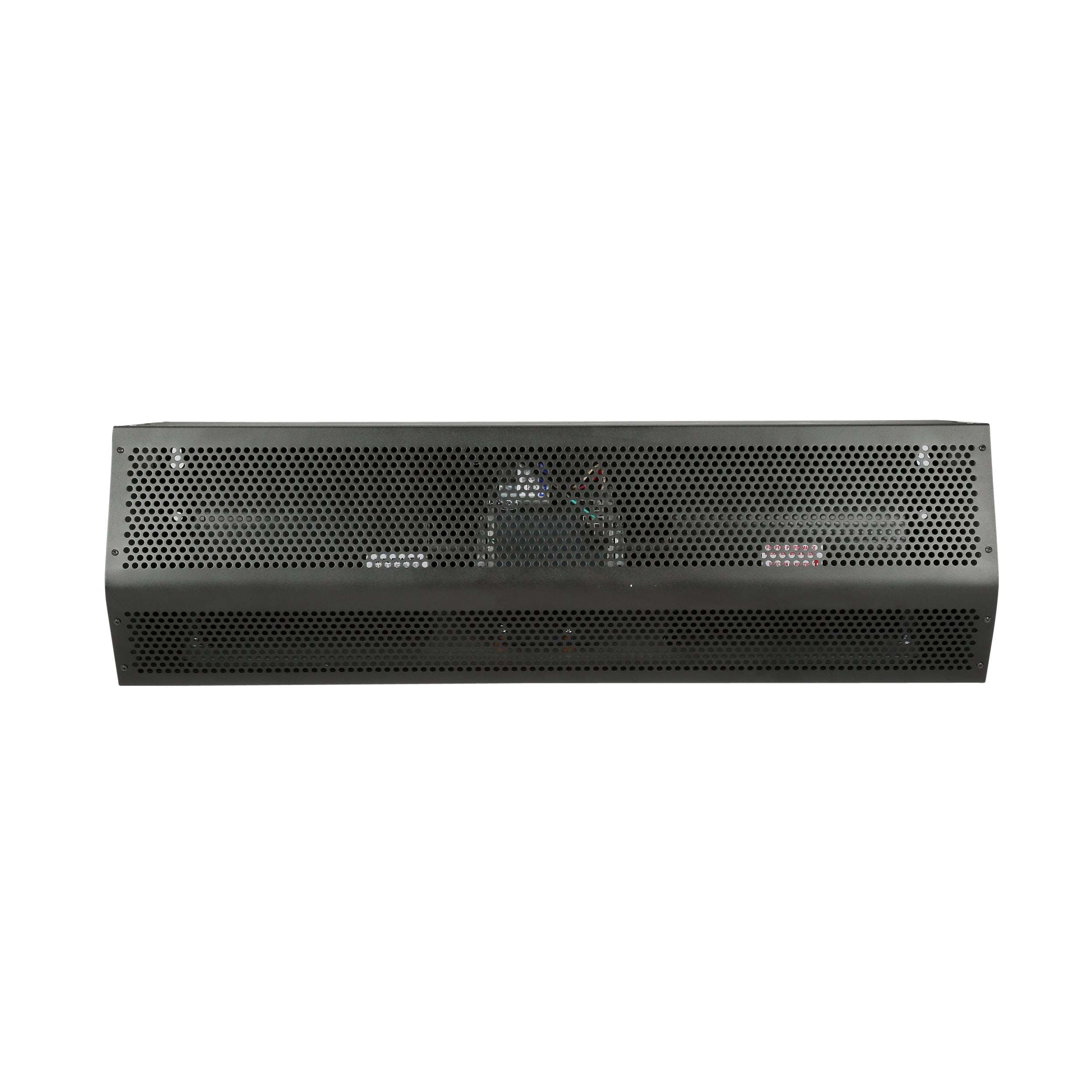

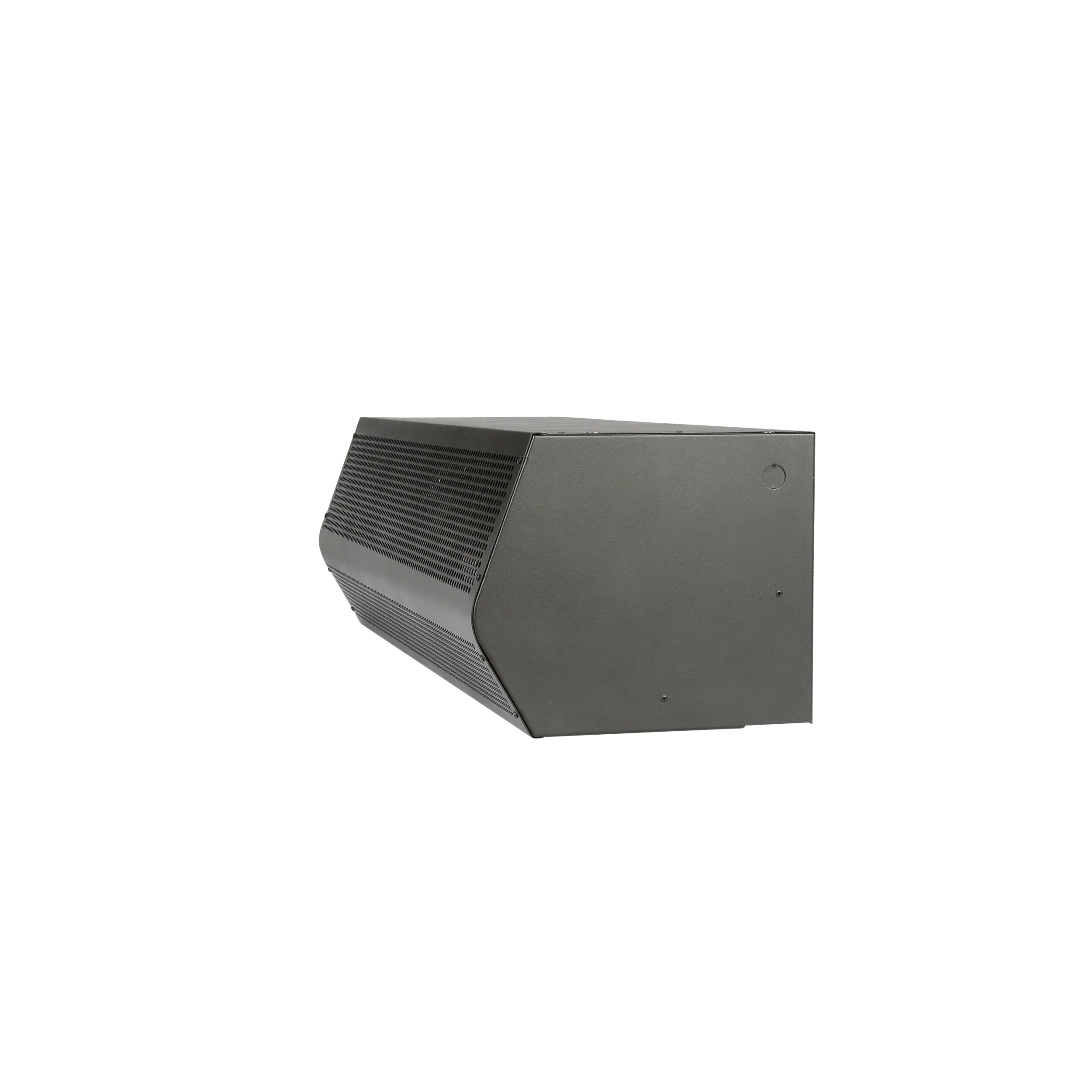

Mars STD296-2UD-OB Standard 2 Air Curtains 96 inch

Product Description

The MARS STD296-2UD-OB Standard 2 series is a popular energy-saving air curtain suitable for customer-facing and industrial applications. It features a 1/2 horsepower motor, is available in ETL Sanitation Certified versions, and is suitable for heights up to 10 ft. The air curtain has an air volume of 2884 CFM and a wind-stopping capability of 12 MPH.

• Commercial and industrial hybrid
• Energy-saving series
• Suitable for heights up to 10 ft

Product Highlights

The STD2 series air curtain provides an environmental barrier up to 12 feet and protects from insects up to 10 feet.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: STD296-2UD-OB
• Country of Origin: USA

Technical Specifications

• MPN: STD296-2UD-OB
• Environmental - Max Height (feet): 12
• Insect - Max Height (feet): 10
• Series: STD2 (Standard 2) Series
• Heating Mode: Unheated
• Nozzle Width (inches): 96
• Unit Width (inches): 96
• Unit Height (inches): 10.625
• Wind Stopping Capability (MPH): 12
• Horsepower: 1/2
• Motors: 2
• Air Flow Certified (AMCA): Yes
• Voltage Rating: 208-230/1/60
• Voltage Code: D
• Air Curtain Air Volume (CFM): 2884
• Amps: 5
• dBA: 68
• Width: 96.00"
• Depth: 12.75"
• Max. Door/Window Height (ft.): 12
• Max. Height Insect Block (ft.): 10
• Heat: No
• Voltage: 208-230V
• Length (in.): 96
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
• Phase: 1-Ph
• Hertz: 60
• Application: Walk-In Coolers
• ETL Listed: Yes
• Exterior Color: Black
• Max Environmental Separation Height: 12 Feet
• Max Insect Blocking Height: 10 Feet
• Power: Electric
• Volts: 208/230 Volts
• Wattage: 1,100 Watts
• Product Condition: New
