Product Description

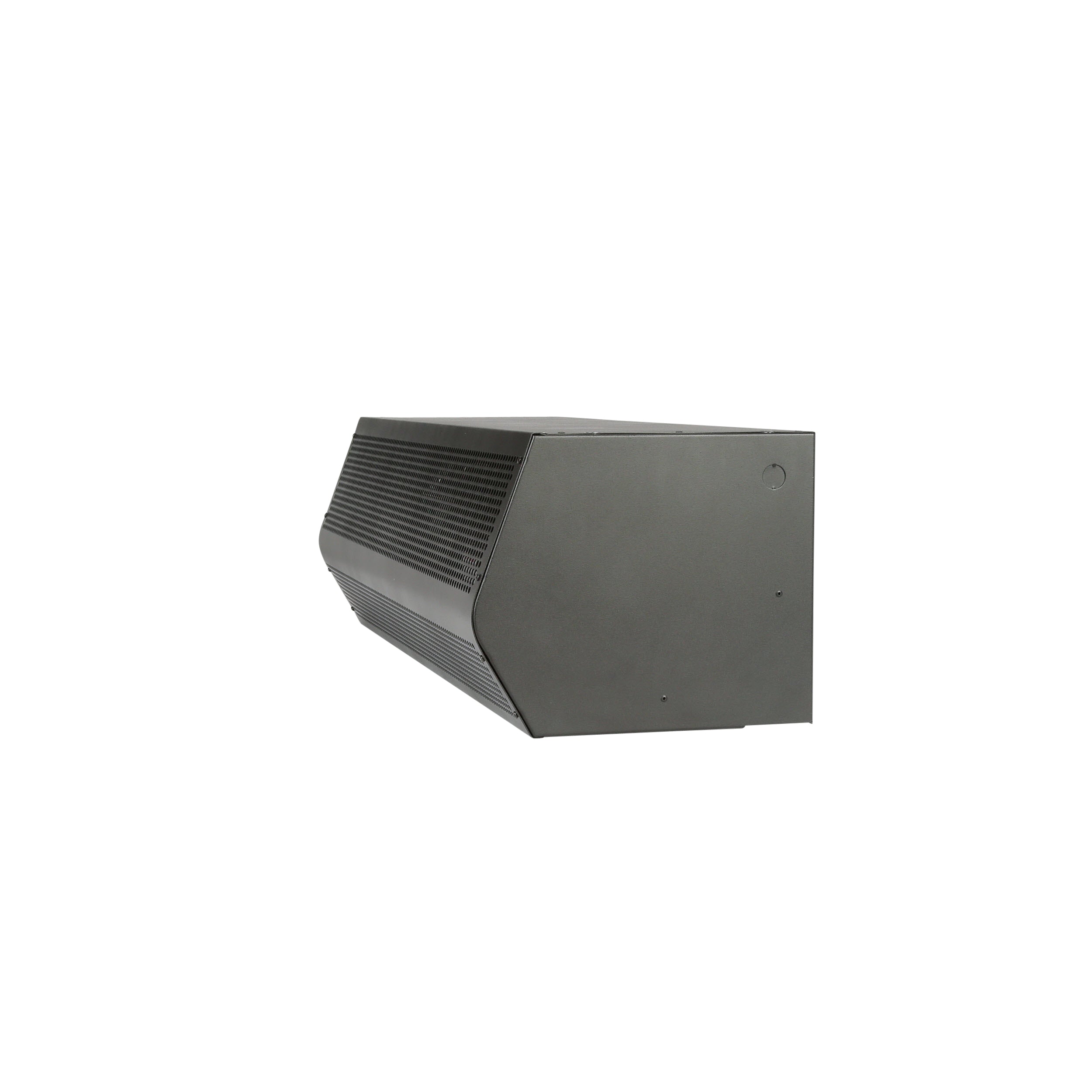

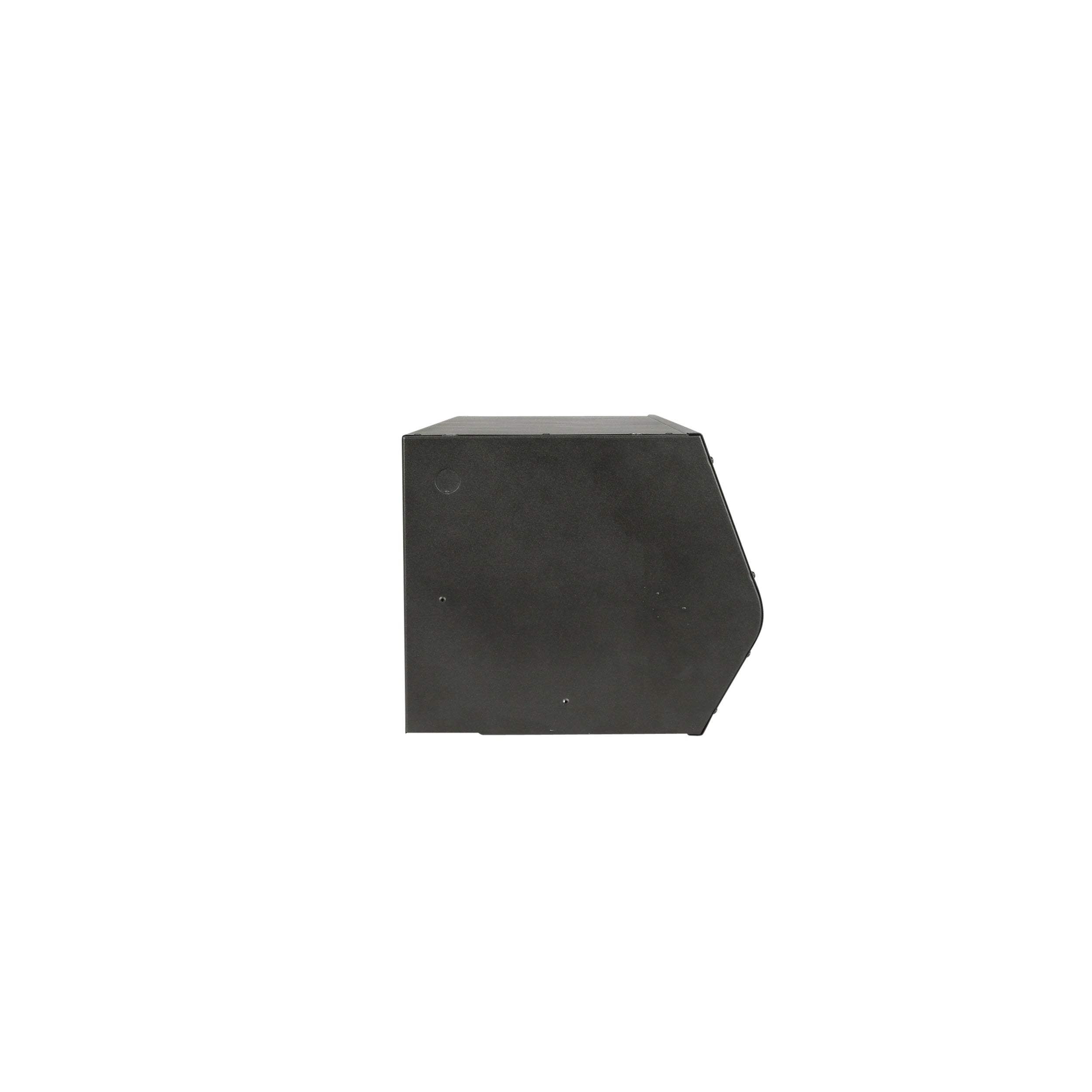

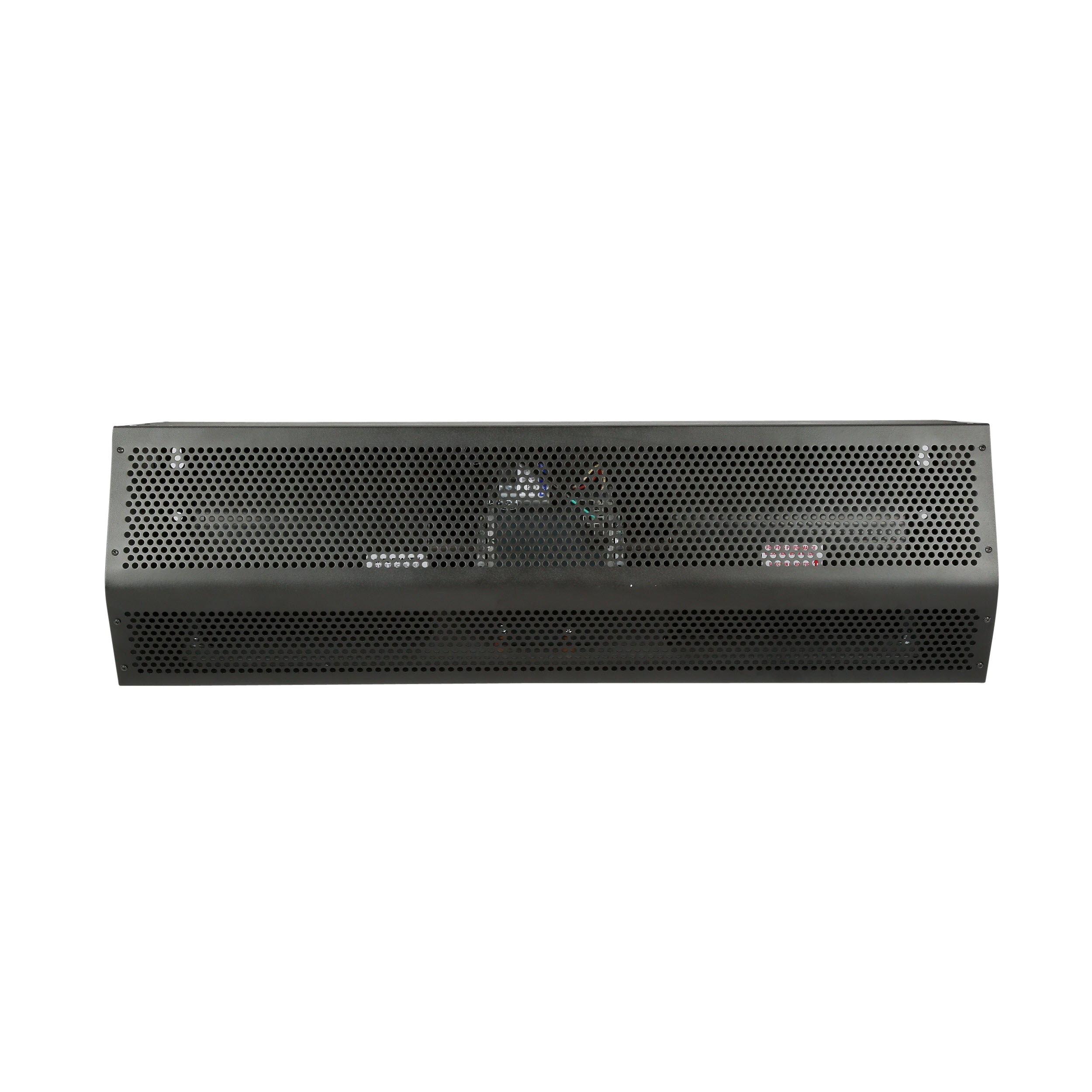

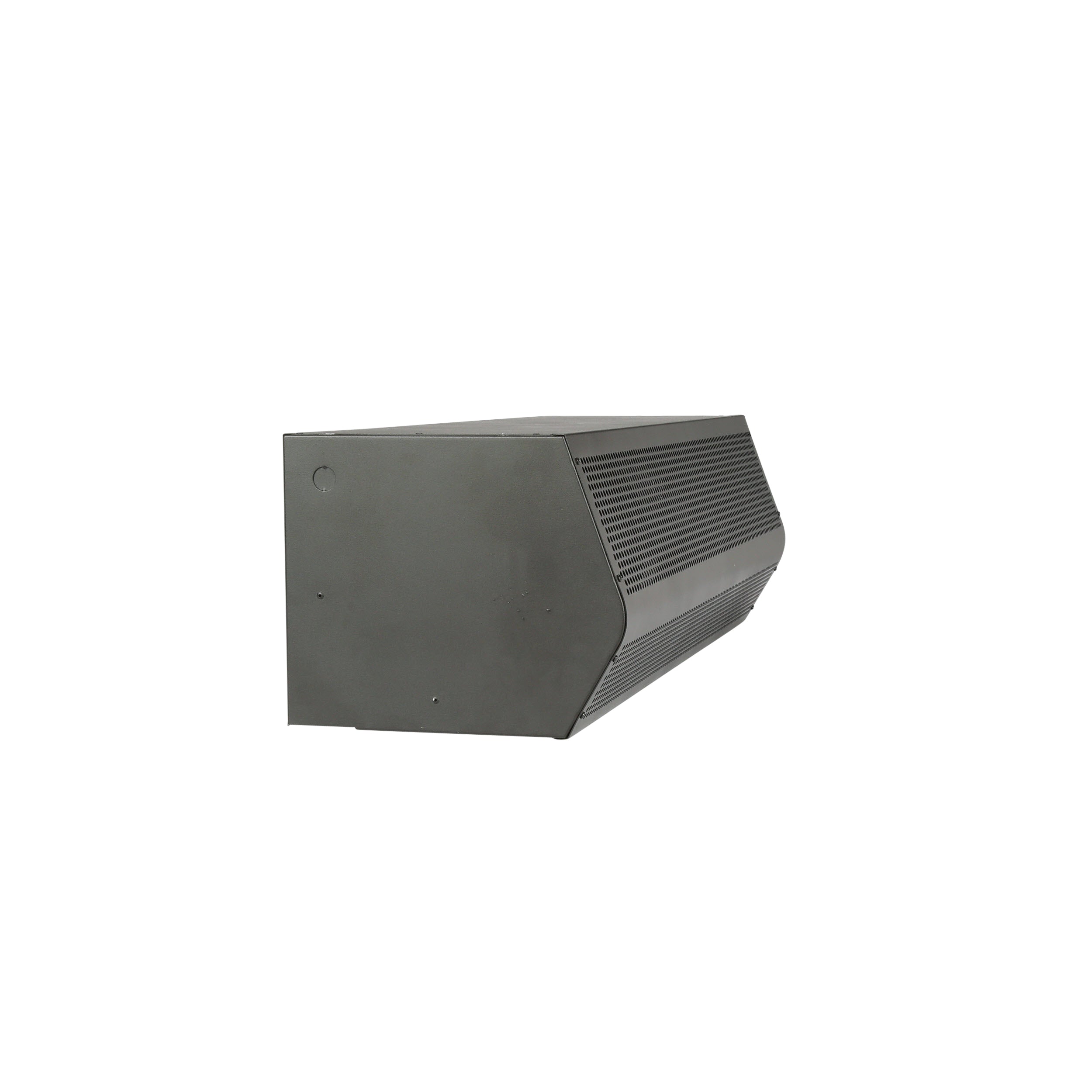

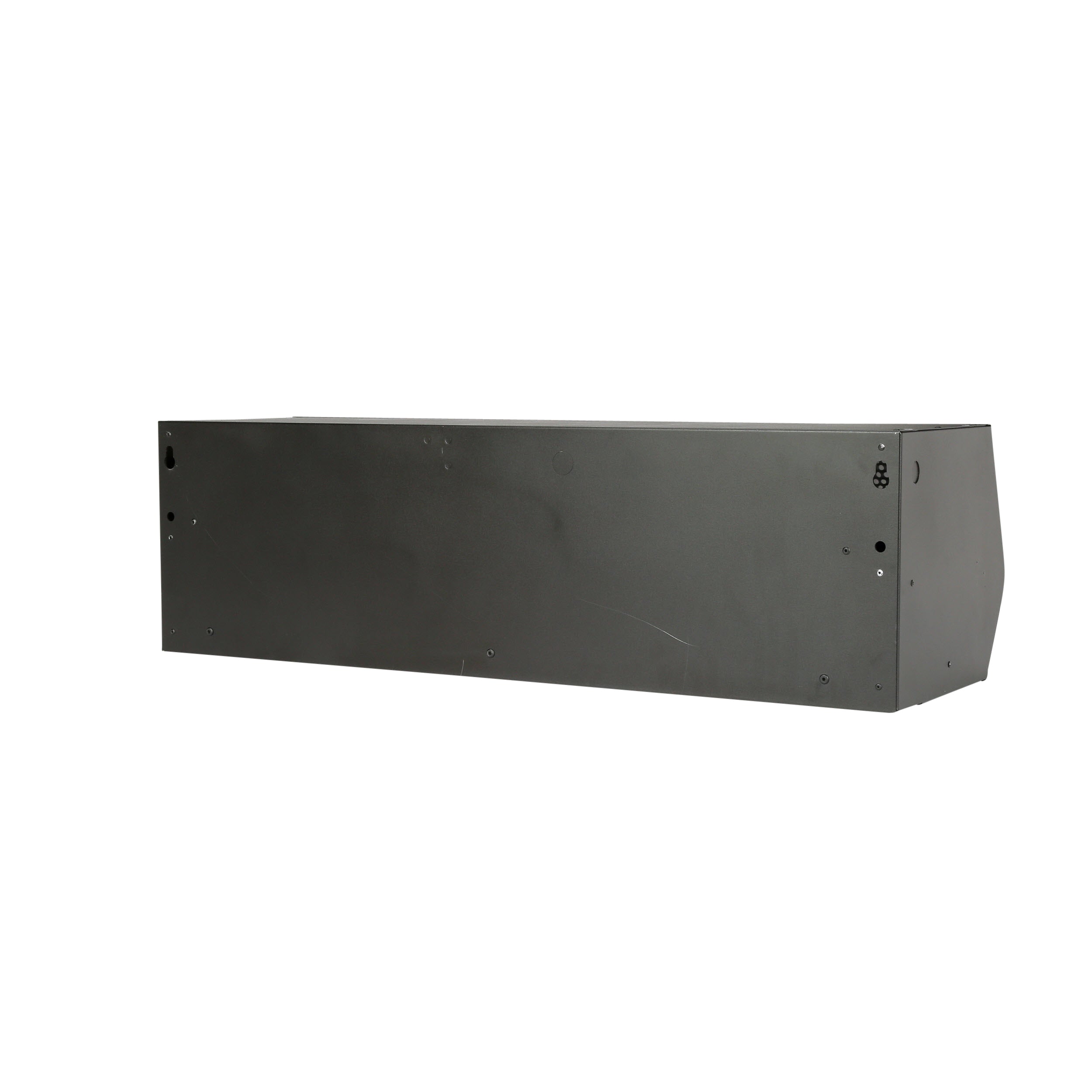

The MARS STD272-2UH-OB Standard Series 2 Air Curtain is designed for door applications requiring insect control up to 10 feet and temperature separation up to 12 feet. This 72-inch wide air curtain features a 1/2 horsepower motor, unheated operation, and a 460V AC, 3-phase power supply. Requires Door Limit Switch, Motor Control Panel.
- Commercial and industrial hybrid
- Energy-saving series
- 1/2 horsepower power motor(s)
Product Highlights
Ideal for maintaining temperature and preventing insects in restaurants, retail spaces, and industrial environments. Available in multiple configurations.
Product Information
Standard Information
-
Brand: MARS
-
Manufacturer Part Number: STD272-2UH-OB
-
Country of Origin: United States
Technical Specifications
-
Item: Air Curtain
-
Phase: 3
-
Width: 72 in
-
Finish: Galvanized, Powder Coated
-
Height: 10 5/8 in
-
Series: STD2 (Standard 2)
-
Voltage: 460V AC
-
Max. RPM: 1,750 RPM
-
Motor HP: 1/2 hp
-
Requires: Door Limit Switch, Motor Control Panel
-
Washdown: No
-
Frequency: 60 Hz
-
Max. Amps: 1.6 A
-
Standards: ETL
-
Drive Type: Direct Drive
-
Motor Type: 3 Phase
-
Nozzle Width: 72 in
-
Profile Type: Standard Profile
-
Housing Color: Black
-
Maximum Speed: 1,750 RPM
-
For Outdoor Use: Yes
-
Grille Material: Steel
-
Motor Enclosure: Totally Enclosed Air Over
-
Air Curtain Type: Ambient Air
-
Number of Motors: 2
-
Number of Speeds: 1
-
Full Load Current: 1.6 A
-
HEPA Air Cleaning: No
-
Heated/Not Heated: Not Heated
-
Nameplate Voltage: 460V AC
-
Power Consumption: 1,000 W
-
Maximum Air Volume: 2,758 cfm
-
Sound Level @ 10 ft: 68 dBA
-
Air Temperature Rise: Not Applicable
-
Max. Mounting Height: 10 ft
-
Maximum Air Velocity: 2,206 fpm
-
Sanitation Certified: No
-
For Frame Opening Width: 6 ft
-
Nameplate Voltage/Phase: 460V AC - 3 Ph
-
Nominal Voltage - Phase: 480V AC - 3 Phase
-
Heater Power Consumption: Not Applicable
-
Ultraviolet Air Cleaning: No
-
Motor Horsepower per Motor: 1/2 hp
-
Mounting Height for Insect Control: 10 ft
-
Max. Mounting Height Environment/Insect: 12 ft / 10 ft
-
Mounting Height for Temperature Control: 12 ft
-
Environmental - Max Height (feet): 12
-
Insect - Max Height (feet): 10
-
Voltage Rating: 460/3/60
-
Voltage Code: H
-
Air Flow Certified (AMCA): Yes
-
Air Curtain Air Volume (CFM): 2758
-
Uniformity (%): 84
-
dBA: 68
-
Horsepower (per motor): 1/2
-
CFMs: 2758
-
Length (in.): 72
-
Depth (in.): 12.75
-
Height (in.): 10.625
-
Amps: 1.6
-
Door width: 72 in.
-
Heating mode: Unheated
-
Motors: (2) 1/2 hp
-
Electrical: 460V, 3 phase, 1.6A
-
Model Number: MRS-STD272-2UH-OB
-
WIDTH (SIDE - SIDE): 72"
-
TYPE: Un-heated
-
Product Dimensions Height: 10.62"
-
Product Dimensions Width: 72.00"
-
Product Dimensions Depth: 12.75"
-
Door Width (Inches): 72
-
Door Height: 8' - 10'
-
Number of Poles: 3
-
Max Volume: 5100
-
Max Velocity: 3475
-
Frequency (Hertz): 60
-
# of Motors: 2
-
Sound dBA: 68
-
FLA (Ampacity): 1.6Amps
