Product Description

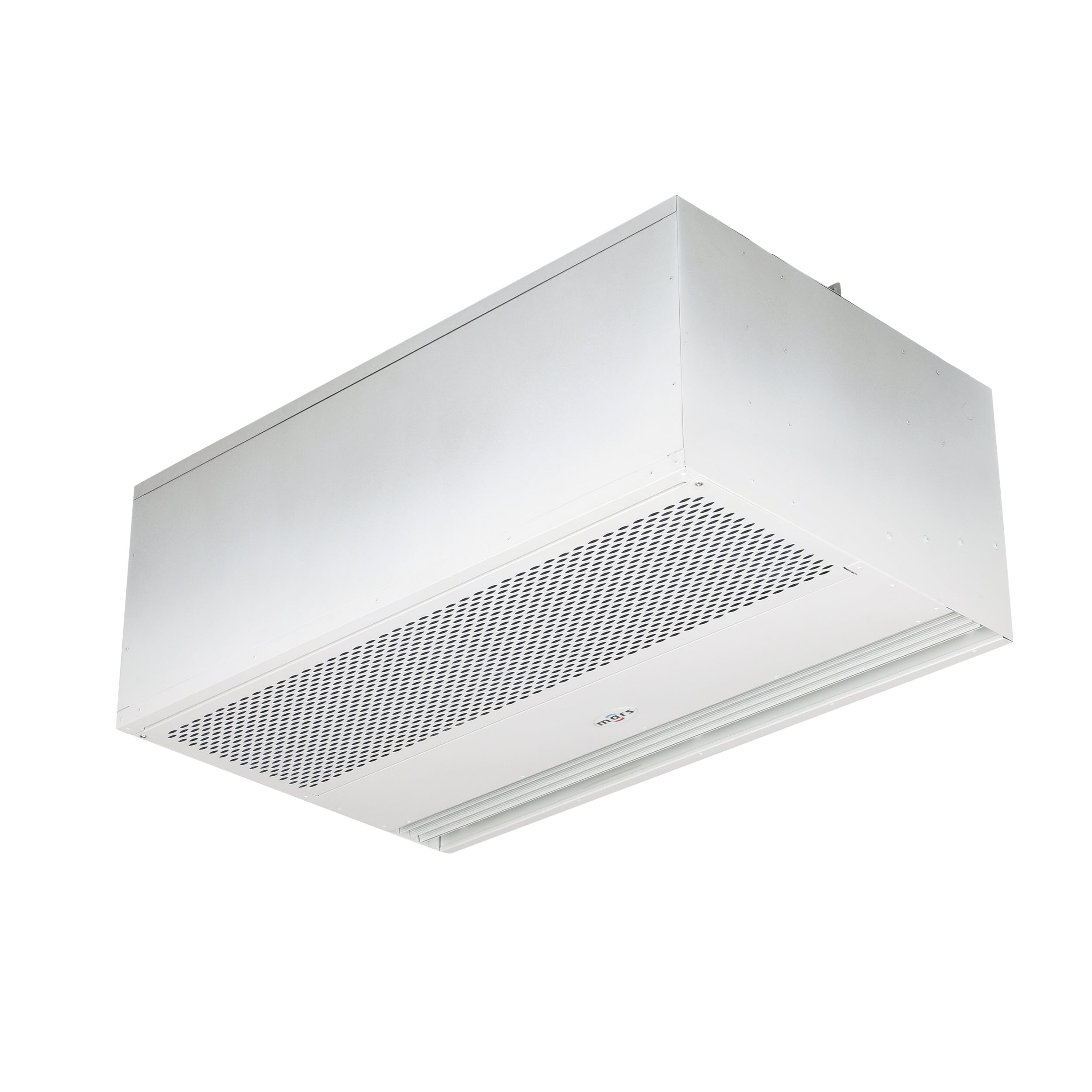

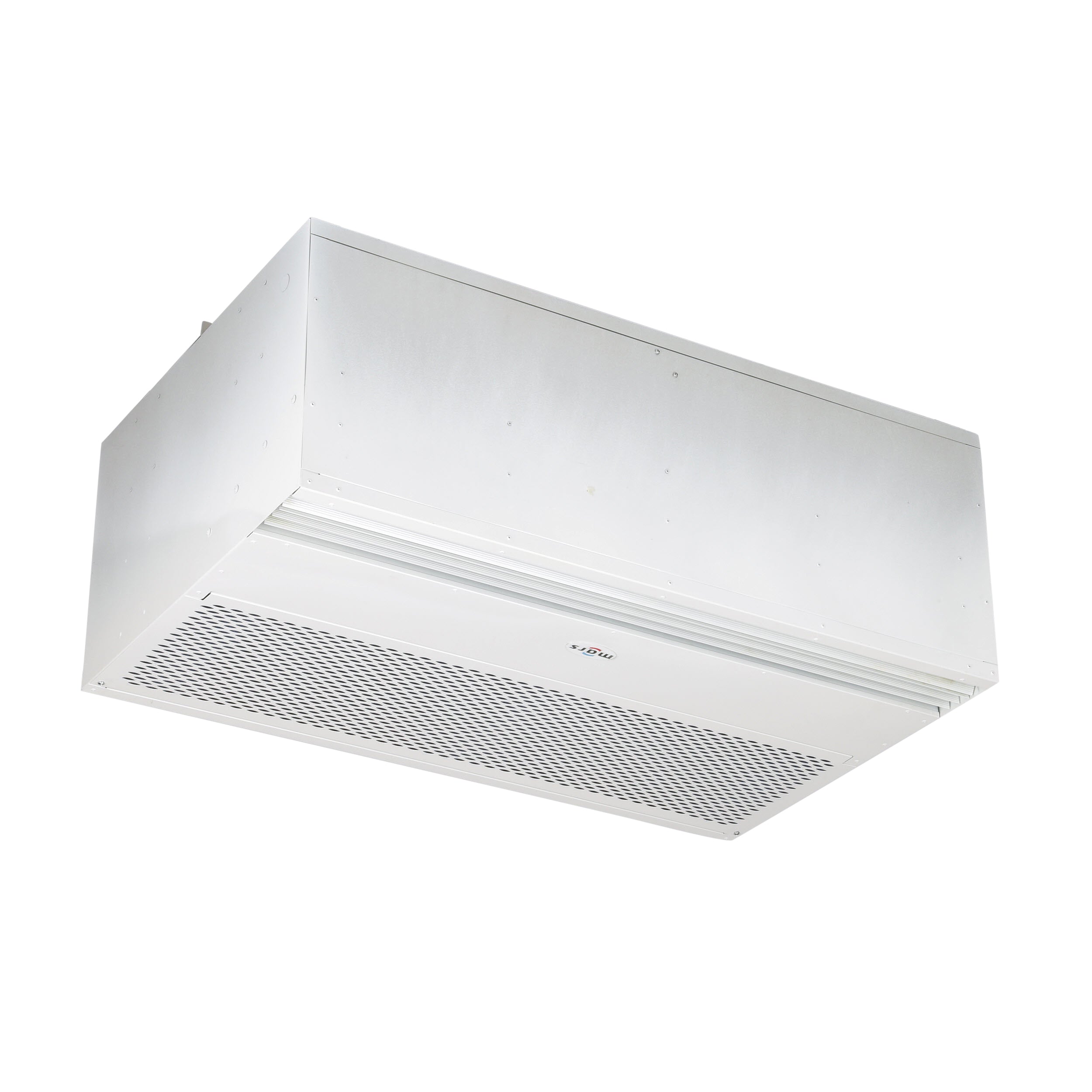

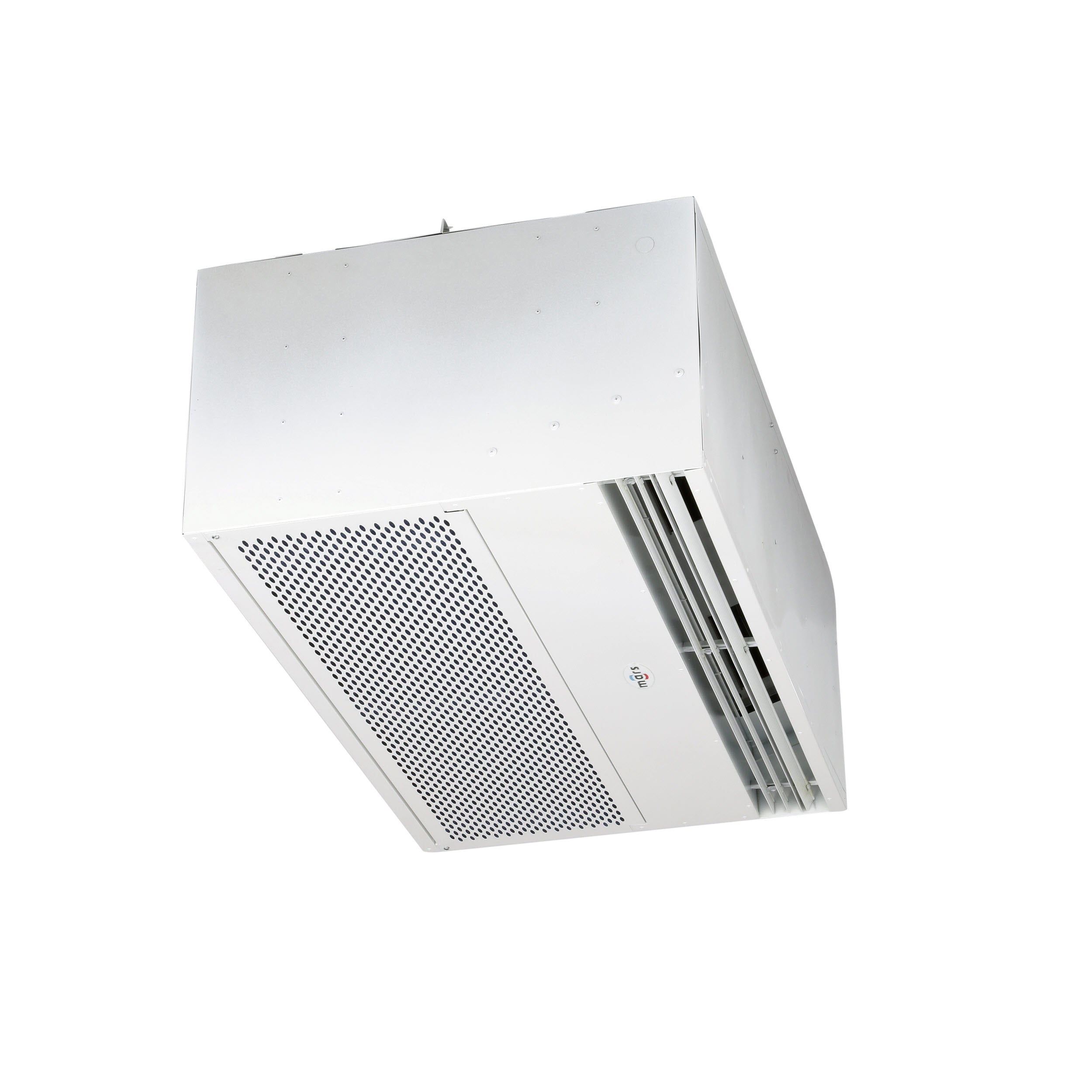

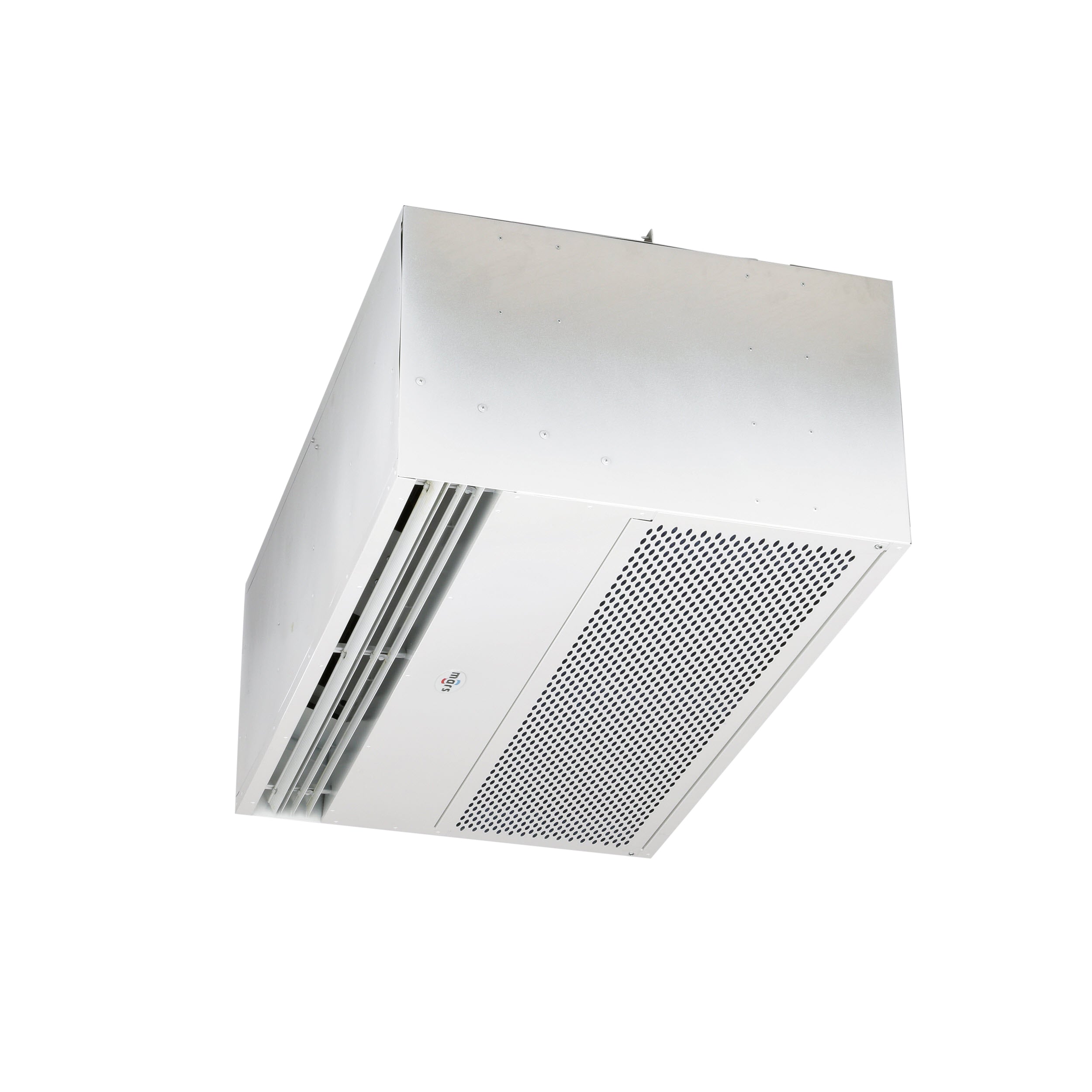

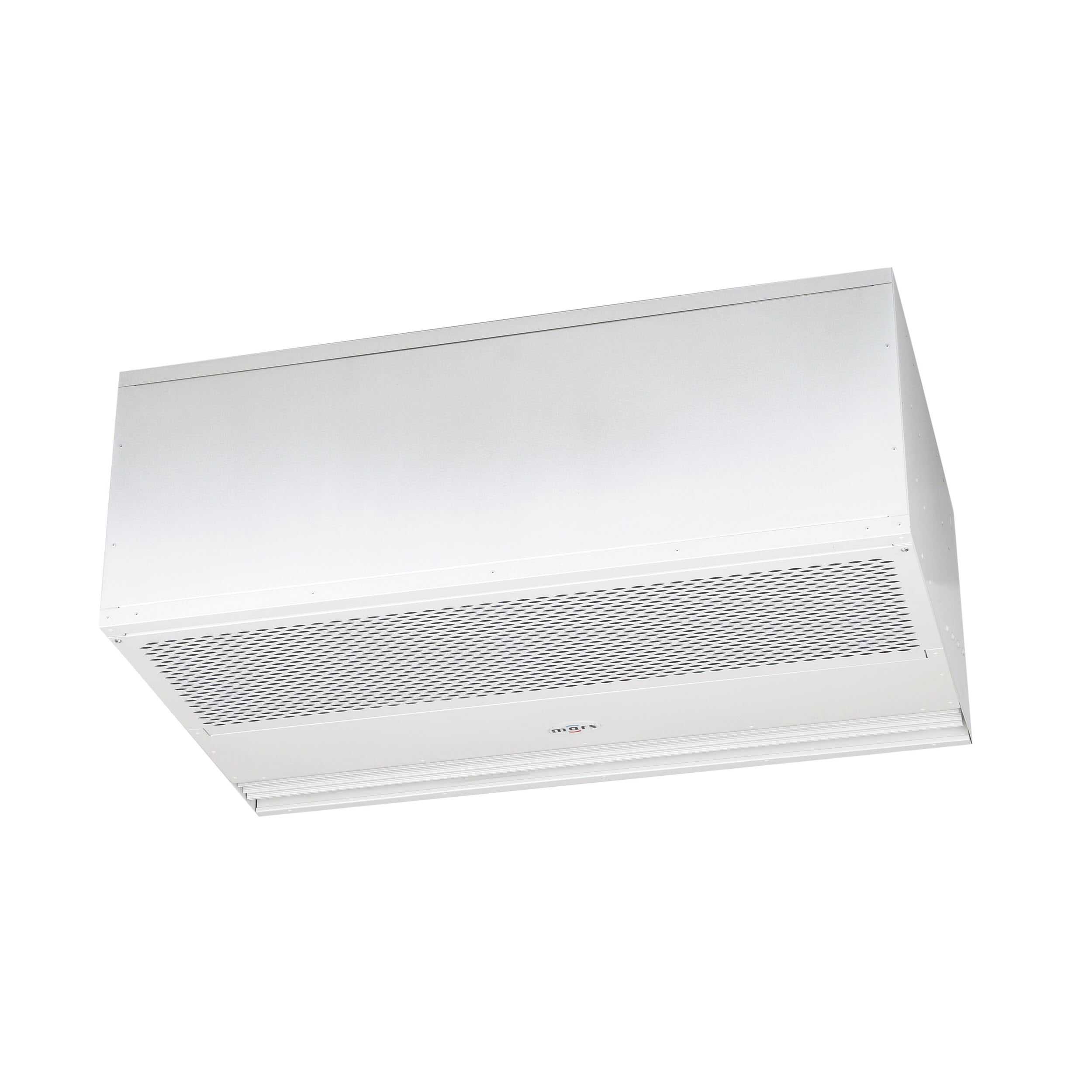

The MARS PH1036-1UA-PW Phantom 10 Series recessed air curtain is designed for 36-inch openings. This unheated air curtain features a 1/2 HP motor and an aluminum cabinet with a pearl white powder-coated finish. It provides an environmental barrier for spaces up to 12 feet and protects from insects up to 10 feet. The unit is ETL certified.
- Designed for 36-inch wide openings
- Features a 1/2 HP motor
- Provides environmental and insect protection
Product Highlights
The MARS PH1036-1UA-PW air curtain offers effective climate control and insect deterrence with its recessed design and durable construction.
Product Information
Standard Information
-
Brand: MARS
-
Manufacturer Part Number: PH1036-1UA-PW
-
Country of Origin: United States
Technical Specifications
-
Item: Air Curtain
-
Depth: 26 in
-
Phase: 1-Ph
-
Width: 36.00"
-
Finish: Powder Coated
-
Height: 15.50"
-
Series: PH10
-
Voltage: 115/1/60
-
Included: Filters
-
Includes: Filters
-
Max. RPM: 1,750 RPM
-
Motor HP: 1/2 hp
-
Requires: Door Limit Switch
-
Washdown: No
-
Frequency: 60 Hz
-
Max. Amps: 5.1
-
Standards: ETL
-
Drive Type: Direct Drive
-
Motor Type: Permanent Split Capacitor
-
Nozzle Width: 36 in
-
Profile Type: Recessed
-
Housing Color: White
-
Maximum Speed: 1,750 RPM
-
Grille Material: Aluminum
-
Motor Enclosure: Totally Enclosed Air Over
-
Voltage - Phase: 115V AC - 1 Phase
-
Air Curtain Item: Recessed Air Curtain
-
Air Curtain Type: Ambient Air
-
Number of Motors: 1
-
Number of Speeds: 1
-
Full Load Current: 5.1 A
-
HEPA Air Cleaning: No
-
Heated/Not Heated: Not Heated
-
Nameplate Voltage: 115V AC
-
Power Consumption: 460 W
-
Air Curtain Heated: No
-
Maximum Air Volume: 1,460 cfm
-
Sound Level @ 10 ft: 66 dBA
-
Air Temperature Rise: Not Applicable
-
Max. Mounting Height: 10 ft
-
Maximum Air Velocity: 3,950 fpm
-
Sanitation Certified: No
-
Air Curtain Air Volume: 1460 cfm
-
For Frame Opening Width: 3 ft
-
Air Curtain Air Velocity: 3400 fpm
-
Heater Power Consumption: Not Applicable
-
Ultraviolet Air Cleaning: No
-
Air Curtain dBA @ 10 Feet: 66
-
Motor Horsepower per Motor: 1/2 hp
-
Air Curtain Max. Door Width: 3 ft
-
Air Curtain Housing Material: Aluminum
-
Overall Dimensions W x H x D: 36 in x 17 in x 26 in
-
Mounting Height for Insect Control: 10 ft
-
Mounting Height for Temperature Control: 12 ft
-
Max Door Height: 12'
-
CFM High: 2550
-
FLA 1 Phase-115V: 5.1
-
Heating Option: Unheated
-
Decibels (DB): 66
-
Size: 36"
-
Material: Aluminum
-
Horse Power: 1/2
-
Type: Unheated
-
Max Volume (CFM): 2550
-
Environmental - Max Height (feet): 12
-
Insect - Max Height (feet): 10
-
Heating Mode: Unheated
-
Unit Width (inches): 36
-
Unit Height (inches): 17
-
Wind Stopping Capability (MPH): 12
-
Motors: 1
-
Air Flow Certified (AMCA): Yes
-
Voltage Rating: 115/1/60
-
Voltage Code: A
-
Amps: 5.1
-
Uniformity (%): 91
-
dBA: 66
-
Max. Door/Window Height (ft.): 12
-
Max. Height Insect Block (ft.): 10
-
Heat: No
-
Length (in.): 36
-
Certifications: ETL Listed, AMCA
-
Product Type: Unheated
-
Manufacturer: Mars
-
Model Number: MRS-PH1036-1UA-PW
-
WIDTH (SIDE - SIDE): 36"
-
MAX. OPENING HEIGHT (WINDOW/DOOR): 10 Ft
-
HORSEPOWER PER MOTOR: 1/2
-
Electrical Compatibility: 115 volts, 60 Hz, 1-Ph
-
Motor: 1/2 HP motor delivers targeted airflow
-
Cabinet: Powder coated pearl white aluminum
-
Listing: ETL sanitation listed for commercial settings
-
Openings: Fits openings up to 8 feet high
-
Hertz: 60
-
Unit Width: 36 in
