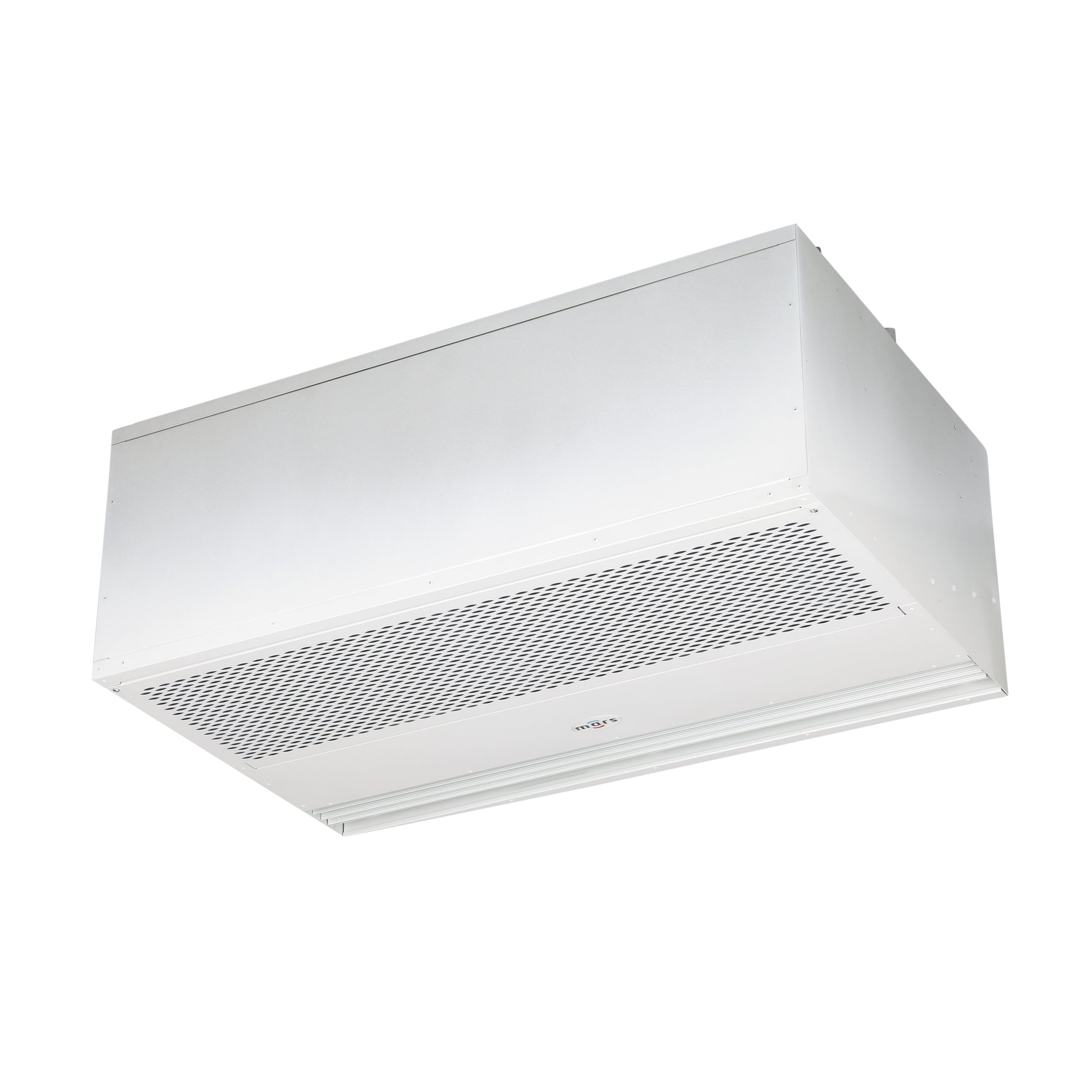

Mars PH10144-4UA-PW Phantom 10 Series Unheated Air Curtain - 144 inches

Product Description

The Mars Air Systems PH10144-4UA-PW Phantom 10 Series air curtain provides an environmental barrier up to 12 feet and protects spaces from insects up to 10 feet. This unheated air door features four 1/2 horsepower motors and is designed to be recessed into the ceiling. It includes a washable polyester filter and features durable aluminum construction.

• Provides an environmental barrier up to 12 feet
• Protects your space from insects up to 10 feet
• Recessed into the ceiling, blending into its surroundings

Product Highlights

The PH10 series air curtain offers a cost efficient barrier that will blend in to any environment. Ideal for shipping/receiving doors, customer entrances and cold storage rooms.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH10144-4UA-PW

Technical Specifications

• Max. Door/Window Height (ft.): 12
• Max. Height Insect Block (ft.): 10
• Heat: No
• Horsepower: 1/2 (per motor)
• Voltage: 110-120V
• Depth (in.): 26
• Height (in.): 17
• Length (in.): 144
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
• Manufacturer: Mars Air Systems
• Model Number: PH10144-4UA-PW
• Full load amps: 20.4 A
• Sound pressure level: 71 dBA
• Average velocity: 1947 fpm
• Volume: 5840 cfm
• Motors: 4 motors
