MARS Motors and Armatures 61445 Mars 40A 3 Pole 24V Coil Contactor with Box Lug/Dual Replacement MPN

Product Description

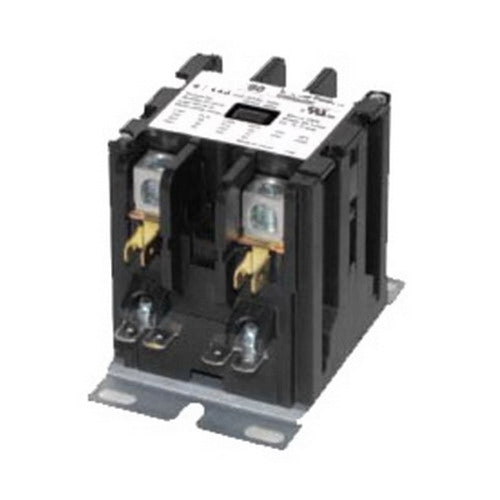

The MARS Motors and Armatures 61445 is a three-pole contactor designed for HVAC applications. This unit operates at a coil voltage of twenty-four volts and has a voltage rating of six hundred volts. The MPN 61445 is suitable for various installations where robust control is needed.

• Coil Voltage: 24V
• Full Load Amps-Inductive: 40A
• Number of Poles: 3

Product Highlights

This contactor is equipped with box lug terminals for easy installation and maintenance. Its enclosed design minimizes dust intrusion, enhancing durability. Auxiliary switch compatibility allows for additional operational features.

Product Information

Standard Information

• Brand: MARS Motors and Armatures
• MPN: 61445

Technical Specifications

• Coil Voltage: 24V
• Voltage Rating: 600V
• Frequency Rating: 50/60 Hz
• Dimensions: 2.38 inches W x 2.87 inches H x 3.69 inches D
• Full Load Amps-Resistive: 50A
• Number of QC Terminals Per Pole: 2
• Lug or Screw Terminal: Box Lug/Dual QC
