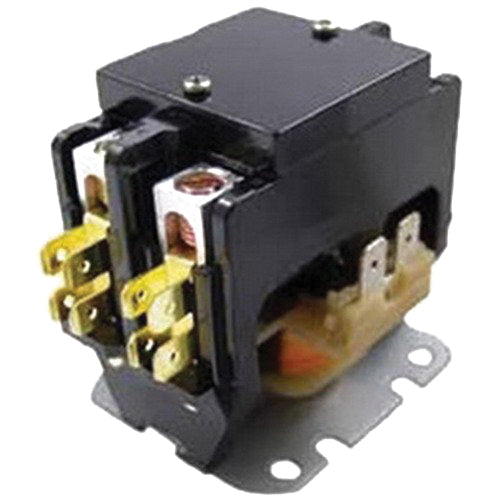

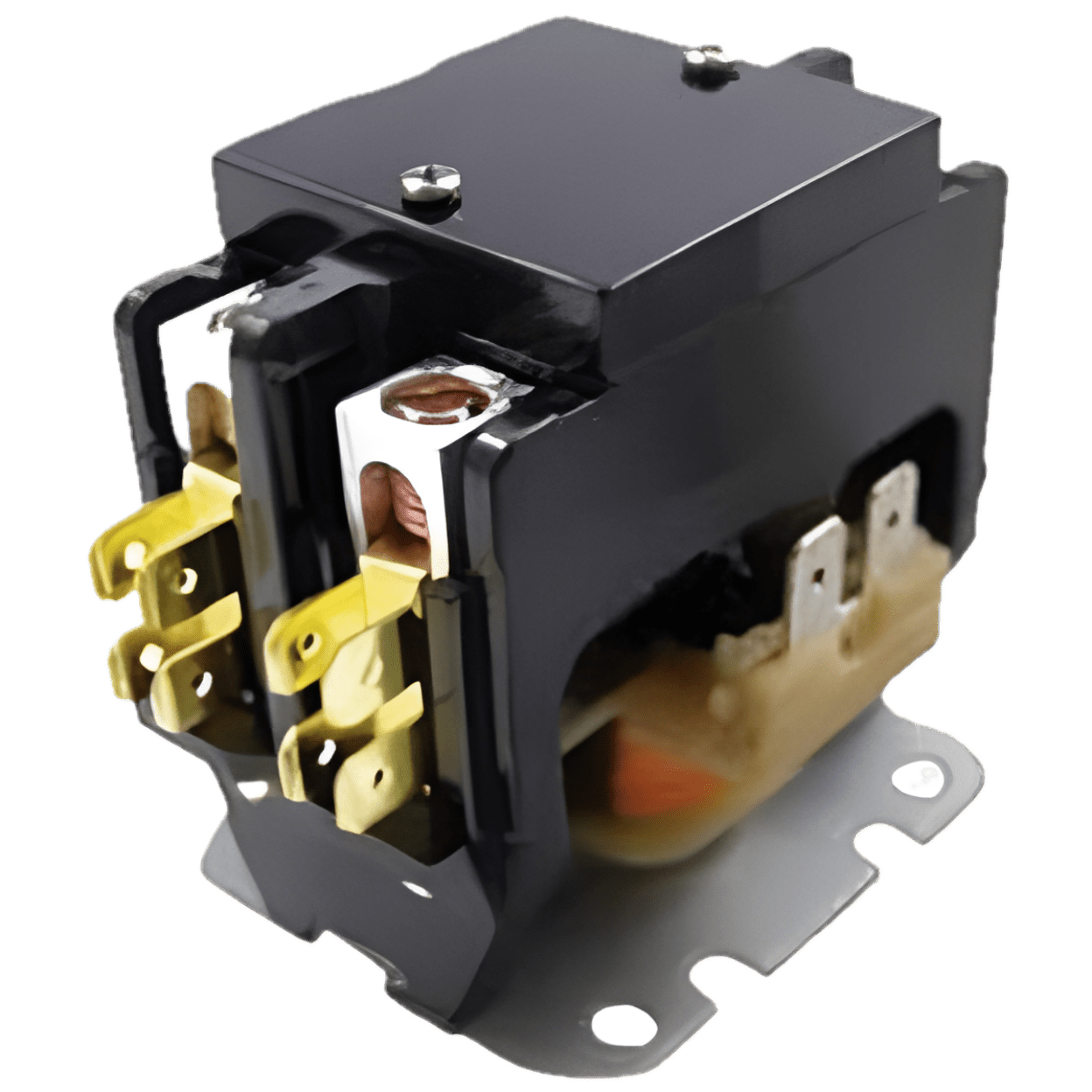

MARS Motors and Armatures 17425 Jard 40A 2-Pole 24V Coil Definite Purpose Contactor with Lugs

Product Description

The MARS Motors and Armatures 17425 is a Jard Definite Purpose Contactor designed for various HVAC applications. This contactor operates on a coil voltage of twenty-four volts. It features two poles and is compatible with both refrigeration and electric heating systems.

• Universal mounting base allows for easy replacement of existing contactor brands.
• Includes multiple mounting holes for versatile installation.
• Designed with silver cadmium oxide contacts for reliable operation.

Product Highlights

This contactor is ideal for technicians working in HVAC settings due to its easy installation and compatibility with diverse applications.

Product Information

Standard Information

• Brand: MARS Motors and Armatures
• Coil Voltage: 24V

Technical Specifications

• Frequency Rating: 50/60 Hz
• Number of Poles: 2
• Lug or Screw Terminal: Box Lug
• Width: 3.29 inches
• Height: 2.45 inches
• Depth: 2 inches
• QC Terminals Per Pole: 4
• Full Load Amps-Inductive: 40A
• Full Load Amps-Resistive: 50A
