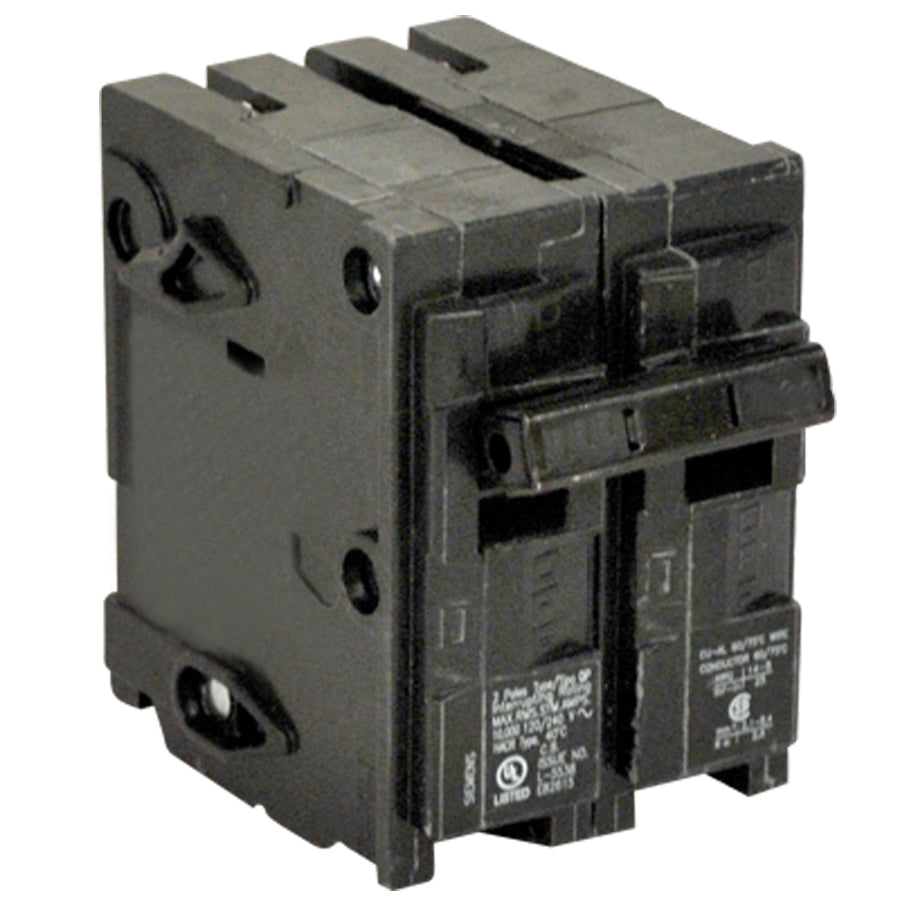

Mars mars-83228 60 Amp 2-pole Ite Circuit Breaker

Product Description

The MARS mars-83228 is a 60-amp, 2-pole ITE-style circuit breaker designed for use in residential and light commercial electrical panels. It provides overcurrent protection by automatically interrupting the circuit when current exceeds its rated threshold, protecting wiring and connected equipment from damage. The Q260 designation identifies it as a standard loadcenter-style breaker compatible with ITE and related panel families. Licensed electricians and electrical contractors are the primary installers of this component during new construction, panel upgrades, and service replacements.

This breaker is suited for 240-volt, double-pole branch circuit applications such as HVAC equipment, water heaters, dryers, and subpanels in residential and light commercial settings. Its 60-amp rating covers common high-draw loads that require a dedicated two-pole overcurrent device. The Q260 form factor is a widely recognized configuration in the industry for panel replacement and upgrade work.

Key Features

• 60-amp rated current capacity for high-draw branch circuits
• 2-pole configuration provides 240-volt overcurrent protection
• ITE Q260-style form factor for panel compatibility
• Automatic trip mechanism interrupts the circuit under overload or short-circuit conditions
• Designed for loadcenter installation in residential and light commercial panels

Compatibility

Designed as an OEM-style replacement 2-pole circuit breaker for ITE-style residential and light commercial loadcenters accepting Q-line breakers.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Always shut off main panel power before removing or installing a circuit breaker. Verify that the panel accepts Q-line style breakers before installation. Do not exceed the breaker's 60-amp current rating when sizing the protected circuit.

Technical Specifications

• Amperage Rating: 60 amps
• Number of Poles: 2
• Style: Q260 ITE-type
• UNSPSC Code: 31161809

Standard Information

• Brand: MARS
• Manufacturer Part Number: mars-83228
