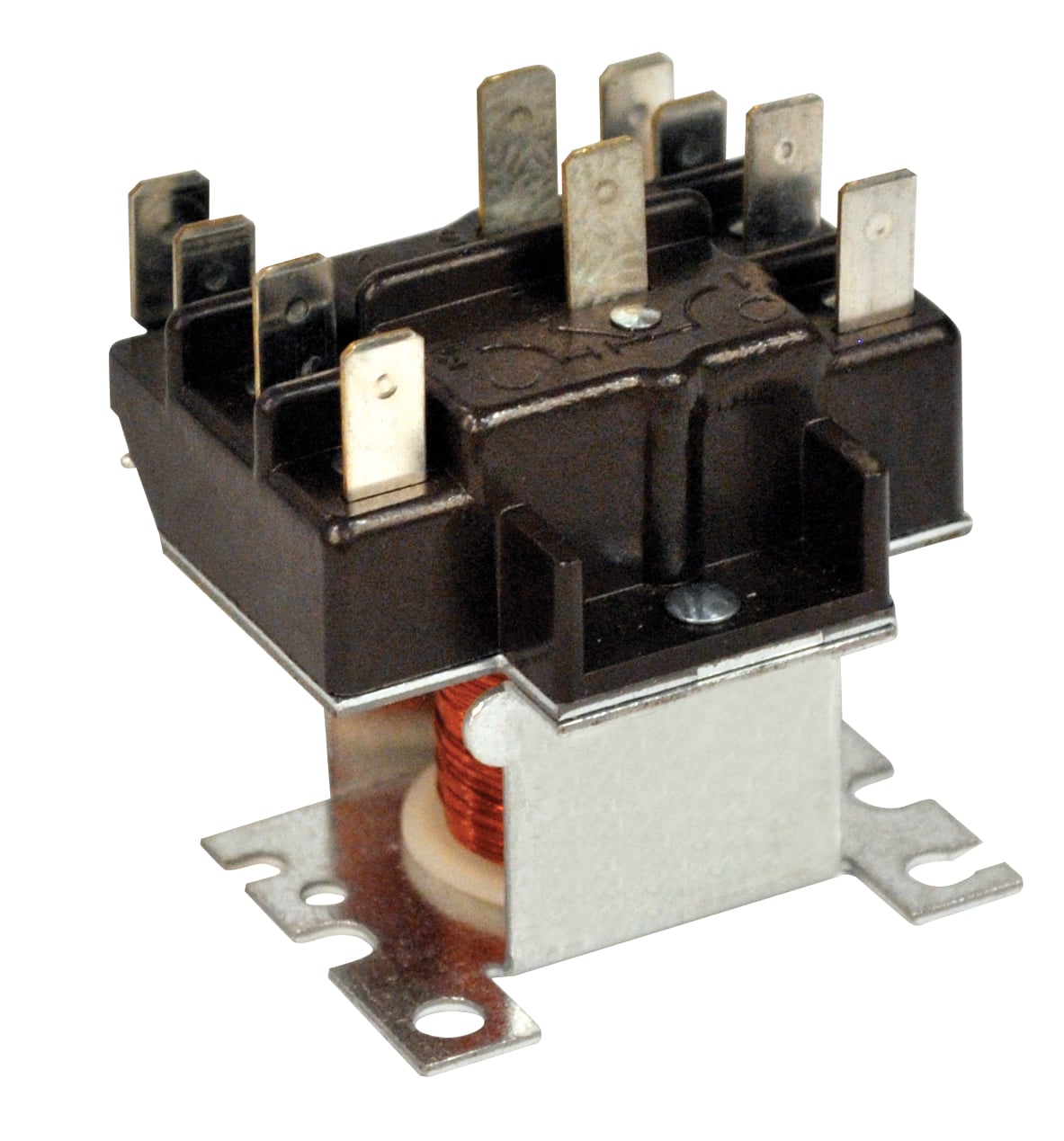

Mars M92340 dpdt General Purpose Switching Relay 24V

Product Description

The MARS M92340 DPDT general purpose relay is suitable for switching applications in HVAC and refrigeration. It can also be used in appliances, vending machines, fan controls, and business machines, provided the device is within the relay's electrical limits. The relay is AC operated with quick connect terminals.

• Switching Relay
• Contact Voltage Rating: 277 Volt AC at 50/60 Hertz
• Coil Voltage: 24 Volt AC at 50/60 Hertz

Product Highlights

This DPDT relay is designed for general purpose switching applications, including HVAC and refrigeration systems.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M92340

Technical Specifications

• Manufacturer Name: Mars
• Type: AC Operated
• Contact Configuration: 2PDT
• Contact Voltage Rating: 277 Volt AC at 50/60 Hertz
• Contact Current Rating: 24 Amp at 277 Volt AC (Resistive), 15 Amp at 277 Volt AC (Inductive)
• Coil Voltage: 24 Volt AC at 50/60 Hertz
• Terminal Type: Quick Connect
• Approval: UL, CUR
• Application: Heating, Air Conditioning, Refrigeration
• Hold/Pick-Up Voltage Rating: 19.2 Volt AC
• Drop-Out Voltage: 4.8 Volt AC
• Power Terminal Configuration: 1-NC/NO, 2 to 3 (NC), 4-NC/NO, 5-NC, 6-NO
