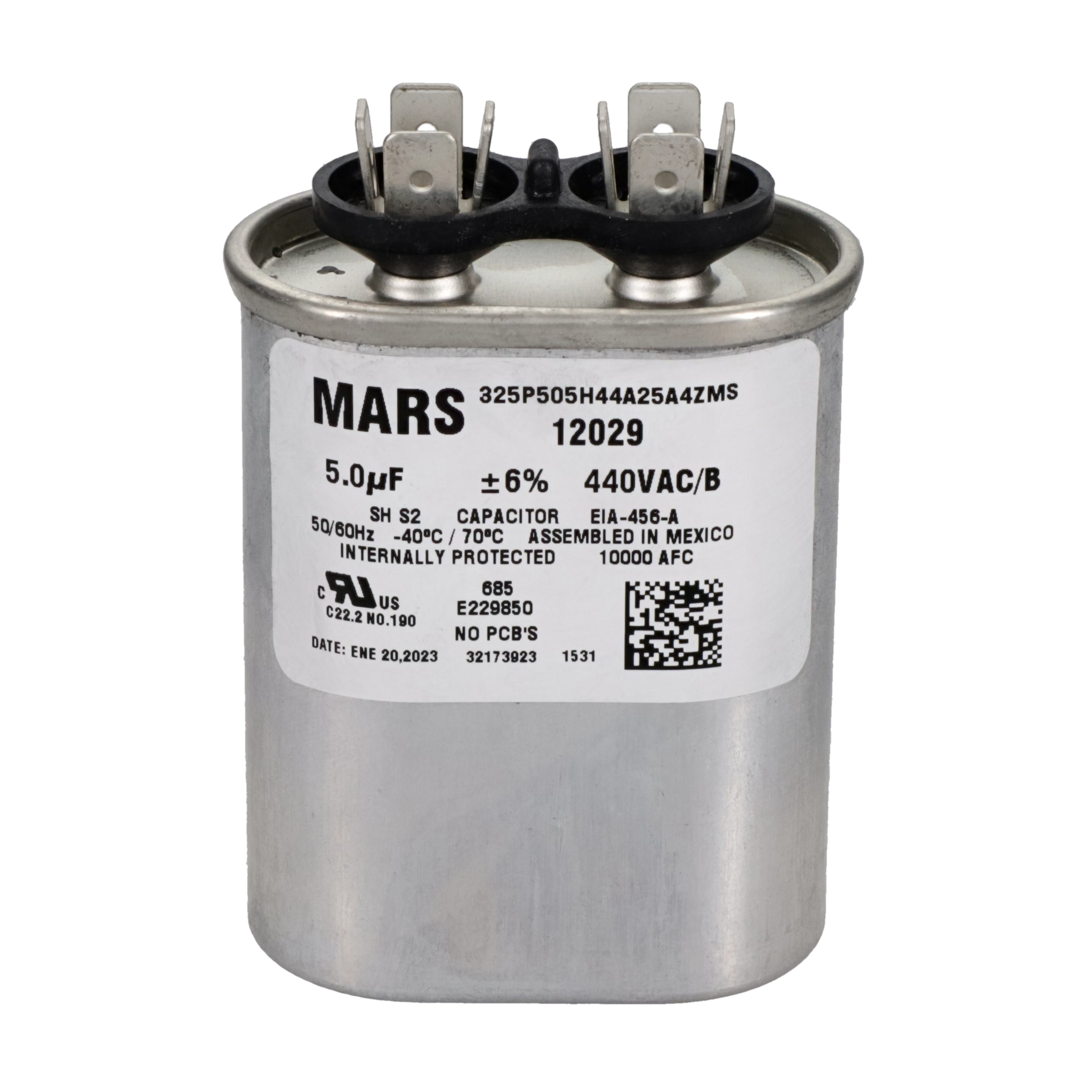

Mars M12929 5 mfd 440v oval run capacitor

Product Description

The MARS M12929 is a 5 MFD 440V oval run capacitor. This single-section capacitor is designed for motor run applications and general replacements. It features a physical interrupter for safety and four terminals. The capacitor has an aluminum case and operates at 50/60 Hz.

• Low-cost alternative to popular models
• Non-PCB capacitor with physical interrupter
• Perfect for general replacements

Product Highlights

The MARS run capacitor provides a wide selection of ratings and is perfect for motor run applications.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M12929
• Country of Origin: MEX

Technical Specifications

• Capacitance: 5 uF
• Voltage: 440 VAC
• Capacitor Type: Motor Run
• Frequency Rating: 50/60 Hz
• Shape: Oval
• Temperature Rating: -40 to 70 deg C
• Case Material: Aluminum
• Dimensions: 2.125 in H x 2.056 in W
• Type: Single Section
• Cycle/Hertz: 50/60 Hz
• Approvals: UL Listed; UL Recognized
