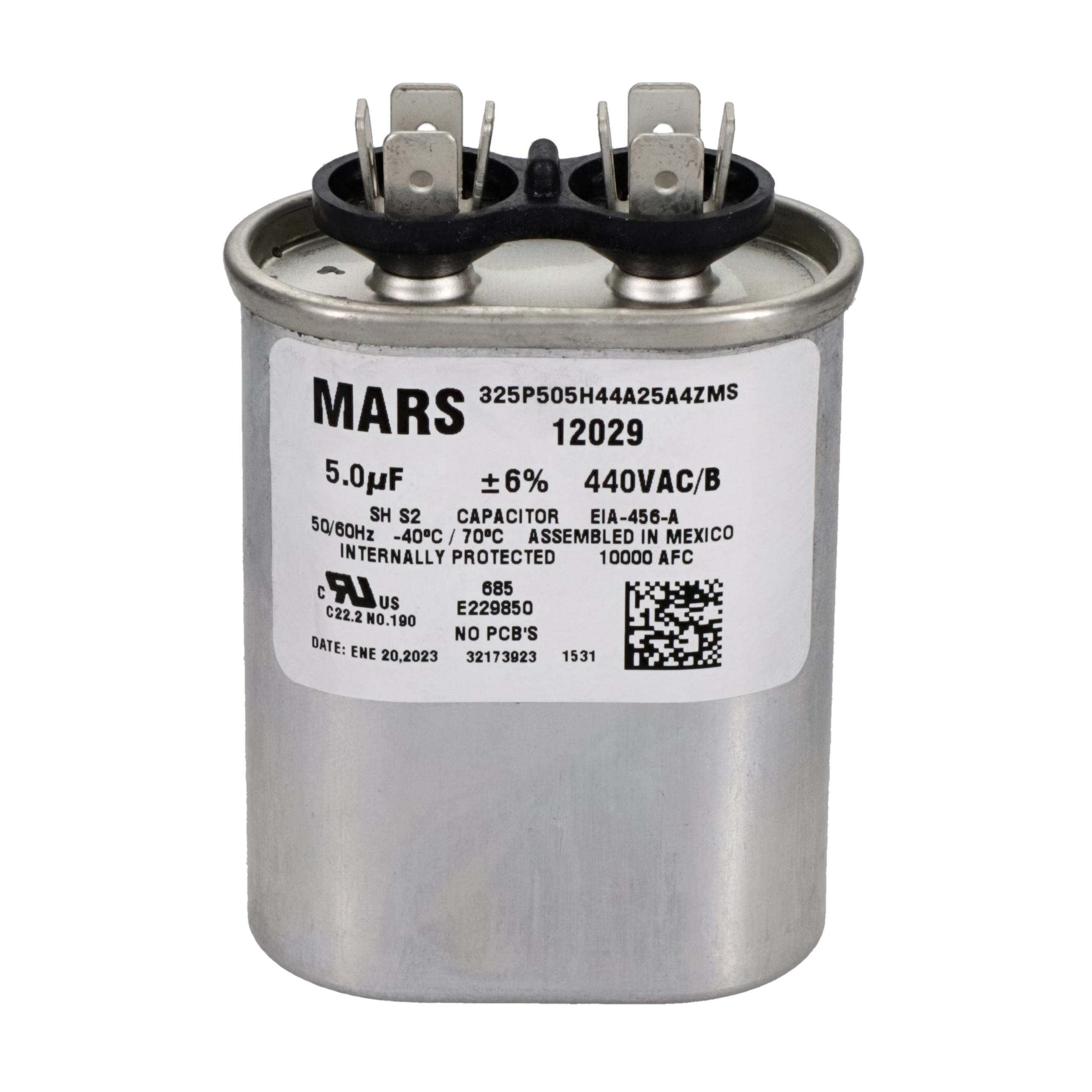

Mars M12929 5 mfd 440v Oval Run Capacitor

Product Description

The MARS M12929 is a 5 MFD 440V oval run capacitor. This single-section capacitor is designed for motor run applications and general replacements. It features a physical interrupter for safety and four terminals. The capacitor has an aluminum case and operates at 50/60 Hz.

• Provides a low-cost alternative to popular models
• Non-PCB capacitor with physical interrupter for safety
• Perfect for general replacements

Product Highlights

The MARS M12929 capacitor is ideal for motor run applications requiring 5 MFD capacitance at 440V.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M12929
• Country of Origin: Import

Technical Specifications

• Capacitance: 5 uF
• Voltage: 440 VAC
• Shape: Oval
• Frequency Rating: 50/60 Hz
• Capacitor Type: Motor Run
• Case Material: Aluminum
• Temperature Rating: -40 to 70 deg C
• Type: Single Section
• Cycle/Hertz: 50/60 Hz
• Capacitor MFD µF: 5
• Approvals: UL Listed; UL Recognized
• Height: 1.5
• Length: 3.7
• Width: 2.3
