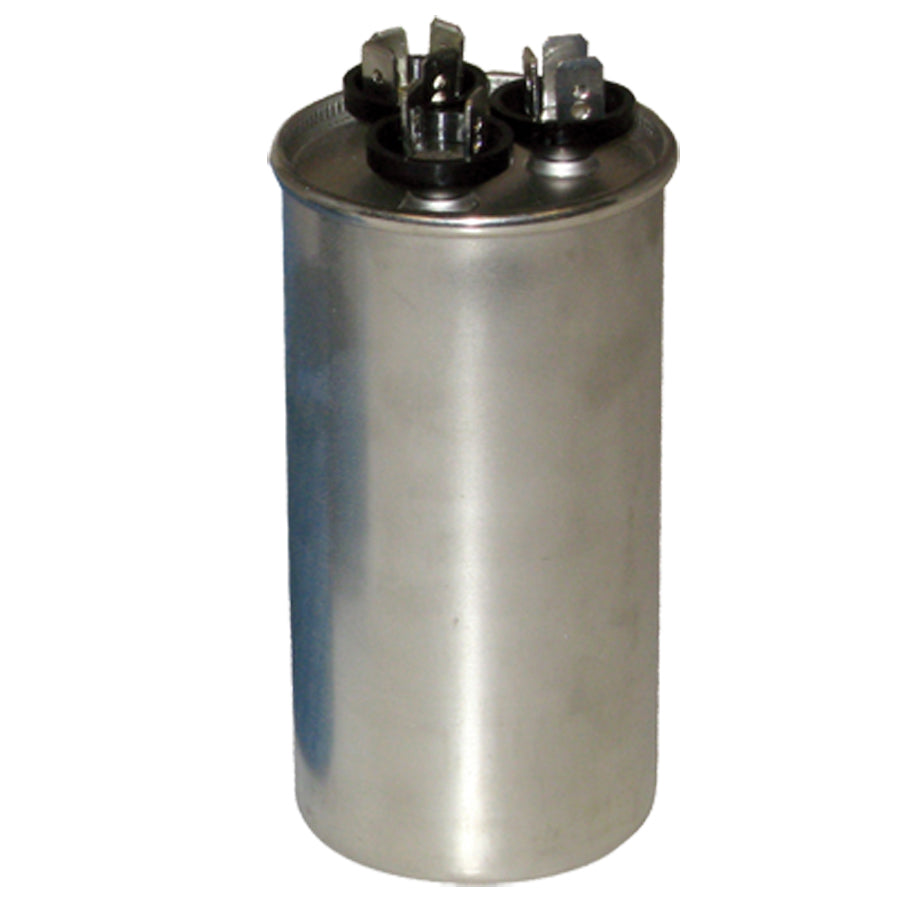

Mars M12795 60/7.5 MFD 440Vac Round Dual Capacitor replacement mpn

Product Description

The MARS M12795 dual section run capacitor serves two microfarad applications and can obtain many other microfarad ratings by making various combinations of parallel connections. This capacitor features a physical interrupter for safety and self-clearing metalized polypropylene film. It is perfect for general replacements.

• Dual Section Run Capacitors are Used Primarily to Serve Two Microfarad Applications
• Non-Pcb Capacitors
• Physical Interrupter Makes Our Capacitors Safe

Product Highlights

This dual section motor run capacitor is suitable for use on a 129 series AC motor, air conditioning system, and compressor.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M12795

Technical Specifications

• Manufacturer Name: Mars
• Type: Dual Section Motor Run, Round
• Used On: 129 Series AC Motor, Air Conditioning System, Compressor
• Voltage Rating: 440 Volt 50/60 Hertz
• Capacitance: 60/7.5 microfarad
• Temperature Rating: -40 to 70 Deg C
• Number of Terminals: 4, 3, 2
• Material: Aluminum Case
• Size: 2" Width x 5.25" Height
• Approval: UL, CSA
