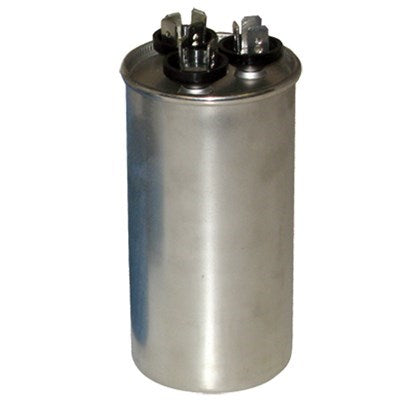

Mars M12788 45/5 MFD 440Vac Round Dual Capacitor

Product Description

The MARS M12788 dual section run capacitor serves two microfarad applications and can obtain many other microfarad ratings by making various combinations of parallel connections. It is perfect for general replacements. The capacitor features self-clearing metalized polypropylene film and a physical interrupter for safety.

• Dual Section Run Capacitors
• Non-Pcb Capacitors
• Physical Interrupter Makes Our Capacitors Safe
• Perfect for General Replacements
• Self-Clearing Metalized Polypropylene Film

Product Highlights

This dual section run capacitor is suitable for use in 129 series AC motors, air conditioning systems, and compressors.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M12788

Technical Specifications

• Manufacturer Name: Mars
• Type: Dual Section Motor Run, Round
• Used On: 129 Series AC Motor, Air Conditioning System, Compressor
• Voltage Rating: 440 Volt 50/60 Hertz
• Capacitance: 45/5 microfarad
• Temperature Rating: -40 to 70 Deg C
• Number of Terminals: 4, 3, 2
• Material: Aluminum Case
• Size: 2" Width x 4.38" Height
• Approval: UL, CSA
