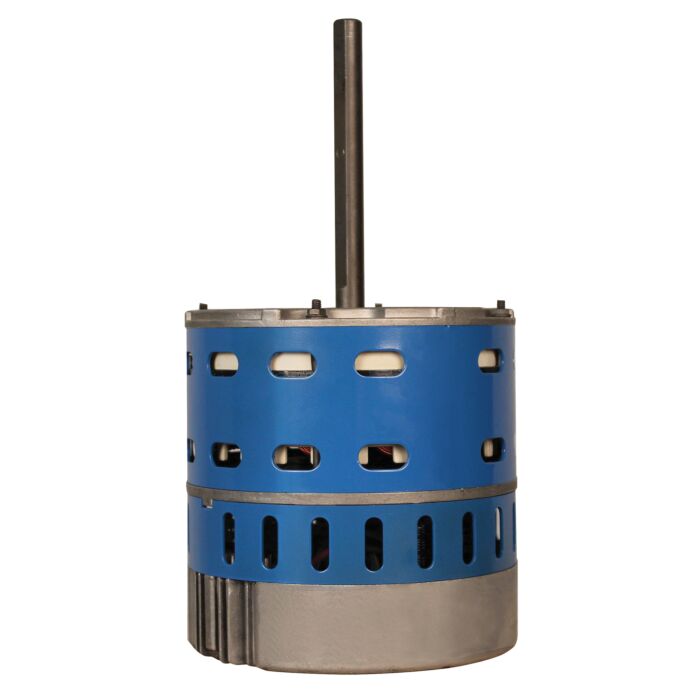

Mars M10857 ecm ac motor 1 hp

Product Description

The MARS M10857 is an ECM AC motor with a horsepower of 1 hp. It features a 120/240V voltage rating and a frequency of 60/50 Hz. This motor has a speed of 1075 rpm and an OAO enclosure, and it connects directly to OEM harnesses.

• Azure ECM Direct Drive Variable Speed
• Ball bearing, Thermal Overload Protection
• Multi-HP Dual Voltage

Product Highlights

This motor is designed for variable speed applications and offers high efficiency. It is suitable for various OEM variable speed and constant torque applications.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M10857
• Country of Origin: United States

Technical Specifications

• Amperage Rating: 11.5/7.0 A Full Load
• Bearing Type: Ball
• Enclosure Type: OAO
• Frame: 48
• Frequency Rating: 60/50 Hz
• Horsepower: 1 hp
• Insulation Class: Class B
• Mounting Type: Belly Band
• Number of Speeds: 5
• Phase: 1
• Rotation: REV+FWD
• Service Factor: 1
• Shaft Size: 1/2 in Dia x 4.94 in L
• Speed: 1075 rpm
• Temperature Rating: 55 deg C
• Type: ECM
• Voltage Rating: 120, 240 V
• Brand: Mars
• Manufacturer: Mars
• Manufacturer Part Number: M10857
• Motor Type: ECM
• RPM: 1075
• Voltage: 115-230V
• Product Type: MOTORS
