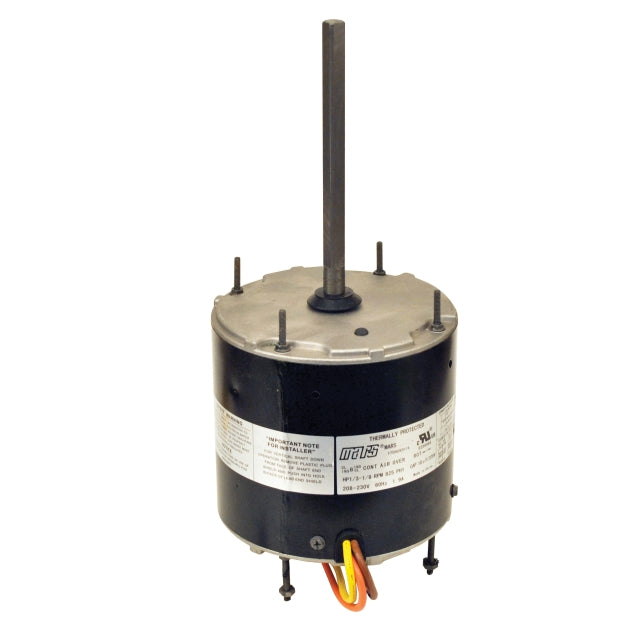

Mars M10465 Condenser Fan 1/6-1/3 Multi Hp Cf

Product Description

The MARS M10465 condenser fan motor is a multi-horsepower motor designed for A/C or heat pump applications. It features Rheem mounting holes with screws installed and a water slinger on the shaft. Suitable for thru bolt or band mounting.

• Multi-Horsepower Condenser Fan Motor
• Rheem mounting holes with screws installed
• Water slinger on shaft

Product Highlights

This condenser fan motor is ideal for HVAC/R applications, offering versatile mounting options and thermal overload protection.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M10465

Technical Specifications

• Enclosure Type: TEAO
• Power Rating: 1/6 to 1/3 HP
• Voltage Rating: 208 to 230 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 2.6 Amp
• Number of Speeds: 2
• Speed Rating: 1075 RPM
• Reversible: Yes
• NEMA Frame Size: 48
• Insulation Class: B
• Mounting: All Angle
• Application: HVAC/R, Air Conditioner, Heat Pump
• Approval: UL, CUL
• Type: Permanent Split Capacitor
• Bearing Type: Ball
• Diameter: 5-1/2 Inch
• Shaft Size: 1/2 Inch Diameter x 5 Inch Length
• Lead Length: 38 Inch
• Ambient Temperature Rating: 60 Deg C
• Motor Thermal Protection: Auto
• Rotation: Clockwise, Counter Clockwise
• RPM Range: 1001-1100
• Motor Phase: 1
• Motor RPM: 1075
