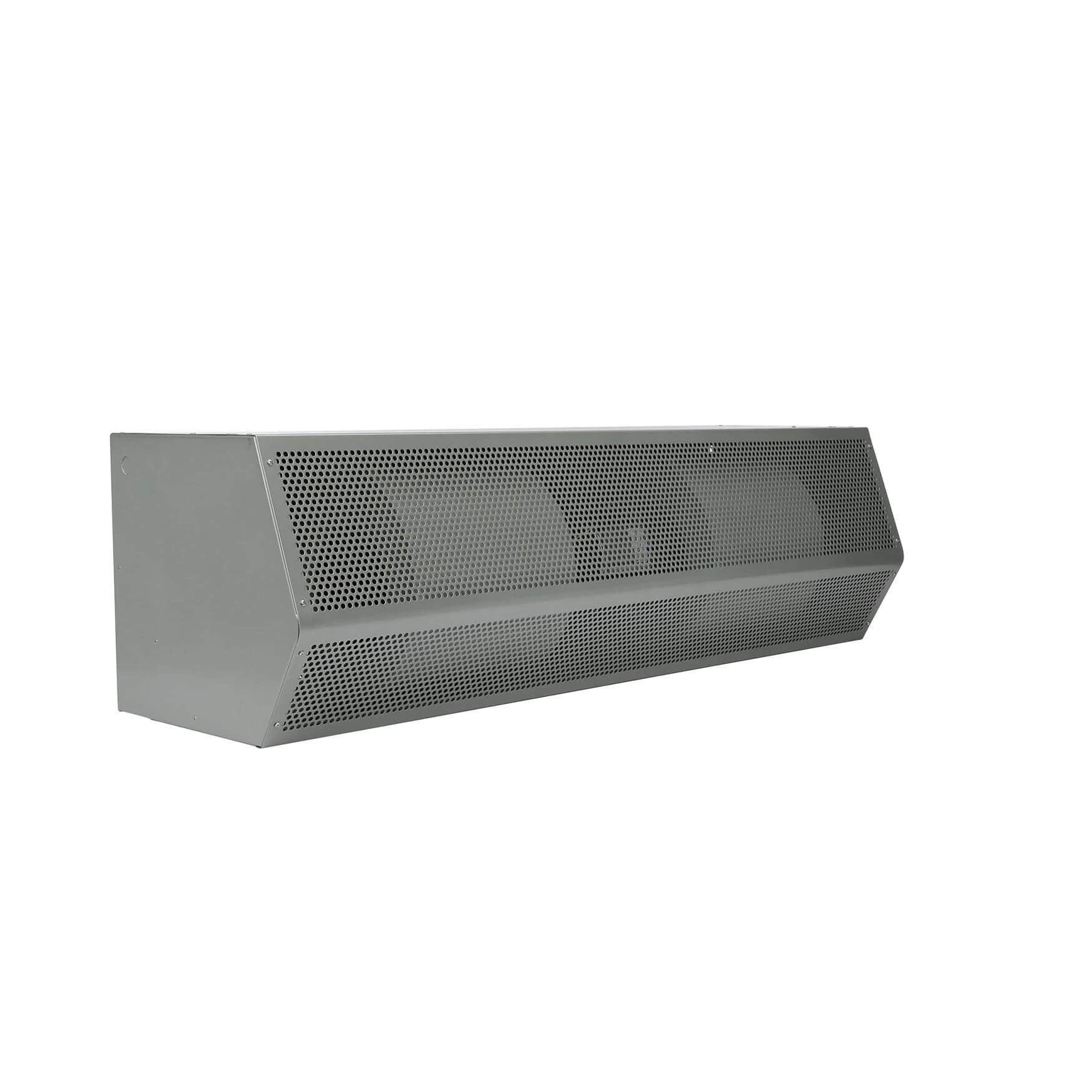

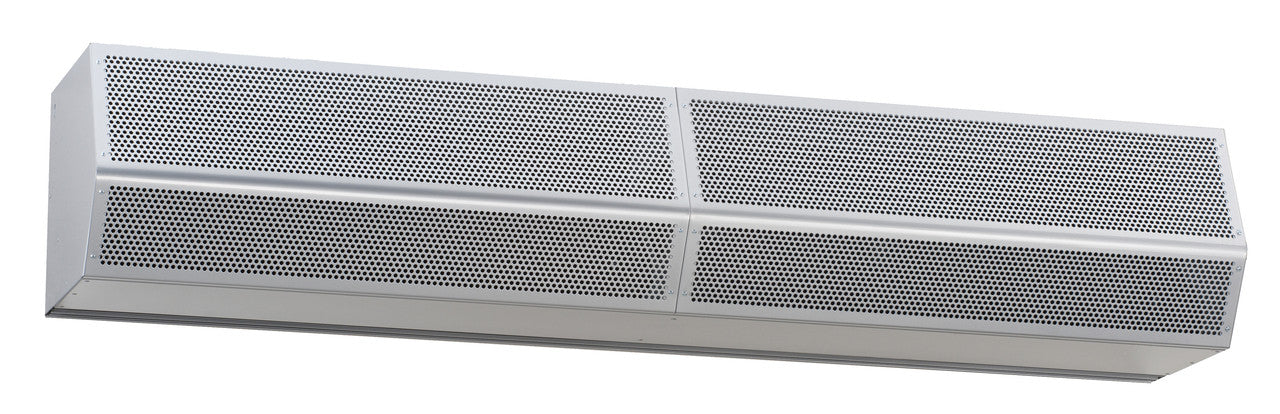

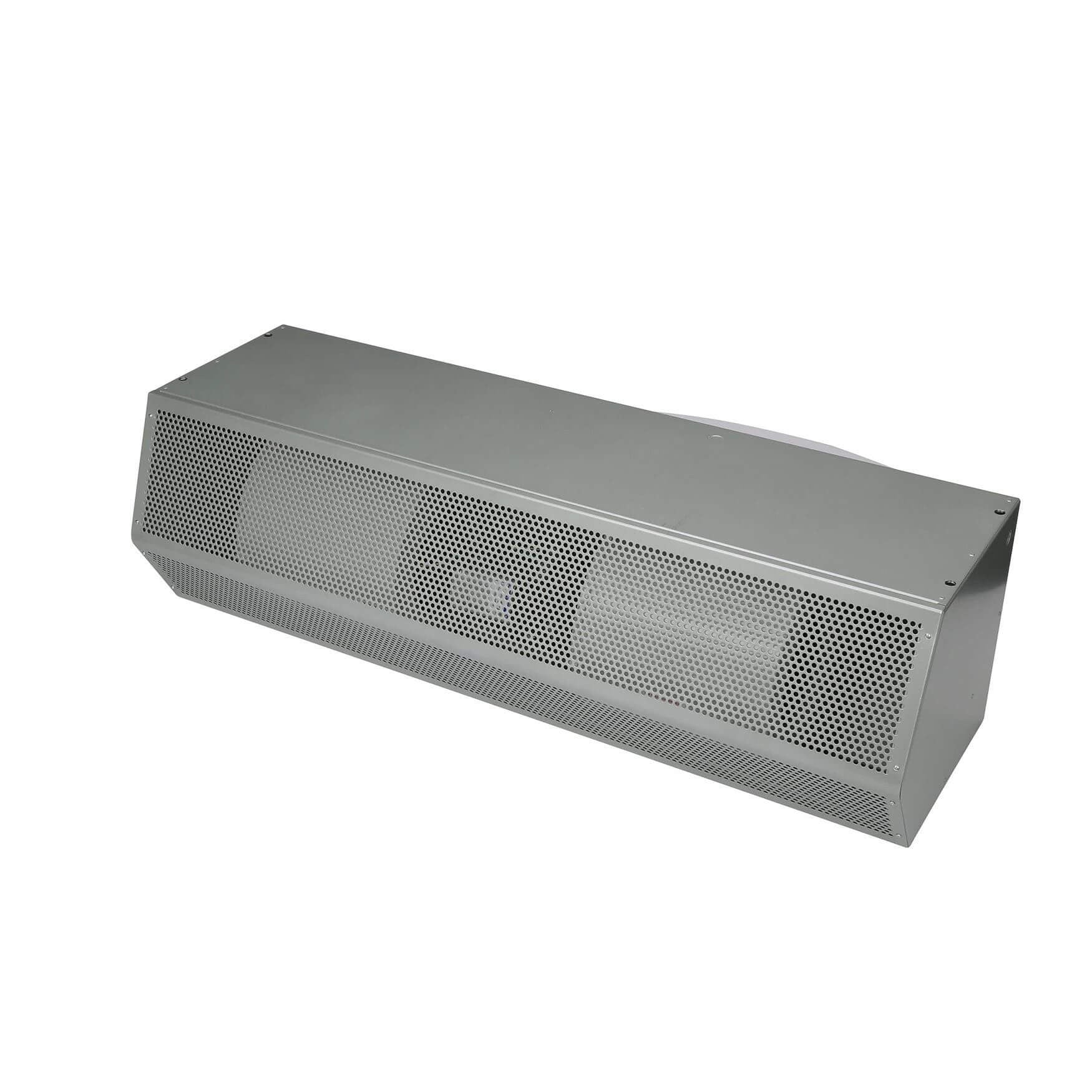

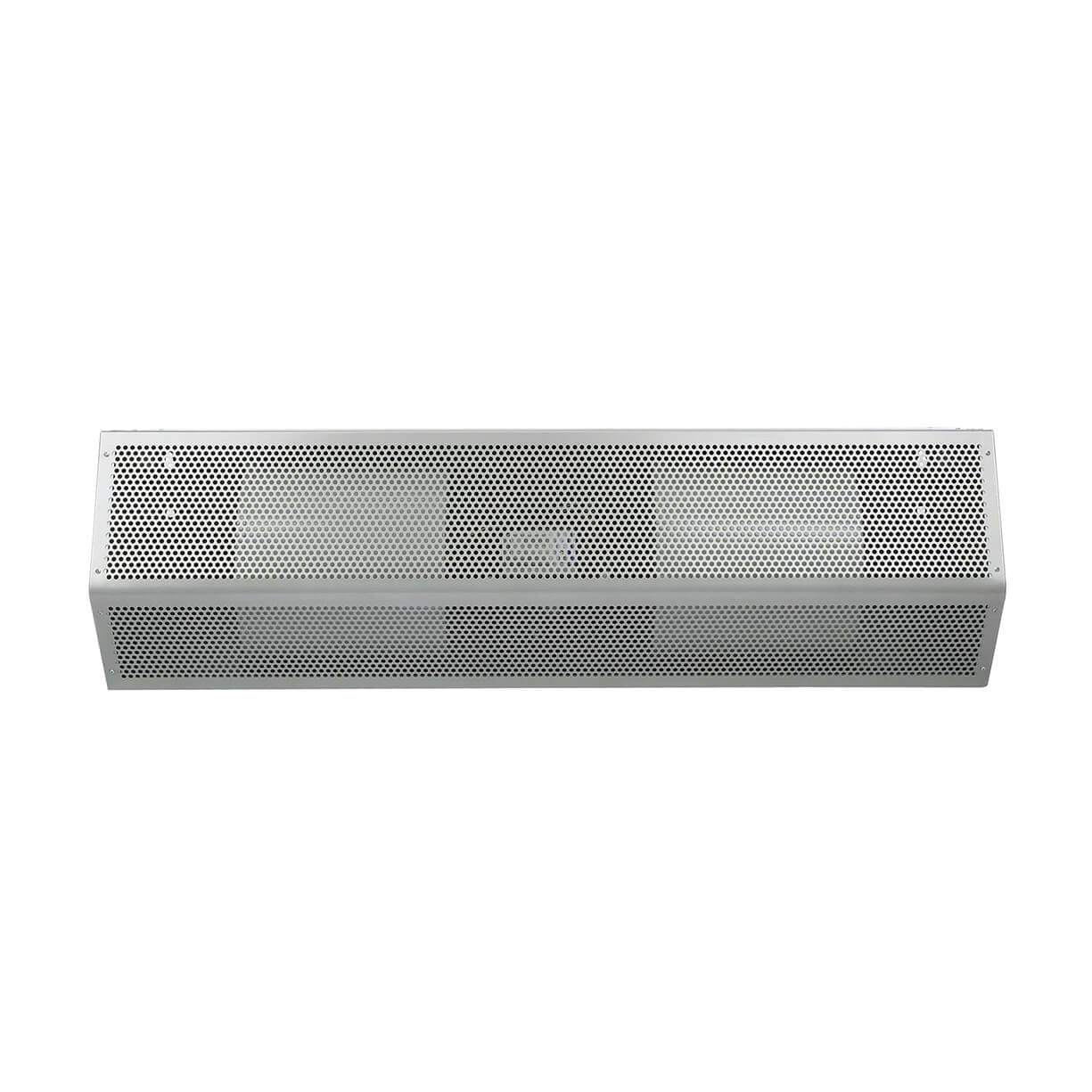

Mars HV2481ECBTS High Velocity Heated Air Curtain 48 inch

Product Description

The Mars HV2481ECBTS is a heated air curtain designed to provide an effective air barrier. This air curtain operates at 230 volts on a single phase and features a powerful one horsepower motor. It can handle wind loads up to fourteen feet high and repel insects up to twelve feet. The construction is robust, using durable metals with a corrosion-resistant Titanium Silver finish.

• Heated air curtain for environmental protection
• Motorized design for efficient performance
• Variety of installation heights suitable for different applications

Product Highlights

This model is suitable for uses in shipping and receiving doors, customer entrances, and cold storage rooms. The recommended installation height for exterior use is between ten and twelve feet, while interior installations can go up to fourteen feet.

Product Information

Standard Information

• Length: 48 inches
• Motor: 1 HP
• Voltage/Phase: 230 volts / single phase

Technical Specifications

• KW: 12
• Sound Level: 70 dBA
• Full Load Amps: 32
• Max Volume: 2447 CFM
• Power: 1360 watts
• Weight: 145 lbs
• Installation Height: 10 to 14 feet
