Product Description

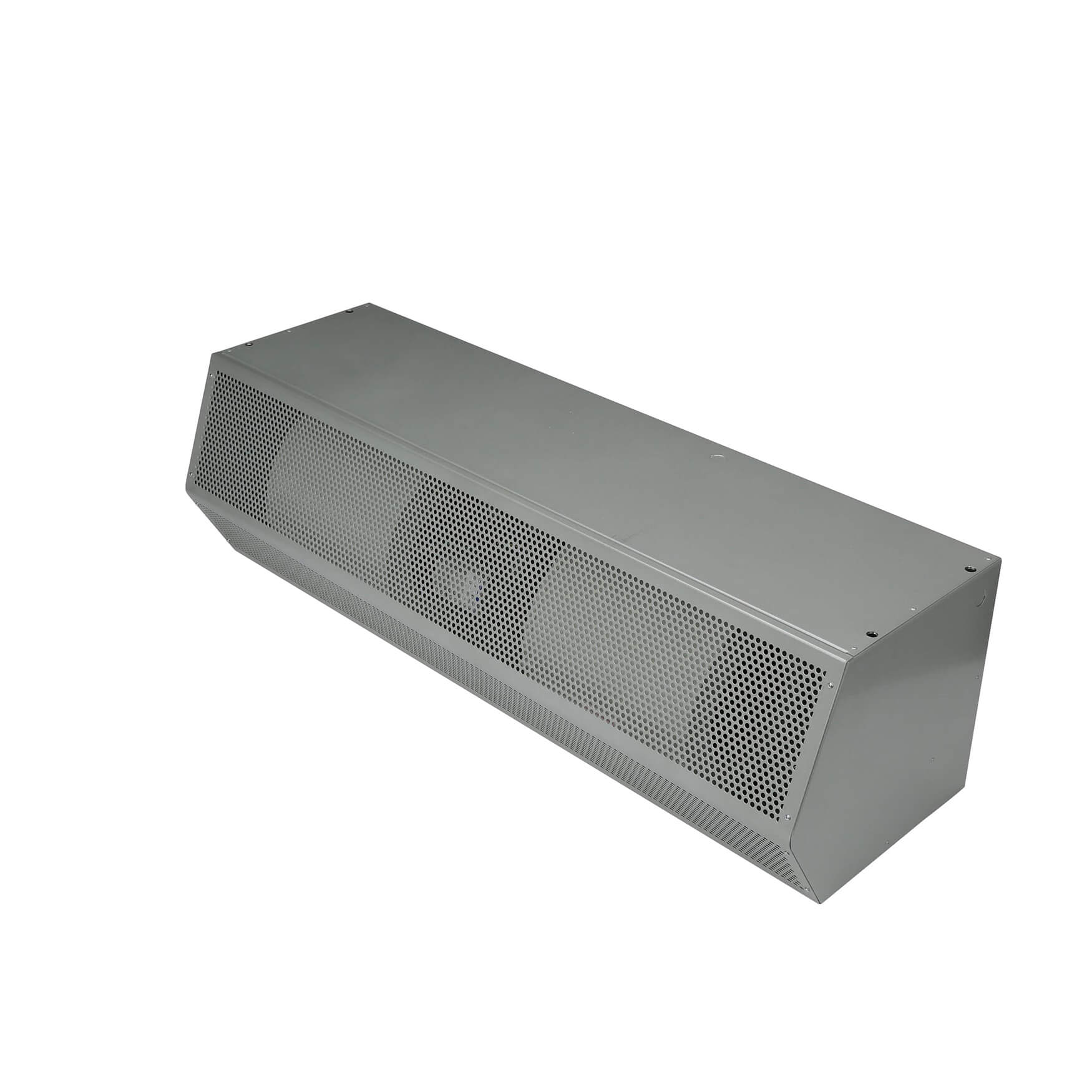

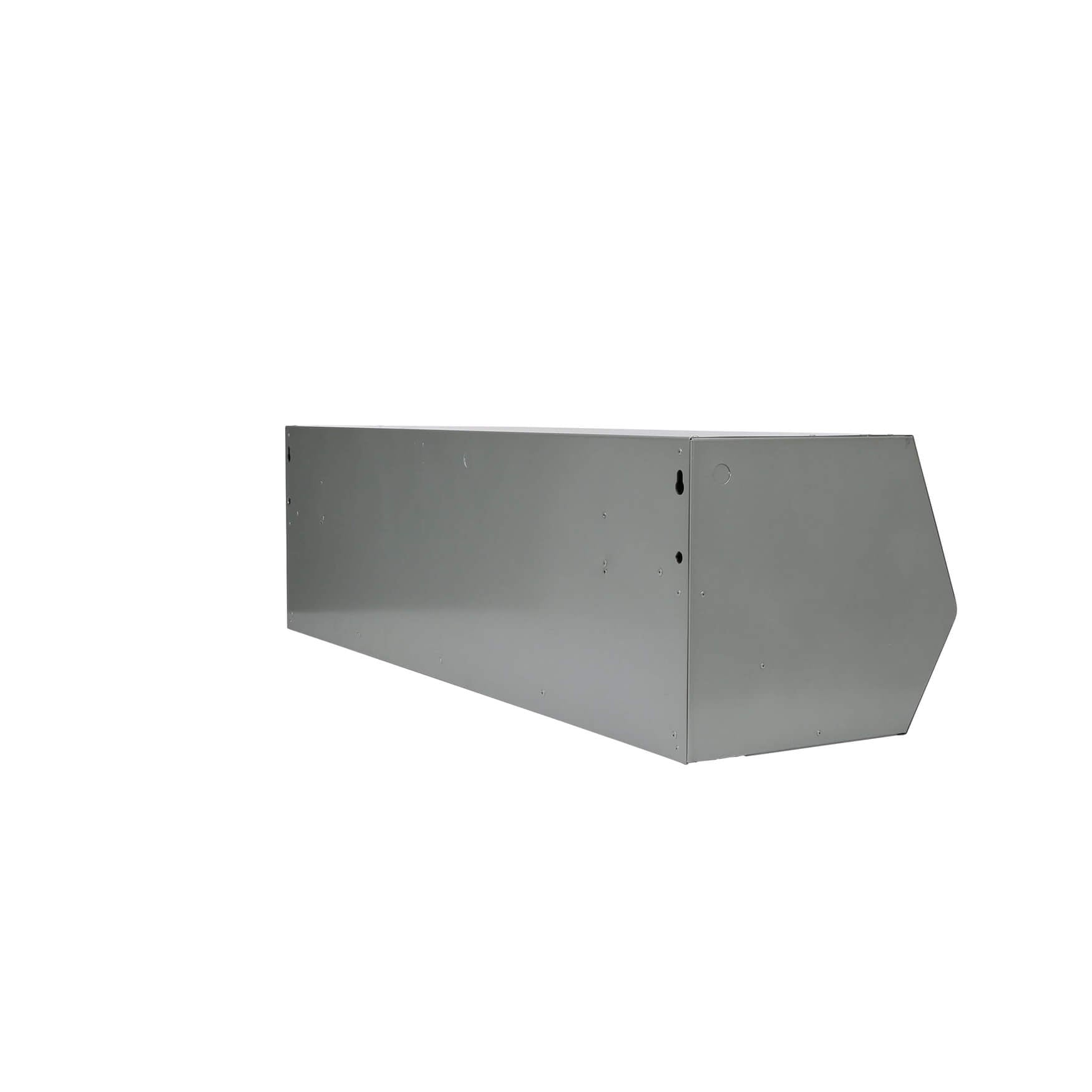

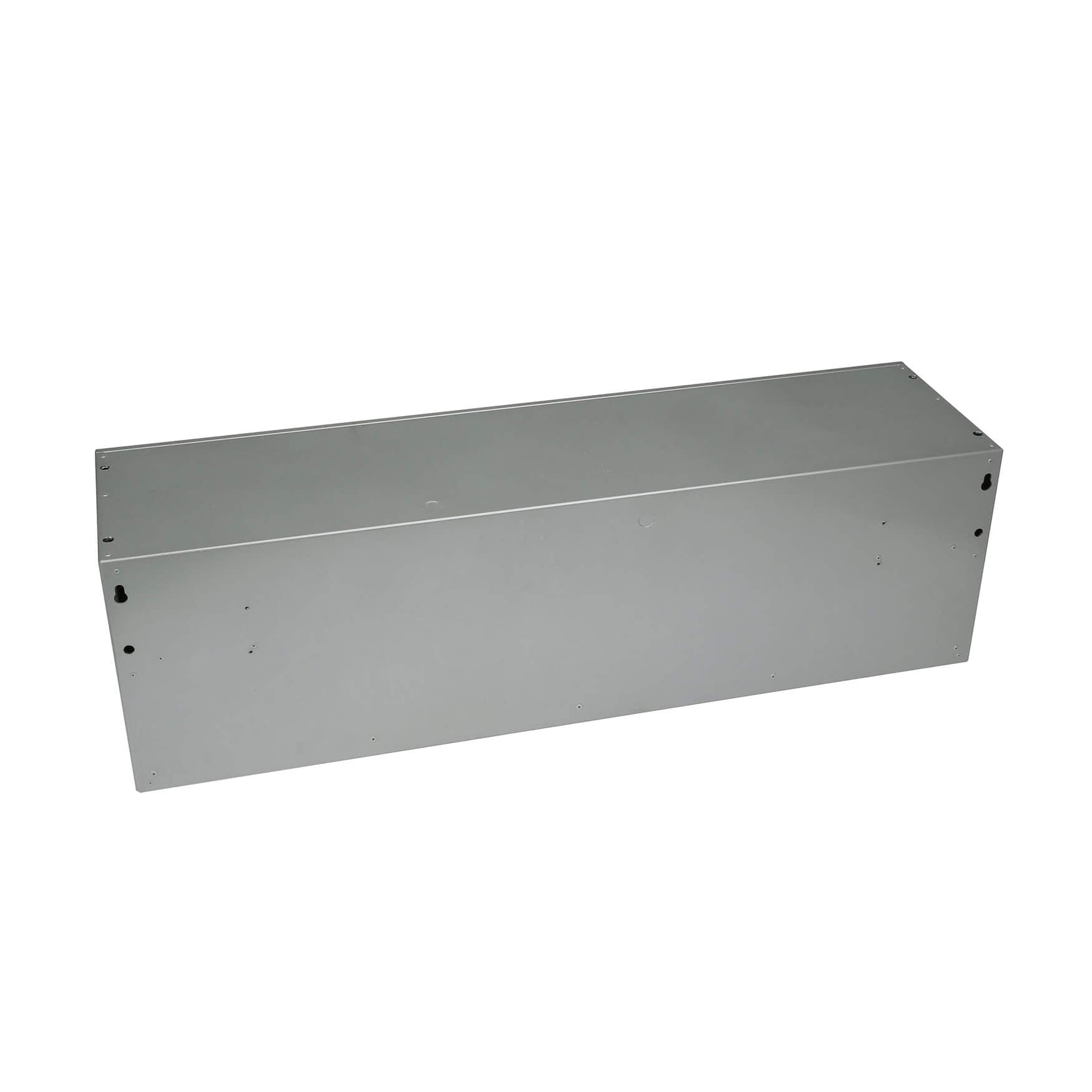

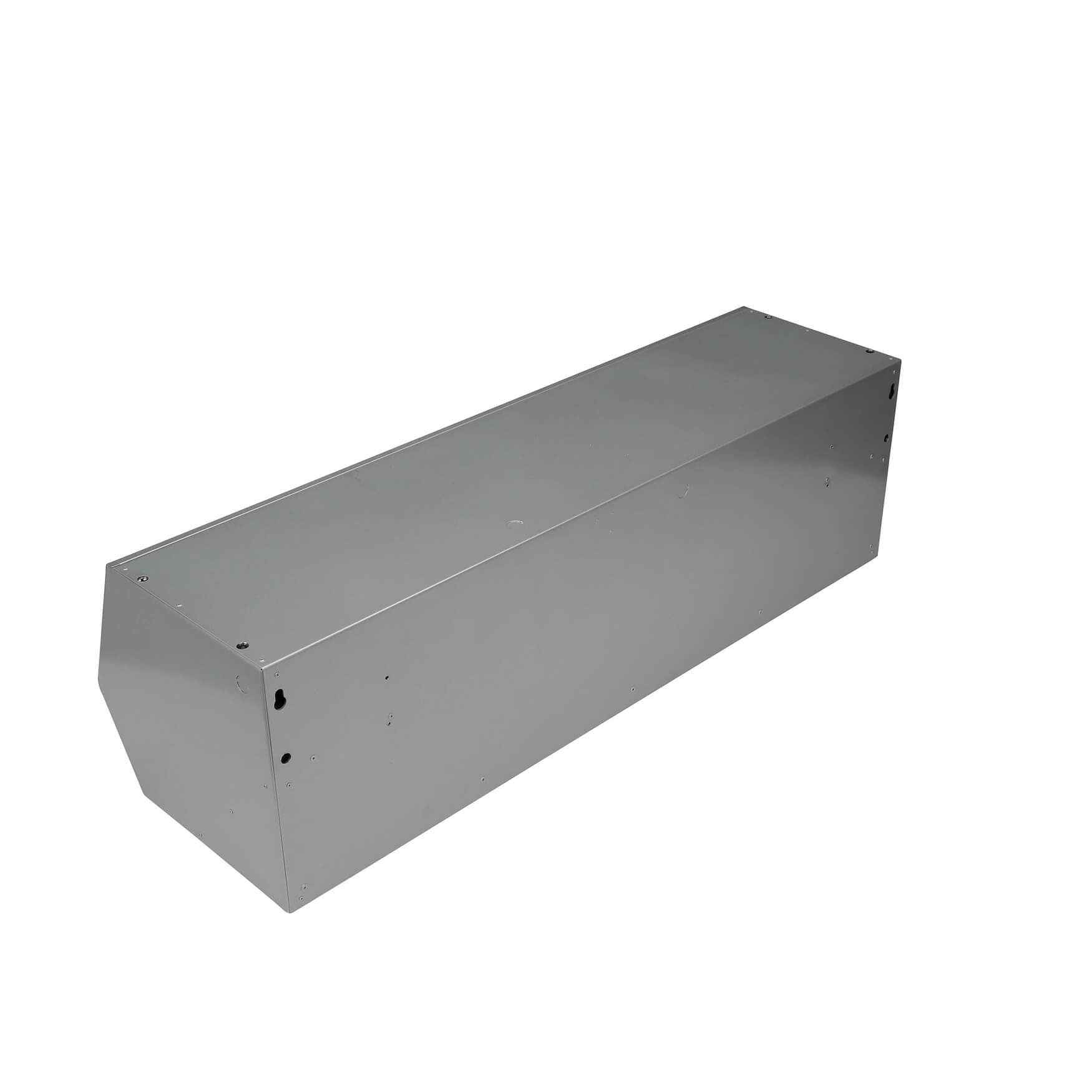

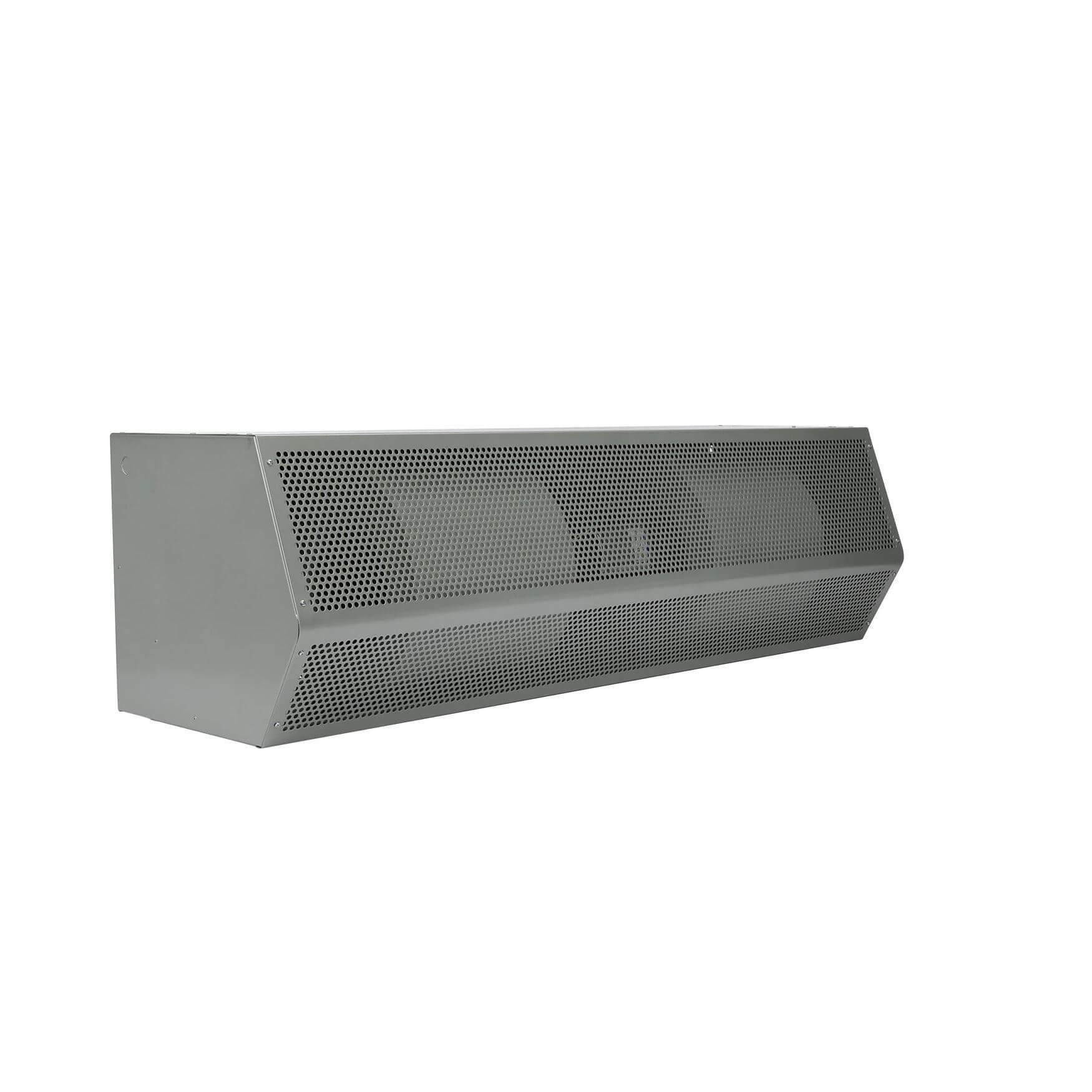

The MARS HV2120-3UG-TS air curtain is designed for multipurpose use with a 120-inch width. This unheated air curtain is suitable for frame openings up to 10 ft wide and can be mounted up to 14 ft for temperature control or 12 ft for insect control. It features a steel housing in silver.
- Maximum air velocity of 4,800 fpm
- Maximum air volume of 6,693 cfm
- Operates at 208/230V AC, 3-Phase power
Product Highlights
Ideal for industrial applications, this air curtain provides environmental separation and protection against wind loads and insects.
Product Information
Standard Information
-
Brand: MARS
-
Manufacturer Part Number: HV2120-3UG-TS
-
Country of Origin: United States
Technical Specifications
-
Hz: 60
-
Item: Air Curtain
-
Depth: 15 5/8 in
-
Phase: 3-Ph
-
Width: 120 in
-
Finish: Galvanized, Powder Coated
-
Height: 14 in
-
Series: HV2
-
Voltage: 208/230
-
Max. RPM: 1,750 RPM
-
Motor HP: 1 hp
-
Washdown: No
-
Frequency: 60 Hz
-
Max. Amps: 9.9/9.6
-
Standards: ETL
-
Drive Type: Direct Drive
-
Motor Type: 3 Phase
-
Nozzle Width: 120 in
-
Profile Type: Standard Profile
-
Housing Color: Silver
-
Maximum Speed: 1,750 RPM
-
Grille Material: Steel
-
Motor Enclosure: Totally Enclosed Air Over
-
Nominal Voltage: 208/230V AC
-
Air Curtain Item: Air Curtain
-
Air Curtain Type: Ambient Air
-
Number of Motors: 3
-
Heated/Not Heated: Not Heated
-
Nameplate Voltage: 208/230V AC
-
Power Consumption: 3,615 W
-
Air Curtain Finish: Galvanized
-
Air Curtain Heated: No
-
Maximum Air Volume: 6,693 cfm
-
Sound Level @ 10 ft: 75 dBA
-
Air Temperature Rise: Not Applicable
-
Max. Mounting Height: 12 ft
-
Maximum Air Velocity: 4,800 fpm
-
Sanitation Certified: No
-
Air Curtain Air Volume: 6693 cfm
-
For Frame Opening Width: 10 ft
-
Nameplate Voltage/Phase: 208/230V AC - 3 Ph
-
Nominal Voltage - Phase: 208/230V AC - 3 Phase
-
Air Curtain Air Velocity: 4800 fpm
-
Heater Power Consumption: Not Applicable
-
Ultraviolet Air Cleaning: No
-
Air Curtain dBA @ 10 Feet: 75
-
Motor Horsepower per Motor: 1 hp
-
Air Curtain Max. Door Width: 10 ft
-
Air Curtain Housing Material: Steel
-
Maximum Operating Temperature: Not Available
-
Minimum Operating Temperature: Not Available
-
Mounting Height for Insect Control: 12 ft
-
Country of Origin (subject to change): United States
-
Max. Mounting Height Environment/Insect: 14 ft / 12 ft
-
Mounting Height for Temperature Control: 14 ft
-
Size: 120"
-
Material: Galvanized Steel
-
Horse Power: 1
-
Max Volume (CFM): 6693
-
Environmental - Max Height (feet): 14
-
Insect - Max Height (feet): 12
-
Heating Mode: Unheated
-
Nozzle Width (inches): 120
-
Unit Width (inches): 120
-
Unit Height (inches): 14
-
Wind Stopping Capability (MPH): 12
-
Motors: 3
-
ETL sanitation certified to ANSI/NSF 37 standards: No
-
Air Flow Certified (AMCA): Yes
-
Voltage Rating: 208-230/3/60
-
Voltage Code: G
-
Amps: 9.9/9.6
-
Uniformity (%): 93
-
dBA: 75
-
cETLus and CSA compliant for safety: true
-
Compatible with: 208-230v 60Hz 3-Ph systems
-
Airflow: Unheated High Velocity
-
Openings: 120"–131"
-
Corrosion Resistance: Titanium silver powder coat
-
Manufacturer: Mars Air Systems
-
Product Condition: New
-
Max. Door/Window Height (ft.): 14
-
Max. Height Insect Block (ft.): 12
-
Heat: No
-
Horsepower: 1 (per motor)
-
Depth (in.): 15.625
-
Length (in.): 120
-
Certifications: ETL Listed, AMCA
-
Product Type: Unheated
