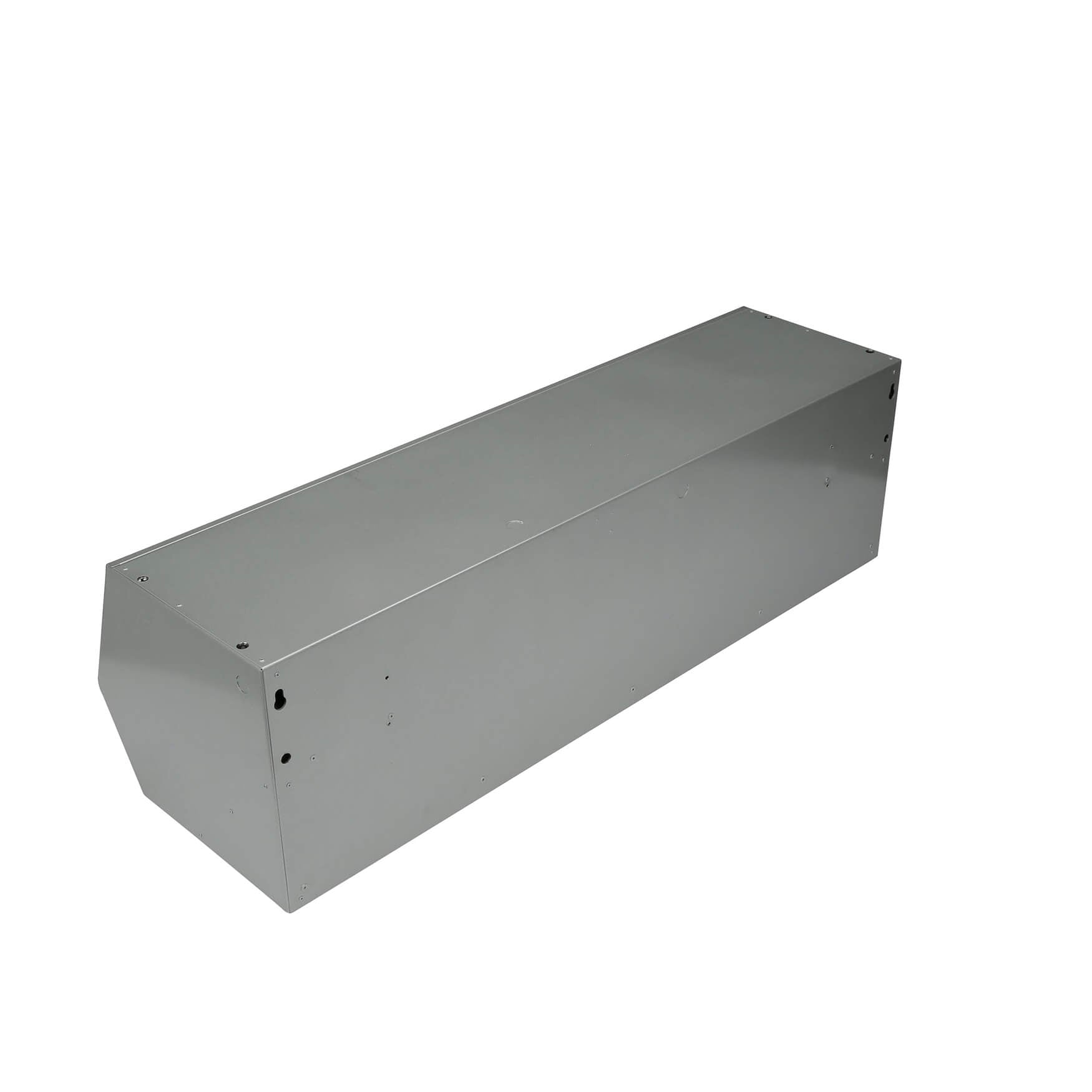

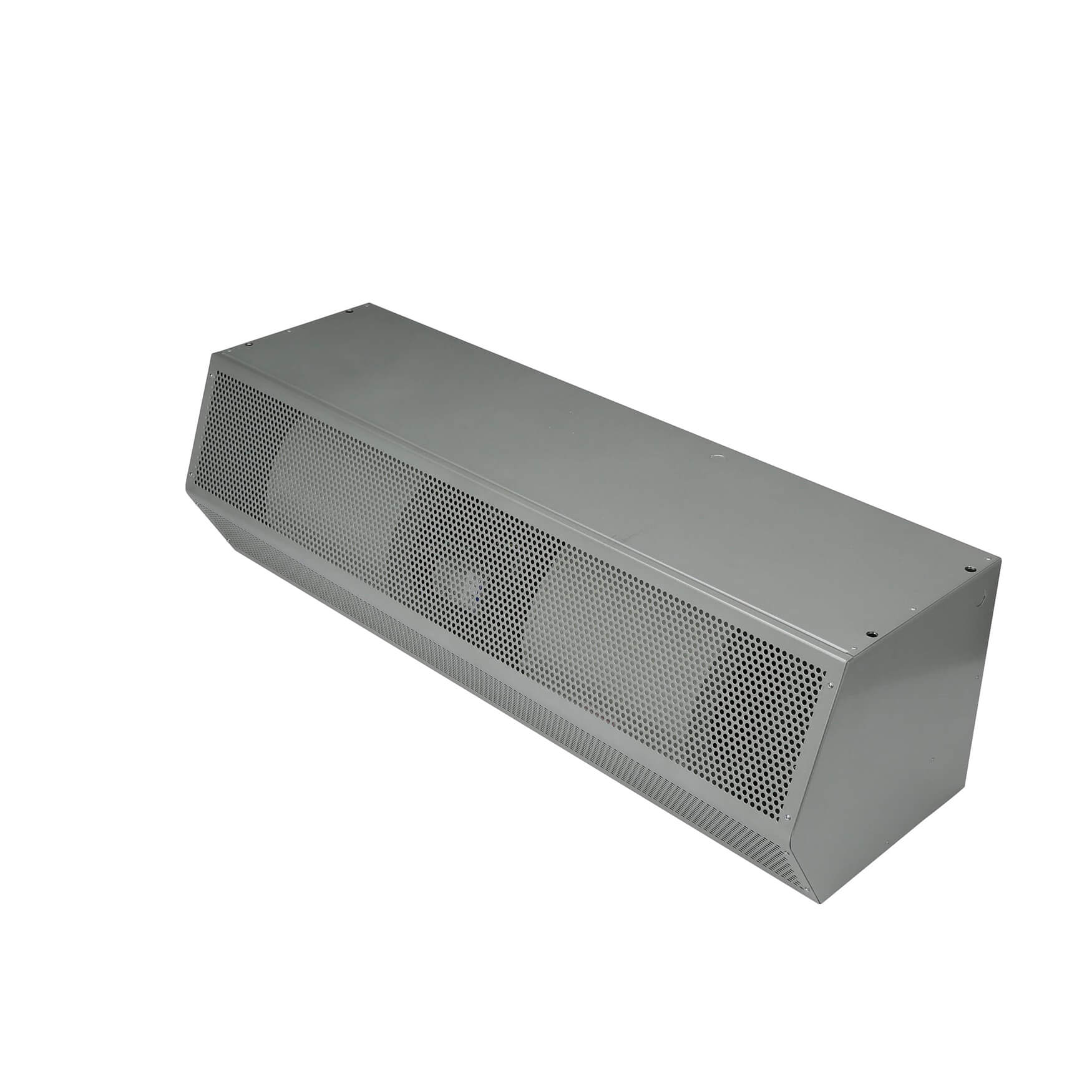

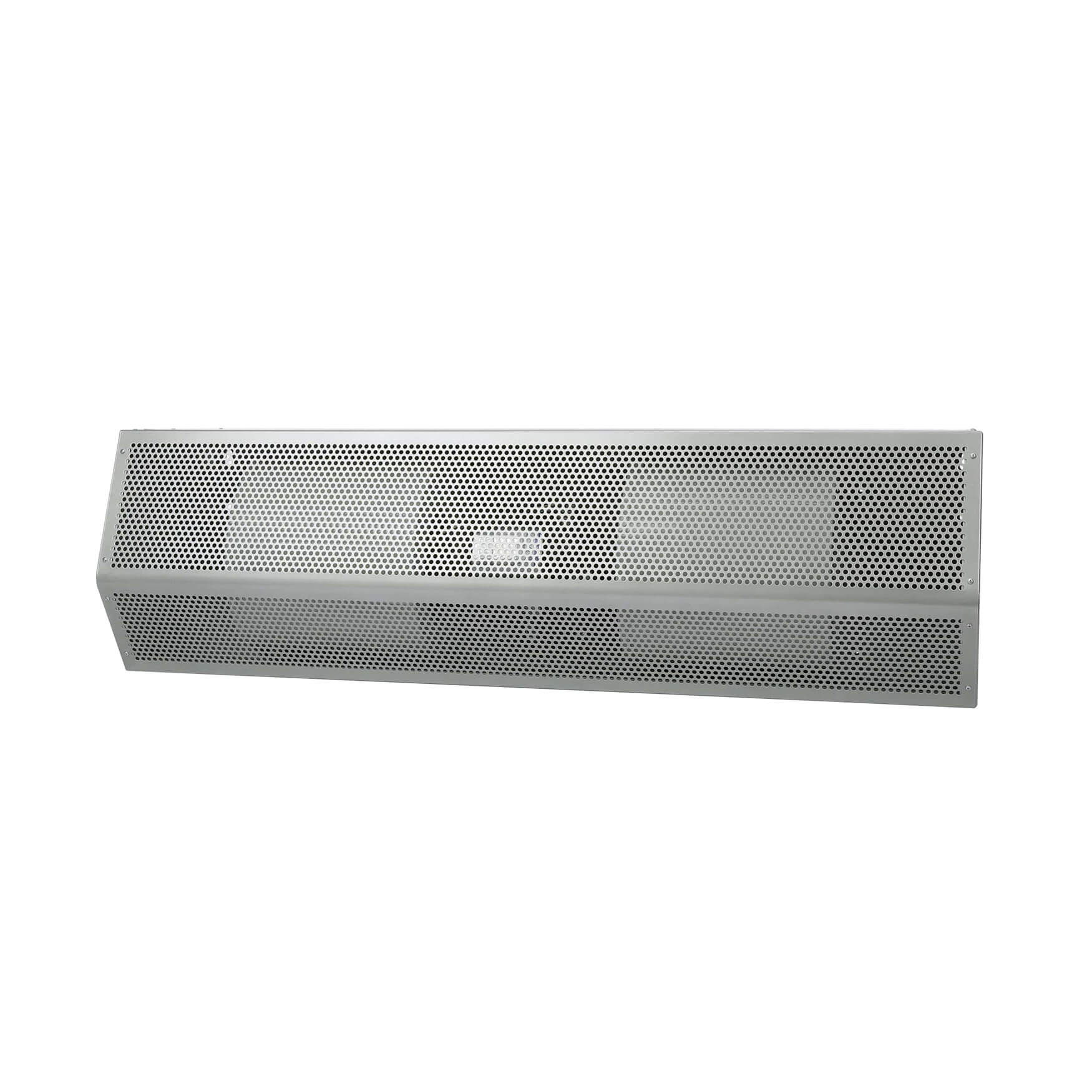

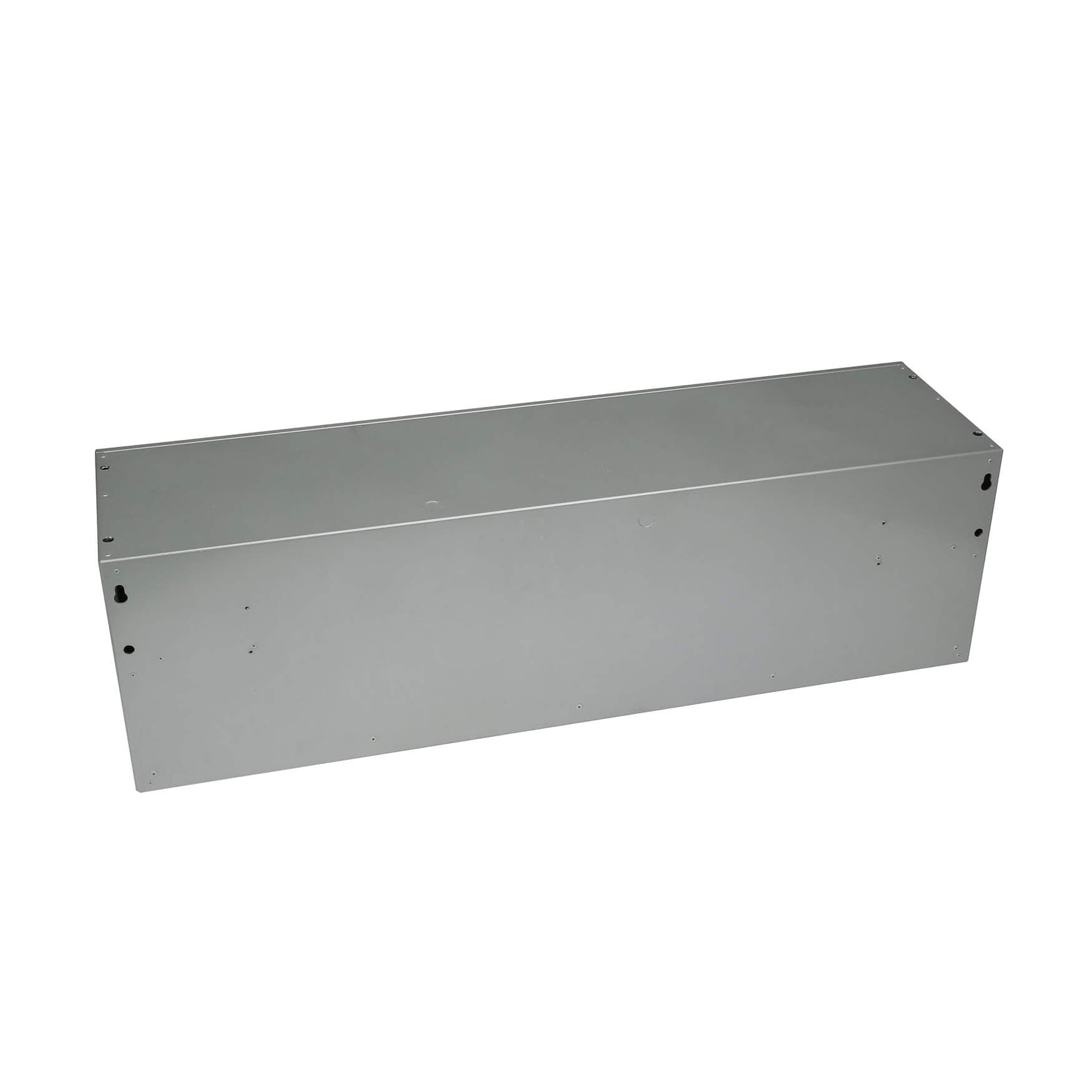

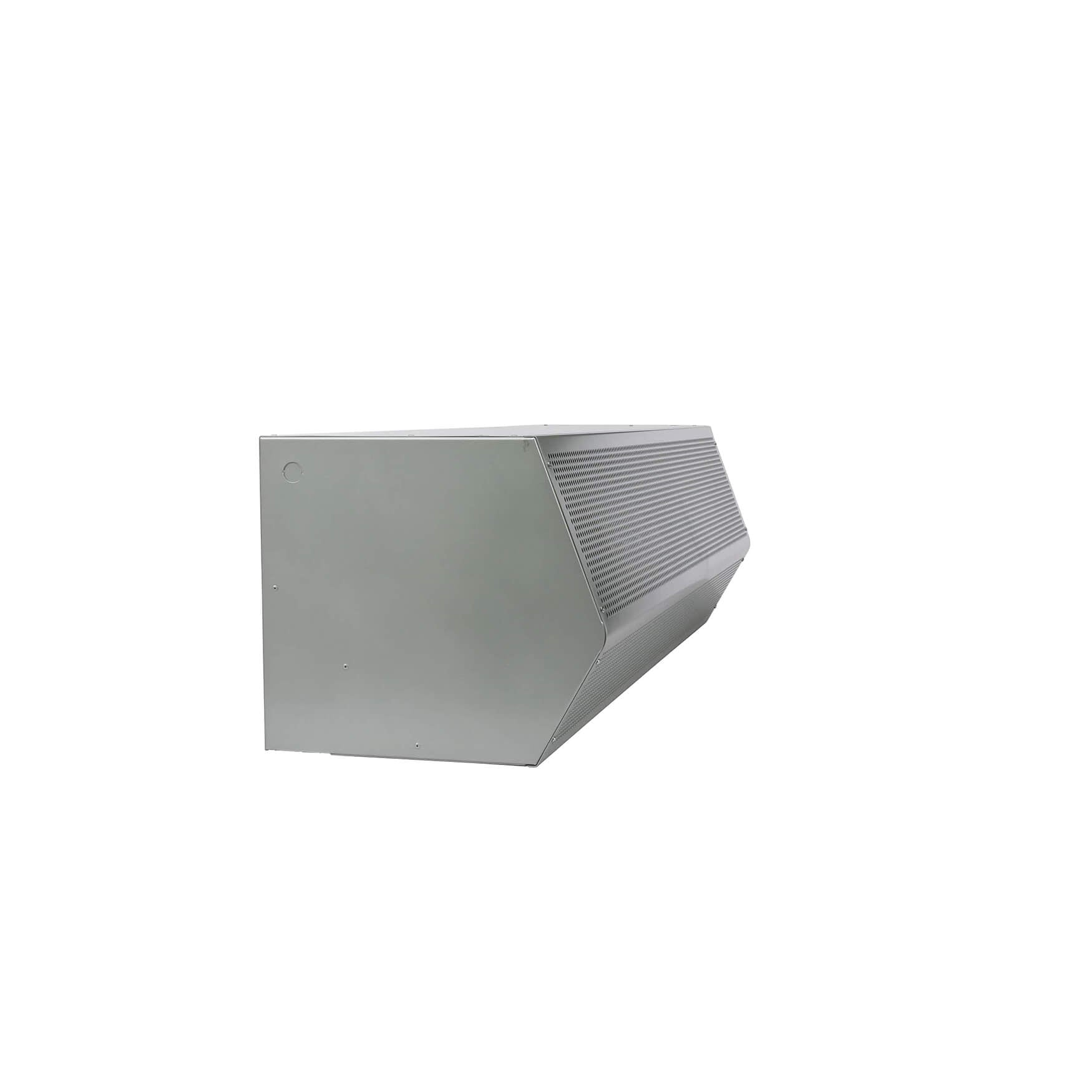

Mars HV2108-3UG-TS High Velocity 2 108 inches Unheated Air Curtain

Product Description

The MARS HV2108-3UG-TS High Velocity 2 (HV2) series features a 1 horsepower motor strong enough for many industrial applications. It is capable of separating environments and protecting openings with significant wind loads up to 12 ft. high. Designed for insect control up to 12 feet and temperature/environmental separation up to 14 feet.

• 1 horsepower motor(s)
• Strong enough for many industrial applications
• Capable of separating environments

Product Highlights

The HV2 series is used for multiple types of door openings and is available in unheated configurations. Great for restaurants, retail, manufacturing, and more.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: HV2108-3UG-TS
• Country of Origin: USA

Technical Specifications

• MPN: HV2108-3UG-TS
• Series: HV2 (High Velocity 2) Series
• Heating Mode: Unheated
• Nozzle Width (inches): 108
• Unit Width (inches): 108
• Unit Height (inches): 14
• Wind Stopping Capability (MPH): 12
• Horsepower: 1
• Motors: 3
• Air Flow Certified (AMCA): Yes
• Voltage Rating: 208-230/3/60
• Voltage Code: G
• Air Curtain Air Volume (CFM): 6177
• Amps: 9.9/9.6
• Uniformity (%): 90
• dBA: 75
• Manufacturer: Mars
• TYPE: Un-heated
• HORSEPOWER PER MOTOR: 1
• Finish: Titanium Silver Powder Coat
• Phase: 3-Ph
• Hertz: 60
• Voltage: 208-230v
• Door Width (Inches): 108
• Door Height: 10' - 12'
• Number of Poles: 3
• Max Volume: 12000
• Max Velocity: 5000
• Frequency (Hertz): 60
• AMCA Uniformity: 92
• Sound dBA: 75
• Max. Door/Window Height (ft.): 14
• Max. Height Insect Block (ft.): 12
• Heat: No
• Length (in.): 108
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
• Full load amps: 9.9 A
• Average velocity: 2389 fpm
• Volume: 5376 cfm
• Environmental - Max Height (feet): 14
• Insect - Max Height (feet): 12
• ETL sanitation certified to ANSI/NSF 37 standards: No
