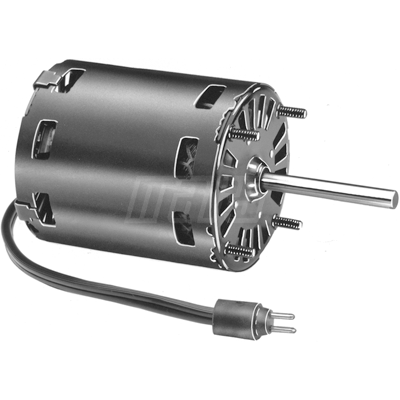

Mars D1124 Motor 1/20hp 115v

Product Description

The MARS D1124 motor is a 1/20 HP, 115V motor designed for refrigeration applications. It operates at 1550 RPM and draws 2.1 amps. This shaded pole motor features clockwise rotation and is thermally protected. It is open ventilated with a sleeve bearing.

• 1/20 HP power rating
• Operates at 115 VAC
• Rotation is Clockwise

Product Highlights

The MARS D1124 is suitable for refrigeration applications. It is a 115V, 1/20 HP motor with a speed of 1550 RPM.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: D1124

Technical Specifications

• Power Rating: 1/20 HP
• Voltage Rating: 115 Volt AC
• Frequency Rating: 60 Hertz
• Motor FLA: 2.1 Amp
• Speed Rating: 1550 RPM
• Application: Refrigeration
• Motor Type: Shaded Pole
• Shaft Diameter: 5/16 Inch
• Rotation Direction: Clockwise
• Brand: MARS
• Bearing Type: Sleeve
• Number of Speeds: 1
• Motor RPM: 1550
• Shaft Length: 3 in
• UL Listed: False
• UL Recognized: False
• Volts: 115
• HP: 1/20
• Amps: 2.1
• Rotation: CW Rotation Shaft End
• Protection: Thermally protected
• Certification: CSA or ULC certified
• Shaft: 5/16" diameter by 3" length
• Pole: Shaded Pole
• Mount: Band Mount
• Speed: Single Speed
• A Dimension (motor length): 3-Inch
• Motor Diameter: 3 3/8-Inch
• Shaft Dimension: 5/16 by 3-Inch
• Bearing: sleeve bearing
• Enclosure Type: OV
• Frequency: 60Hz
• Full Load Amps: 2.1
• Ambient: 40 °C
