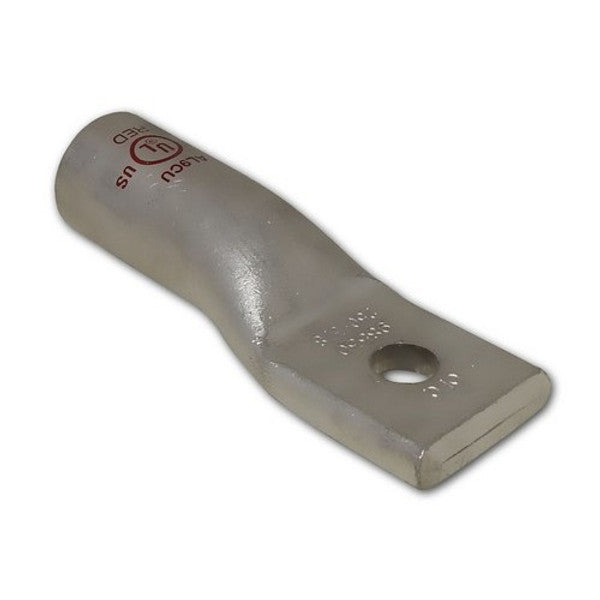

MARS 93070 Aluminum Long Barrel 1 Hole Compression Lug 300 MCM 1/2 Stud

Product Description

The MARS 93070 is an aluminum long barrel, one-hole compression lug. It is designed for use with both copper and aluminum cables. This lug is dual-rated as AL9CU, ensuring compatibility with various conductor types.

• AL9CU dual-rated for aluminum and copper conductors
• Oxide inhibitor coating for protection
• Constructed from high-conductivity seamless aluminum

Product Highlights

The lug features uniform bright electro-tin plating, which offers corrosion resistance and enhanced conductivity. It includes a single mounting hole for easy installation. Color coding aids in identification, while a die index marks crimp locations for convenience.

Product Information

Standard Information

• MPN: 93070
• Material: Aluminum

Technical Specifications

• Cable Size: 300 MCM
• Stud Size: 1/2
• Number of Holes: 1
• AL9CU Dual Rated: Yes
• UL486B Listed: Yes
• cULus Listed: Yes
• Voltage: Listed for 35KV when properly installed
